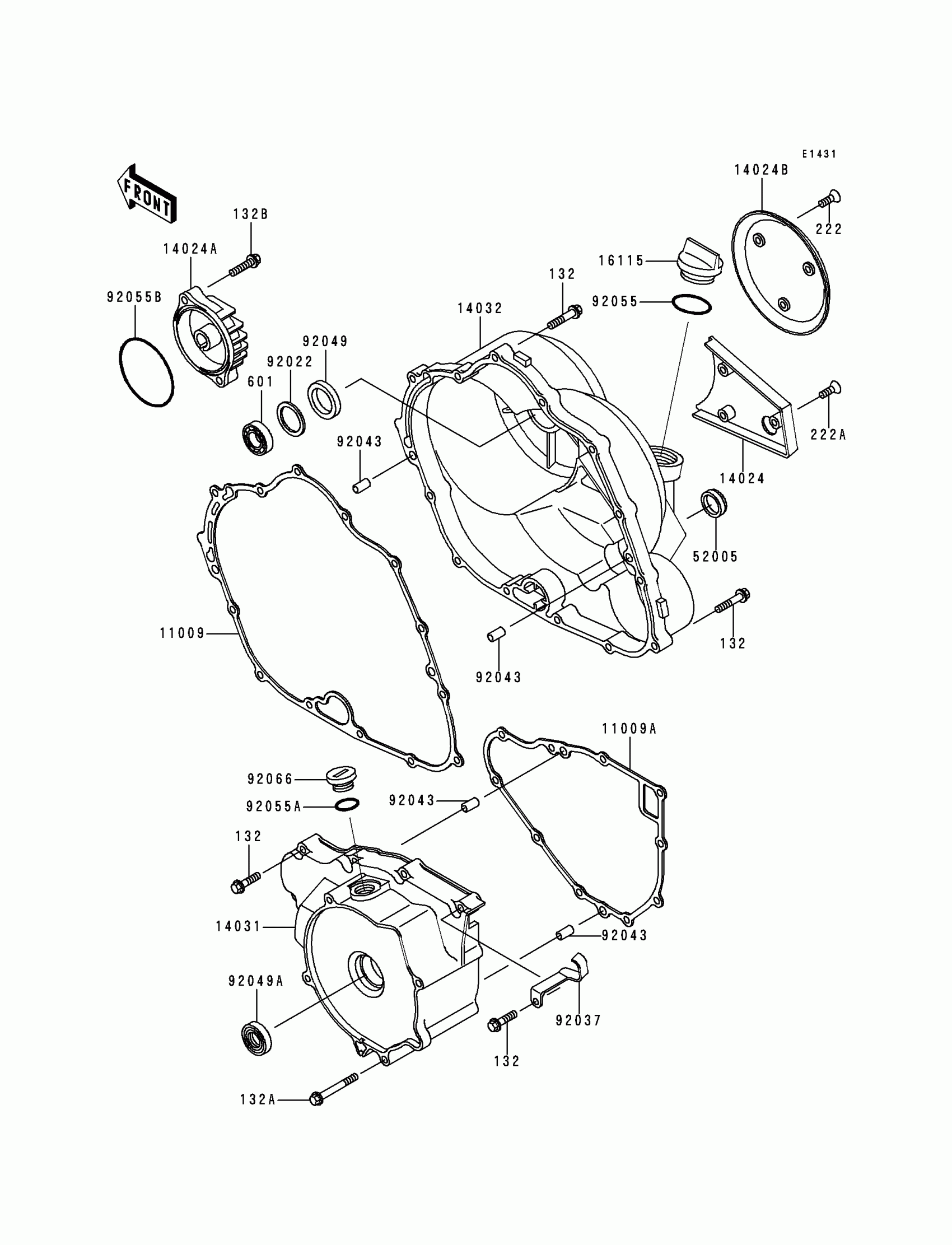

Kawasaki Bayou 300 Engine Cover Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132A

BOLT-FLANGED-SMALL

132J0680

Unavailable

132B

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

222

SCREW-CSK-RD-CROS

222C0512

Unavailable

222A

SCREW-CSK-RD-CROS

222C0518

$4.15

601

BEARING-BALL,#6202C3

601B6202

$6.86

11009

GASKET,CLUTCH COVER

11009-1518

Unavailable

11009A

GASKET,GENRATOR COVER

11009-1519

Unavailable

14024

COVER,RELEASE ADJUSTER

14024-1061

Unavailable

14024A

COVER,OIL FILTER

14024-1062

$57.24

14024B

COVER

14025-1807

$39.62

14031

COVER-GENERATOR

14031-1214

Unavailable

14032

COVER-CLUTCH

14032-1197

Unavailable

16115

CAP-OIL FILLER

16115-1009

$11.32

52005

GAUGE,OIL LEVEL

52005-1009

$14.45

92022

WASHER,25.3X33X1

92022-1109

$4.72

92037

CLAMP

92037-1872

$7.49

92043

PIN,6.2X8X14

92043-1263

$0.49

92049

SEAL-OIL,SCY 15X30X7

92049-1158

$23.14

92049A

SEAL-OIL,TC25356

92049-1317

$11.06

92055

RING-O,31.5X2.6

92055-049

$3.43

92055A

RING-O,20X2

92055-1146

$6.82

92055B

RING-O,63.6X2.4

92055-1433

$8.04

92066

PLUG,COVER

92066-1163

$11.67
