2005 Kawasaki ZZR600 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

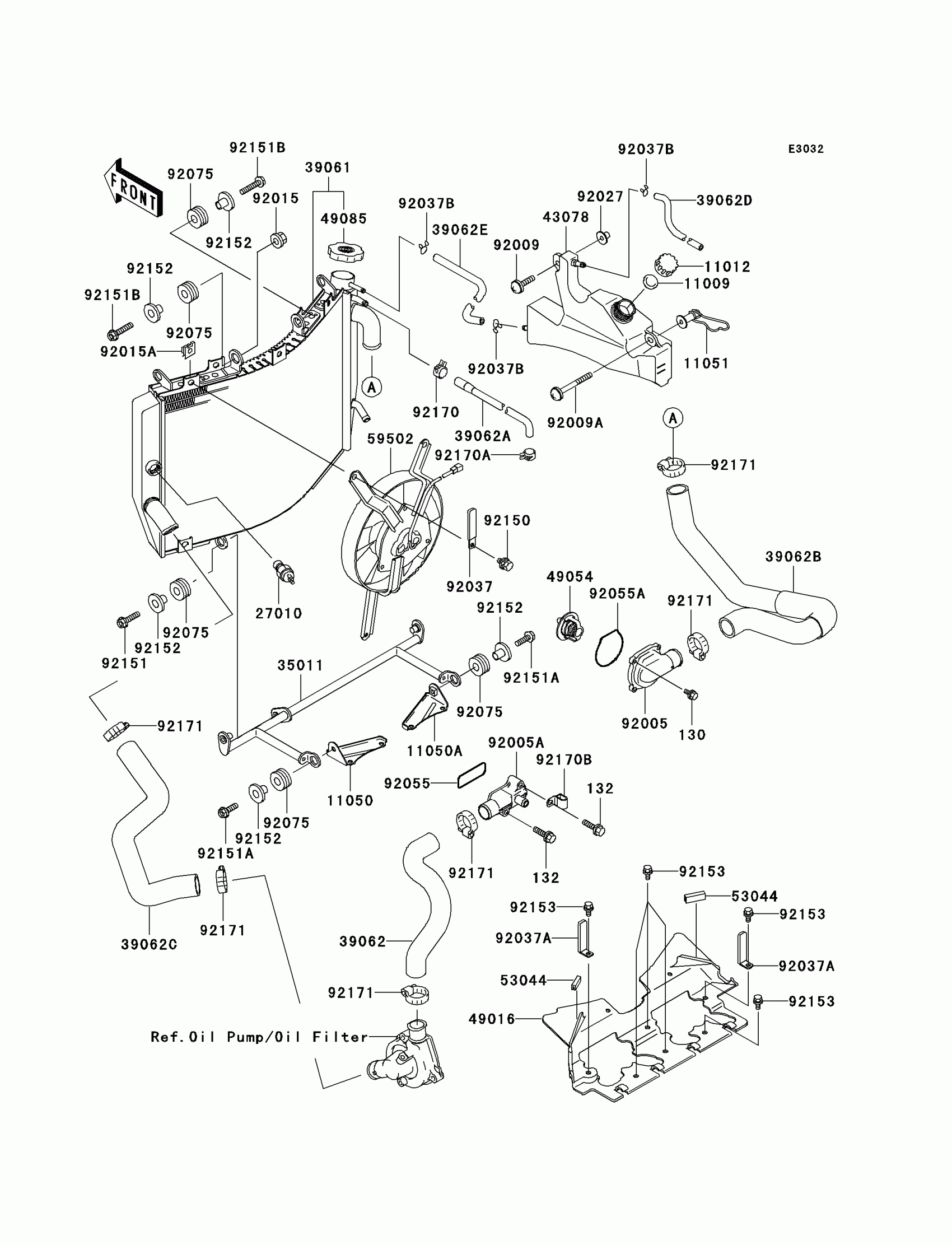

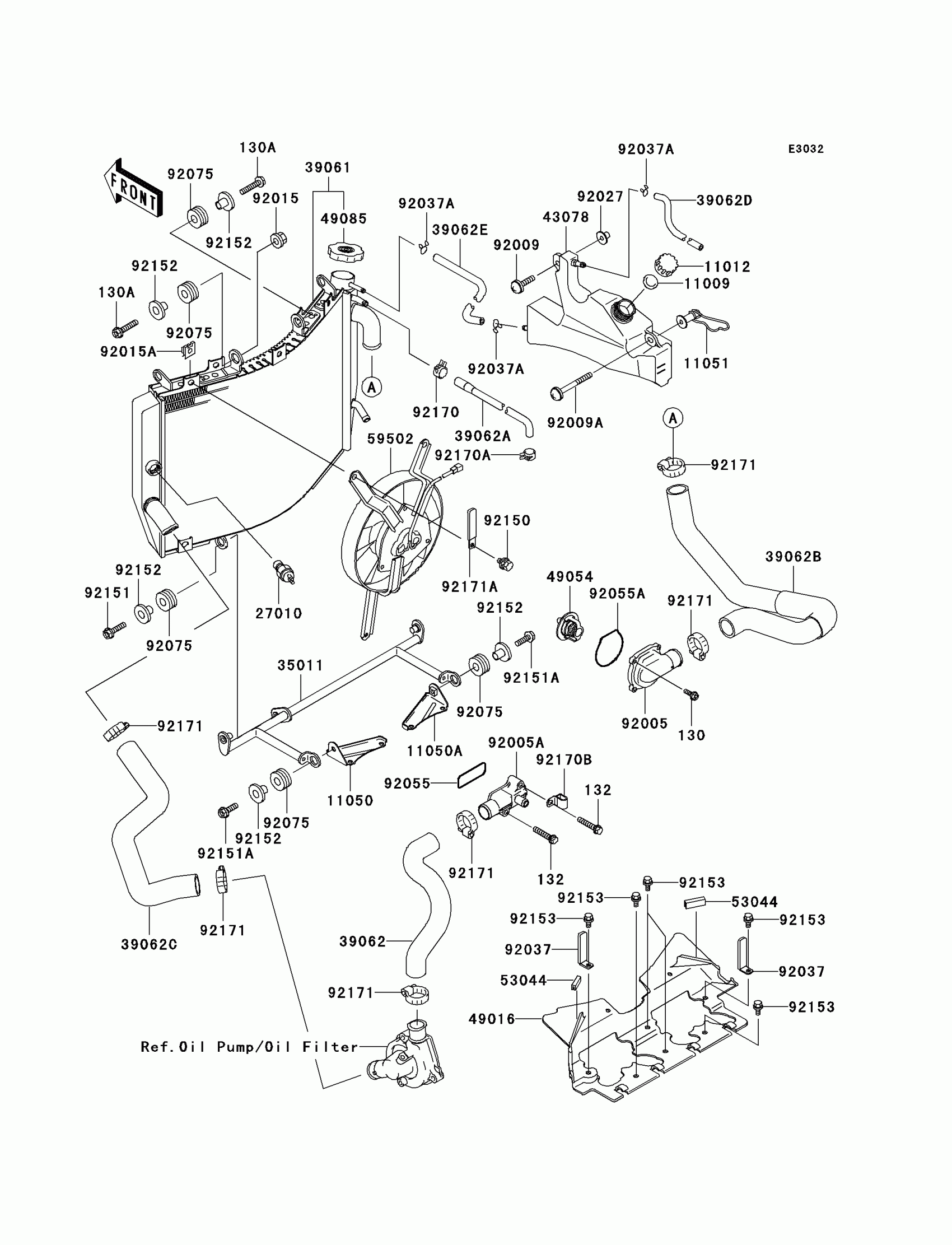

2005 Kawasaki ZZR600 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11050

BRACKET

11050-1643

1

$13.27

In stock

11050A

BRACKET

11050-1644

1

$13.27

In stock

11051

BRACKET

11051-1864

1

$19.85

In stock

27010

SWITCH,THERMOSTAT

27010-1304

1

$91.29

In stock

35011

STAY

35011-1903

1

$137.72

In stock

39061

RADIATOR-ASSY

39061-1286

1
Out of stock

39062

1

$44.86

In stock

39062A

HOSE-COOLING

39062-1742

1

$12.42

In stock

39062B

1

$77.66

In stock

39062C

1

$51.53

In stock

39062D

HOSE-COOLING

39062-1780

1

$23.58

In stock

39062E

1

$17.86

In stock

43078

RESERVOIR

43078-1162

1

$27.81

In stock

49016

COVER-SEAL

49016-1206

1

$24.29

In stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1067

1

$48.74

In stock

53044

TRIM,L=40

53044-1174

1

$3.85

In stock

59502

FAN-ASSY

59502-1128

1
Out of stock

92005

FITTING,THERMO CAP

92005-1275

1
Out of stock

92005A

FITTING,CYLINDER

92005-1343

1
Out of stock

92009

SCREW,6X25

92009-1465

1
Out of stock

92009A

SCREW,6X56

92009-1829

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT

92015-1487

1

$3.80

In stock

92027

1

$4.37

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,HARNESS

92037-1316

1

$2.15

In stock

92037B

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O

92055-1402

1

$6.24

In stock

92055A

1

$7.20

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92151

BOLT,FLANGED,6X25

92151-1225

1

$2.03

In stock

92151A

BOLT,FLANGED,6X20

92151-1226

1

$2.03

In stock

92151B

BOLT,FLANGED,M6X30

92151-1228

1

$2.34

In stock

92152

COLLAR

92152-1074

1

$4.93

In stock

92153

BOLT,FLANGED,M6X12

92153-1174

1
Out of stock

130

BOLT-FLANGED,5X14

130J0514

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

92170

CLAMP

92170-1167

1

$5.42

In stock

92170A

CLAMP

92170-1493

1

$3.97

In stock

92170B

CLAMP

92170-1577

1

$3.03

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock
