2005 Kawasaki ZZR600 (Canada Only) Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

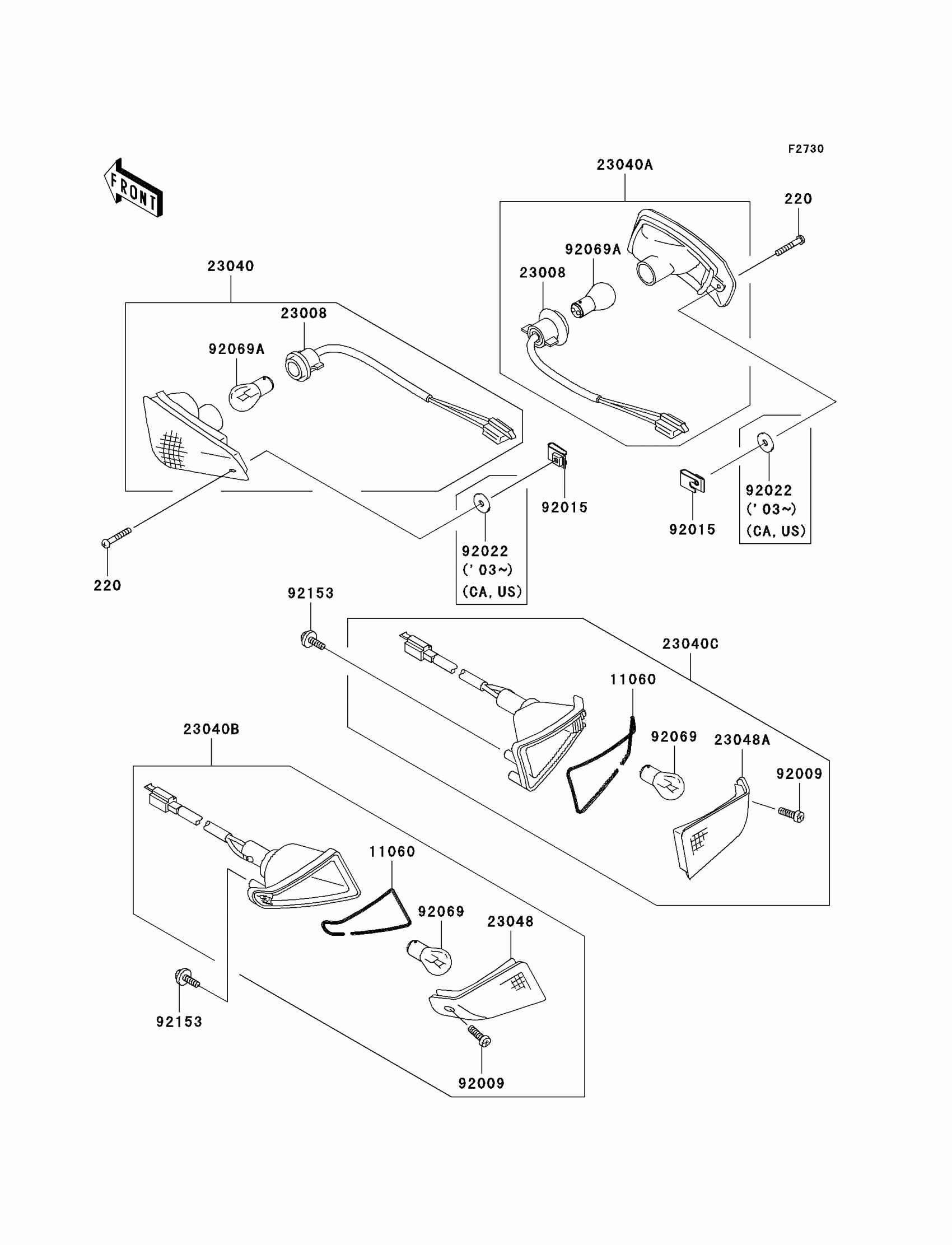

2005 Kawasaki ZZR600 (Canada Only) Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,4X25

220D0425

1
Out of stock

11060

GASKET,SIGNAL LAMP LENS

11060-1322

1
Out of stock

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-1514

1
Out of stock

23040

LAMP-SIGNAL,FR,LH

23040-1237

1
Out of stock

23040A

LAMP-SIGNAL,FR,RH

23040-1238

1
Out of stock

23040B

LAMP-SIGNAL,RR,LH

23040-1243

1
Out of stock

23040C

LAMP-SIGNAL,RR,RH

23040-1244

1
Out of stock

23048

LENS-SIGNAL LAMP,RR,LH

23048-1144

1
Out of stock

23048A

LENS-SIGNAL LAMP,RR,RH

23048-1145

1
Out of stock

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

1
Out of stock

92015

NUT,4MM

92015-1834

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92153

BOLT,TAPPING,5X16

92153-0011

1
Out of stock
