2005 Kawasaki ZZR600 (Canada Only) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

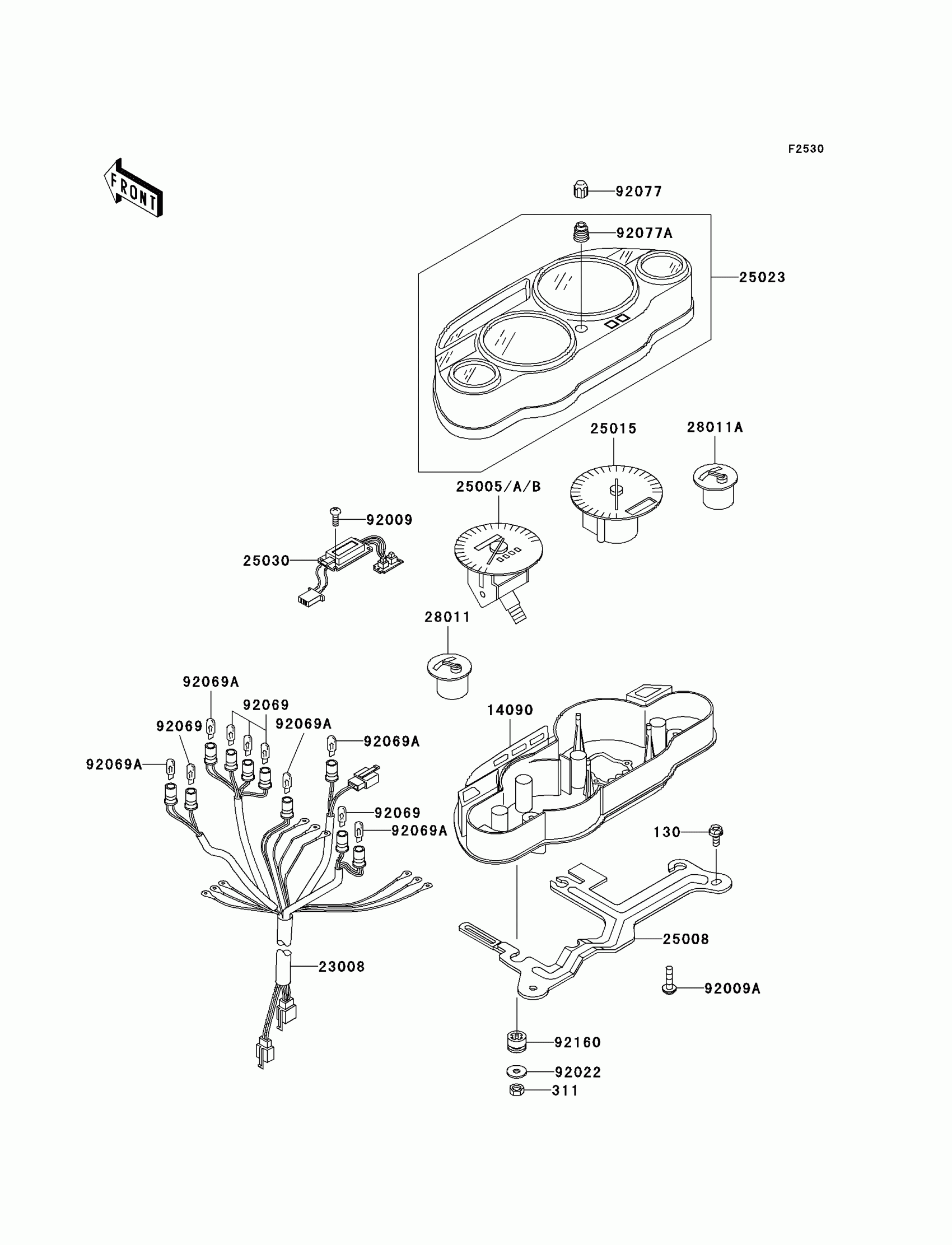

2005 Kawasaki ZZR600 (Canada Only) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

14090

COVER,METER HOUSING

14090-1554

1

$124.15

In stock

23008

SOCKET-ASSY,METER

23008-1543

1

$142.35

In stock

25005A

SPEEDOMETER,KPH

25005-1714

1
Out of stock

25008

BRACKET-METER

25008-1195

1

$86.76

In stock

25015

1

$421.51

In stock

25023

1

$152.26

In stock

25030

CLOCK,DIGITAL

25030-1003

1

$517.43

In stock

28011

METER,FUEL

28011-1131

1

$128.17

In stock

28011A

METER,TEMP

28011-1132

1

$128.17

In stock

92009

SCREW,TAPPING,3X12

92009-1255

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92022

WASHER,6.2X18X1.2

92022-1369

1

$3.56

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92077

KNOB,TRIP RESET

92077-1094

1

$8.80

In stock

92077A

KNOB,TRIP RESET

92077-1112

1

$8.88

In stock

92160

DAMPER

92160-1436

1

$8.97

In stock
