2005 Kawasaki ZZR600 (Canada Only) Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

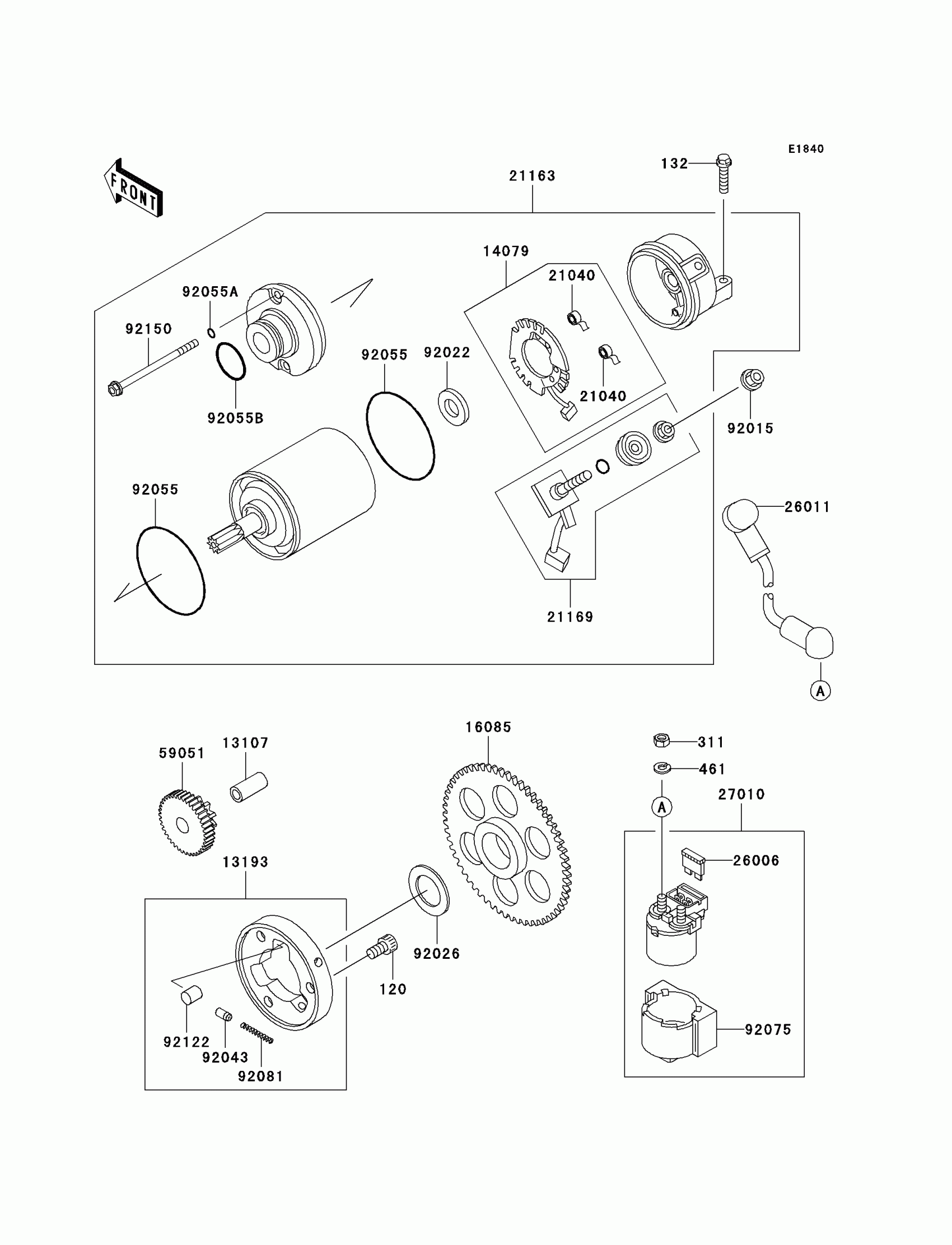

2005 Kawasaki ZZR600 (Canada Only) Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X14

120P0814

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132H0625

1
Out of stock

311

NUT-HEX

311H0600

1
Out of stock

461

WASHER-SPRING

461L0600

1
Out of stock

13107

SHAFT,7.8X12X26.5

13107-1176

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1002

1
Out of stock

14079

HOLDER-ASSY,STARTER

14079-0009

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1224

1
Out of stock

21040

SPRING-BRUSH

21040-0001

1
Out of stock

21163

STARTER-ELECTRIC

21163-0014

1
Out of stock

21169

TERMINAL,STARTER

21169-1058

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1576

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

59051

GEAR-SPUR,IDLE

59051-1232

1
Out of stock

92015

NUT

92015-1623

1
Out of stock

92022

WASHER

92022-2200

1
Out of stock

92026

SPACER,25.5X38X1.0

92026-1536

1
Out of stock

92043

PIN

92043-132

1
Out of stock

92055

RING-O,62MM

92055-1260

1
Out of stock

92055A

RING-O,4.5MM

92055-1261

1
Out of stock

92055B

RING-O,24.4X3.1

92055-1262

1
Out of stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92081

SPRING,COIL

92081-159

1
Out of stock

92122

ROLLER

92122-006

1
Out of stock

92150

BOLT

92150-1237

1
Out of stock
