2005 Kawasaki ZZR600 (Canada Only) Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

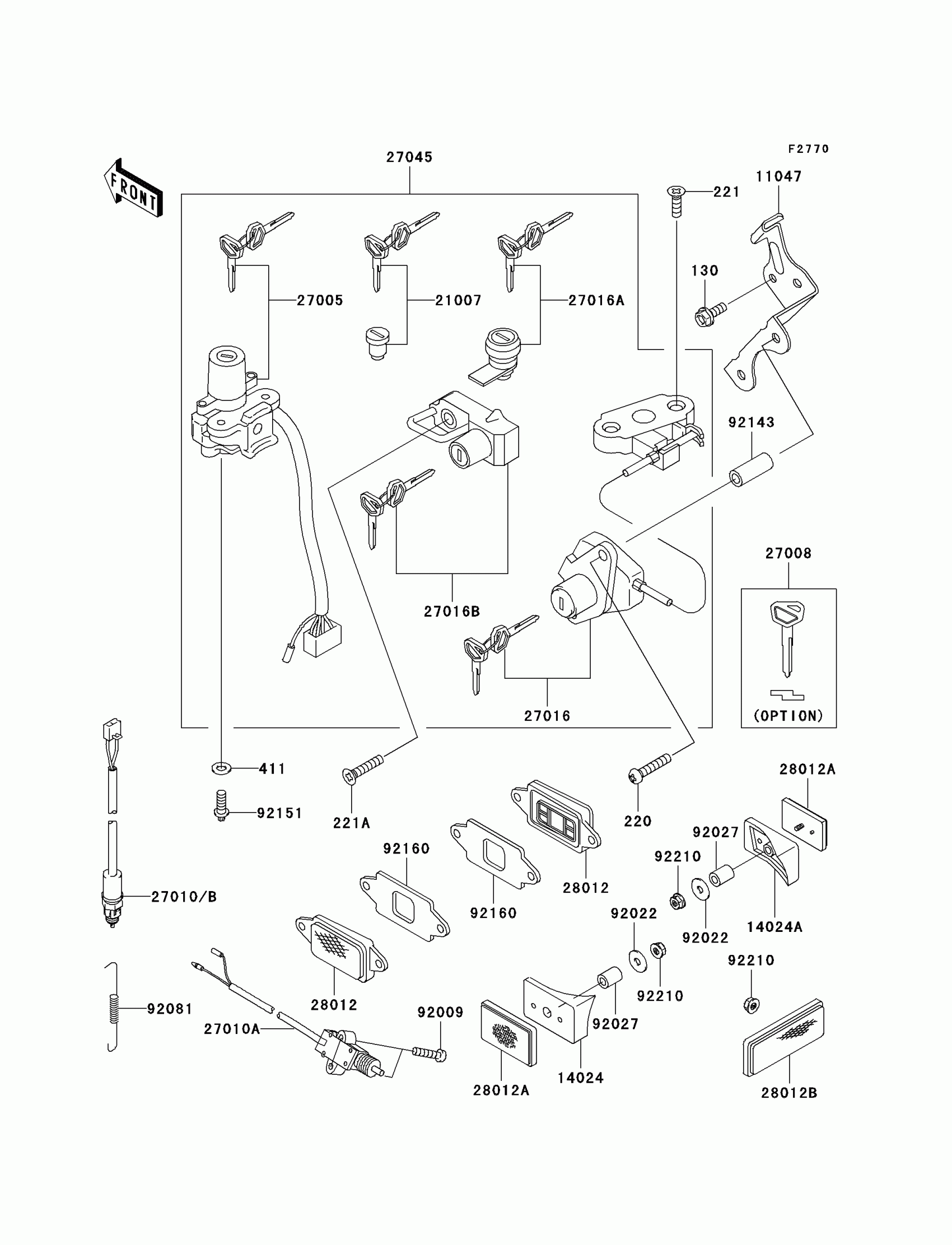

2005 Kawasaki ZZR600 (Canada Only) Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

220

SCREW-PAN-CROSS

220F0630

1
Out of stock

221

SCREW-CSK-CROS,6X20

221C0620

1
Out of stock

221A

SCREW-CSK-CROSS

221F0630

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock

11047

BRACKET,SEAT LOCK

11047-1885

1
Out of stock

14024

COVER,REFLECTOR,LH

14024-1940

1
Out of stock

14024A

COVER,REFLECTOR,RH

14024-1941

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-1213

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1170

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1226

1
Out of stock

27010B

SWITCH,BRAKE LAMP

27010-1452

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-5196

1
Out of stock

27016A

LOCK-ASSY,PAD

27016-5198

1
Out of stock

27016B

LOCK-ASSY,HELMET

27016-5207

1
Out of stock

27045

SWITCH-ASSY

27045-5058

1
Out of stock

28012

REFLECTOR-REFLEX,FR,SIDE

28012-1068

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1072

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

92009

SCREW,5X22

92009-1492

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1
Out of stock

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

1
Out of stock

92143

COLLAR,6.5X9.5X17

92143-1408

1
Out of stock

92151

BOLT,TORX,6X16

92151-1911

1
Out of stock

92160

DAMPER,REFLECTOR

92160-1192

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
