2005 Kawasaki ZZR600 (Canada Only) Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

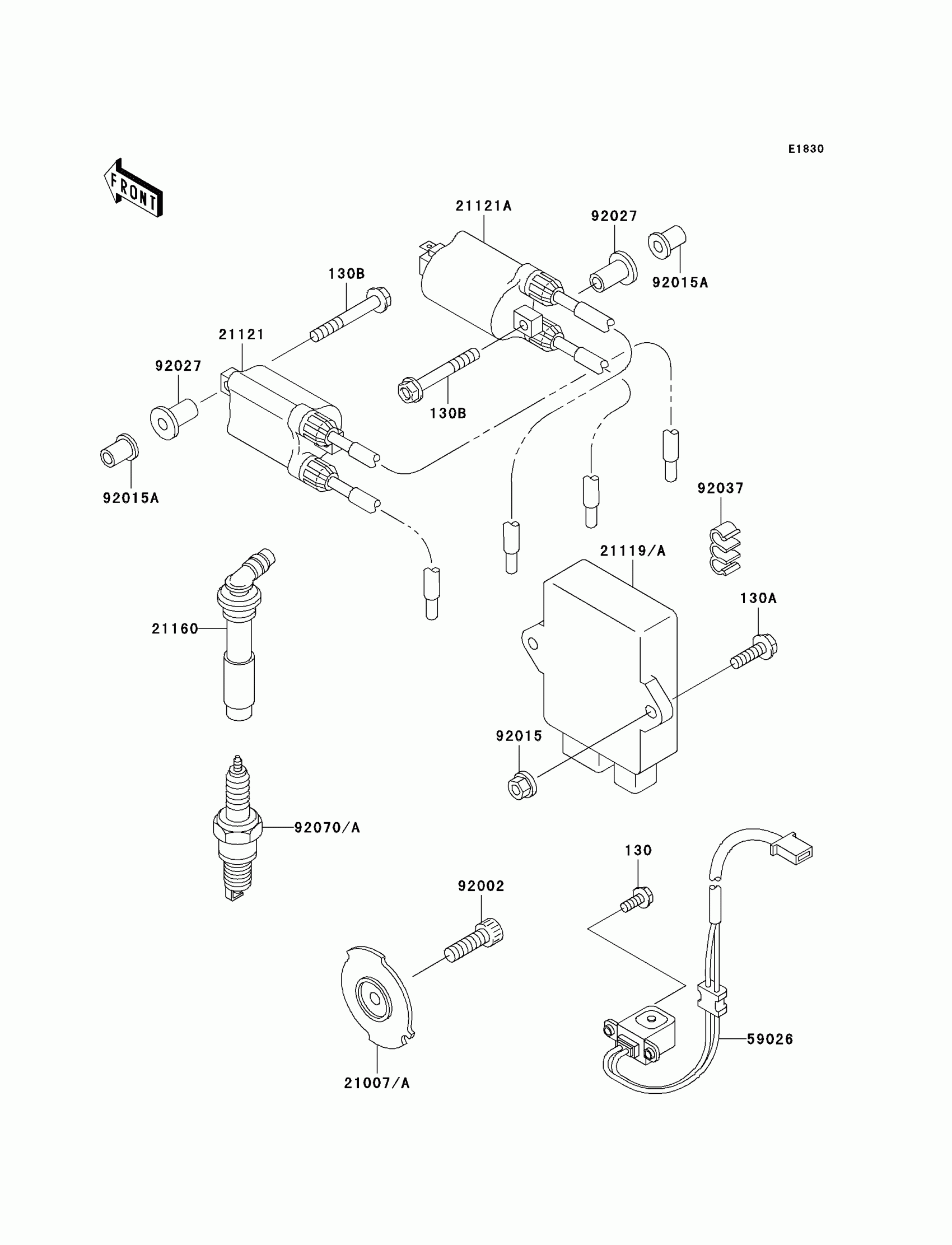

2005 Kawasaki ZZR600 (Canada Only) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

130B

BOLT-FLANGED,6X45,BLACK

130J0645

1
Out of stock

21007

ROTOR,PULSING

21007-1205

1

$53.39

In stock

21119

IGNITER

21119-1364

1

$590.34

In stock

21121

COIL-IGNITION,#1

21121-1227

1
Out of stock

21121A

COIL-IGNITION,#2

21121-1228

1

$138.30

In stock

21160

CAP-ASSY-PLUG

21160-1081

1

$61.88

In stock

59026

COIL-PULSING

59026-1100

1
Out of stock

92002

BOLT,SOCKET,8X25

92002-1442

1

$4.01

In stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT

92015-1700

1

$6.82

In stock

92027

COLLAR

92027-195

1

$5.21

In stock

92037

CLAMP,CABLE

92037-1697

1

$7.49

In stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

PLUG-SPARK,CR9E(NGK)

92070-1266

1
Out of stock
