2005 Kawasaki ZZR600 (Canada Only) Chassis Electrical Equipment Diagram

← All diagrams

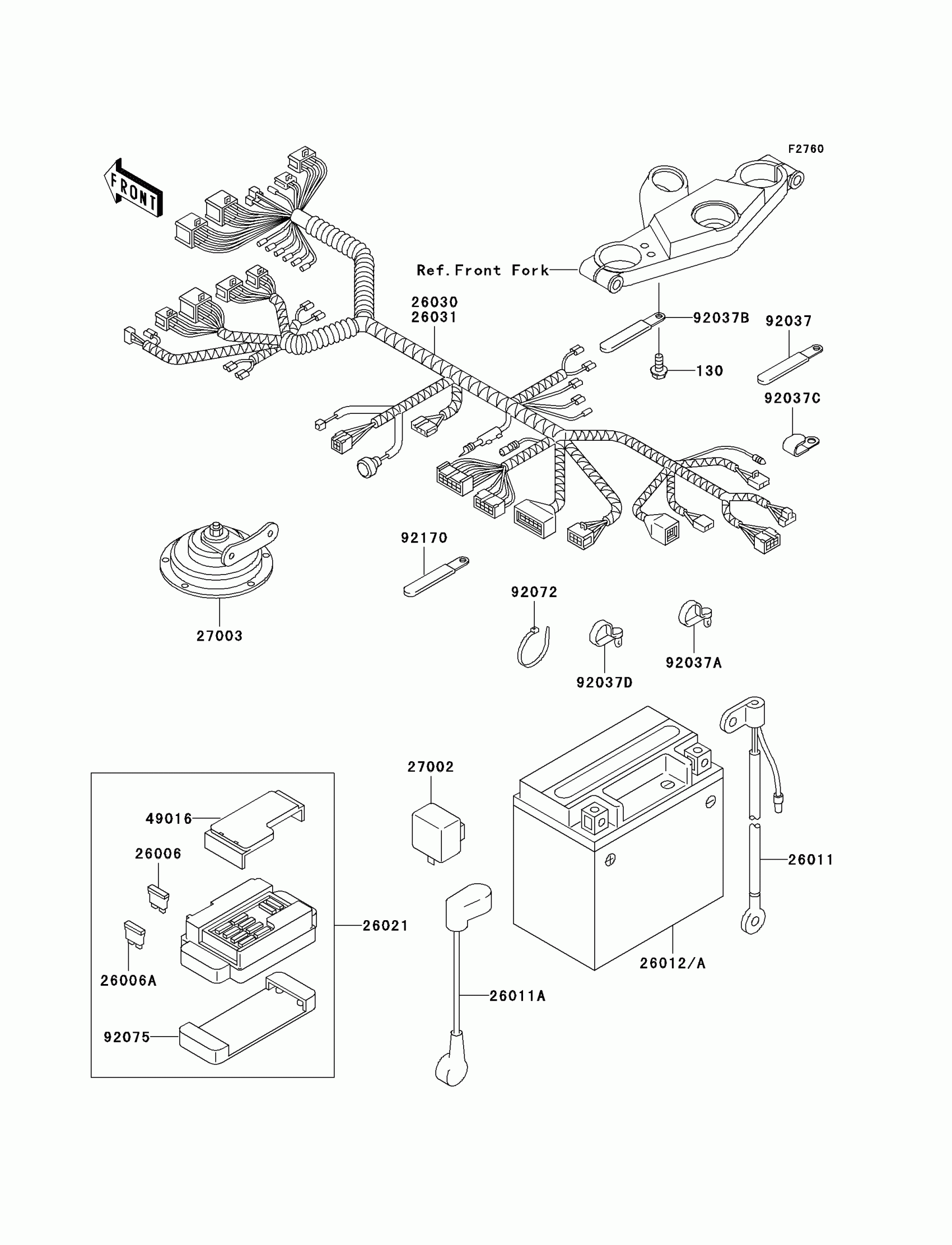

Find the part on the Chassis Electrical Equipment diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR600 (Canada Only) Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-1429

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1540

1
Out of stock

26012A

BATTERY,YTX12-BS,12V 10AH

26012-1330

1
Out of stock

26021

JUNCTION BOX

26021-1089

1
Out of stock

26031

HARNESS,MAIN

26031-0196

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

1
Out of stock

27003

HORN

27003-1316

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037B

CLAMP,L=45

92037-1539

1
Out of stock

92037C

CLAMP

92037-1877

1
Out of stock

92037D

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock

92170

CLAMP,L=150

92170-1114

1
Out of stock
