2005 Kawasaki ZZR600 (Canada Only) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

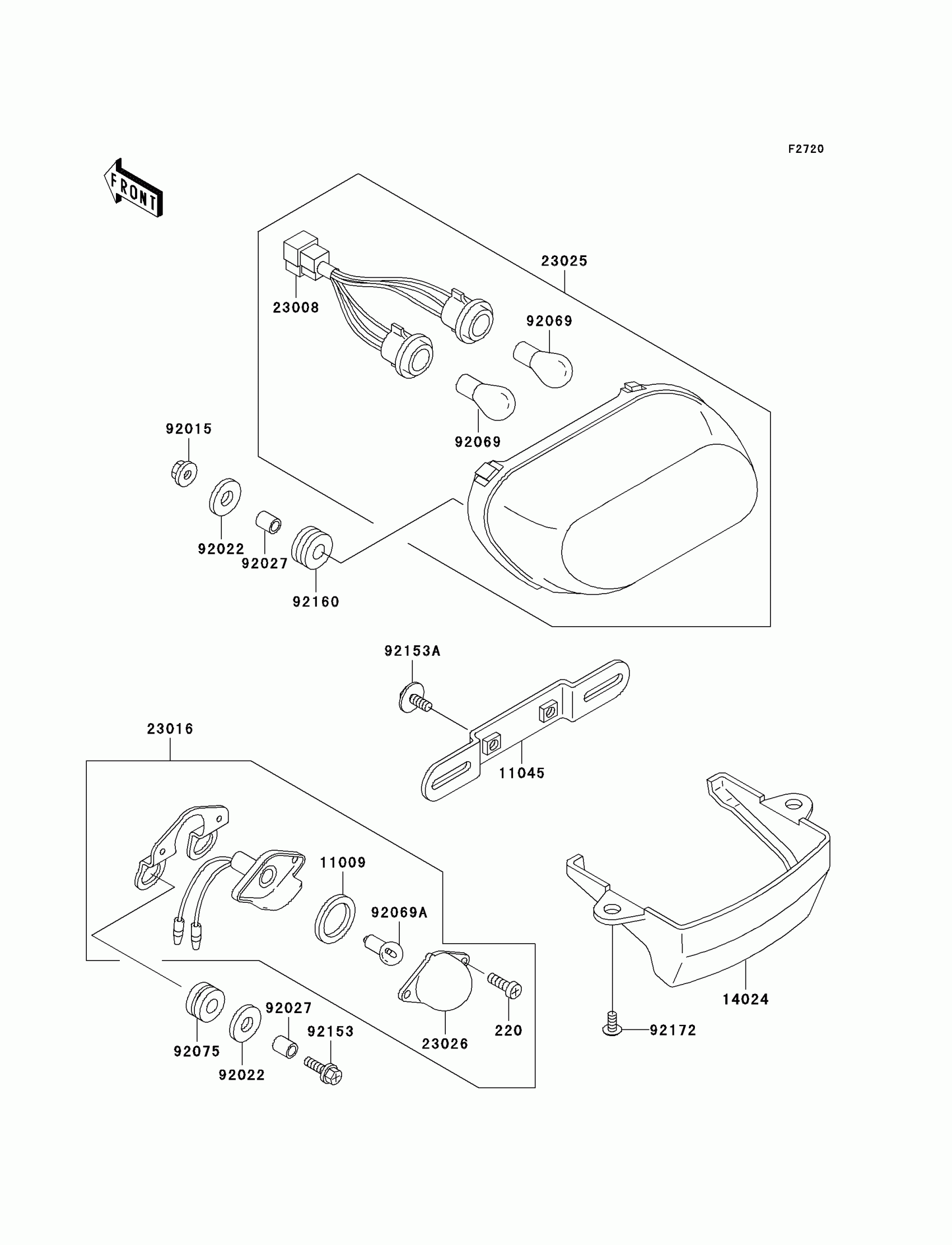

2005 Kawasaki ZZR600 (Canada Only) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

11009

GASKET,LICENSE PLATE LAMP

11009-1372

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

14024

COVER,LICENSE LAMP

14024-1386

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-1364

1
Out of stock

23016

LAMP-ASSY,LICENSE PLATE

23016-1127

1
Out of stock

23025

LAMP-TAIL

23025-1308

1
Out of stock

23026

LENS,LAMP

23026-1054

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1
Out of stock

92069A

BULB,12V 5W

92069-1055

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92153

BOLT,FLANGED,6X25

92153-0514

1
Out of stock

92153A

BOLT,6X16

92153-0684

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92172

SCREW,5X12,GREEN

92172-0008

1
Out of stock
