2005 Kawasaki ZZR600 (Canada Only) Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

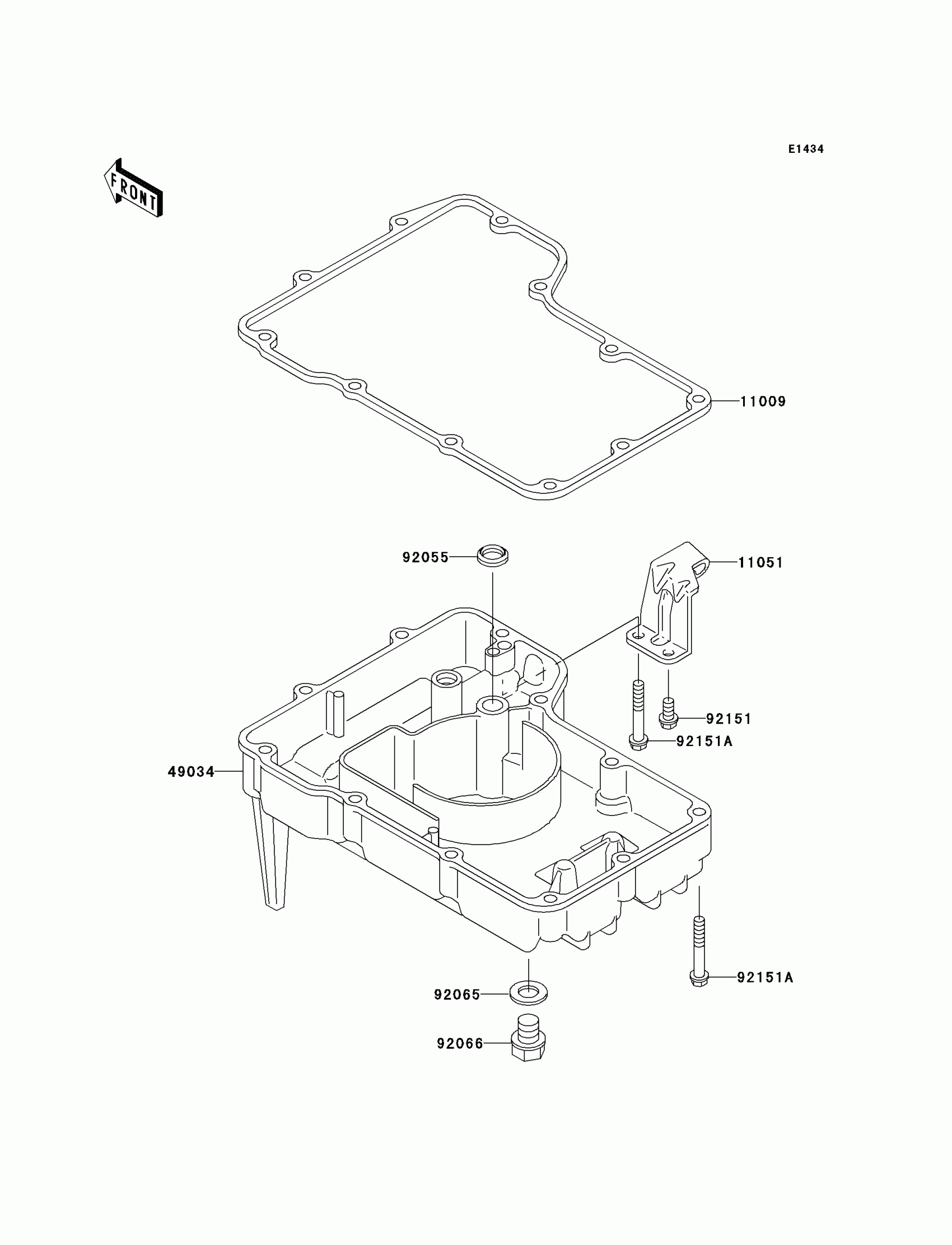

2005 Kawasaki ZZR600 (Canada Only) Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PAN

11009-1870

1
Out of stock

11051

BRACKET

11051-1997

1
Out of stock

49034

PAN-OIL

49034-1090

1
Out of stock

92055

RING-O,OD=18

92055-048

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

92151

BOLT,6X12

92151-1894

1
Out of stock

92151A

BOLT,6X40

92151-1895

1
Out of stock
