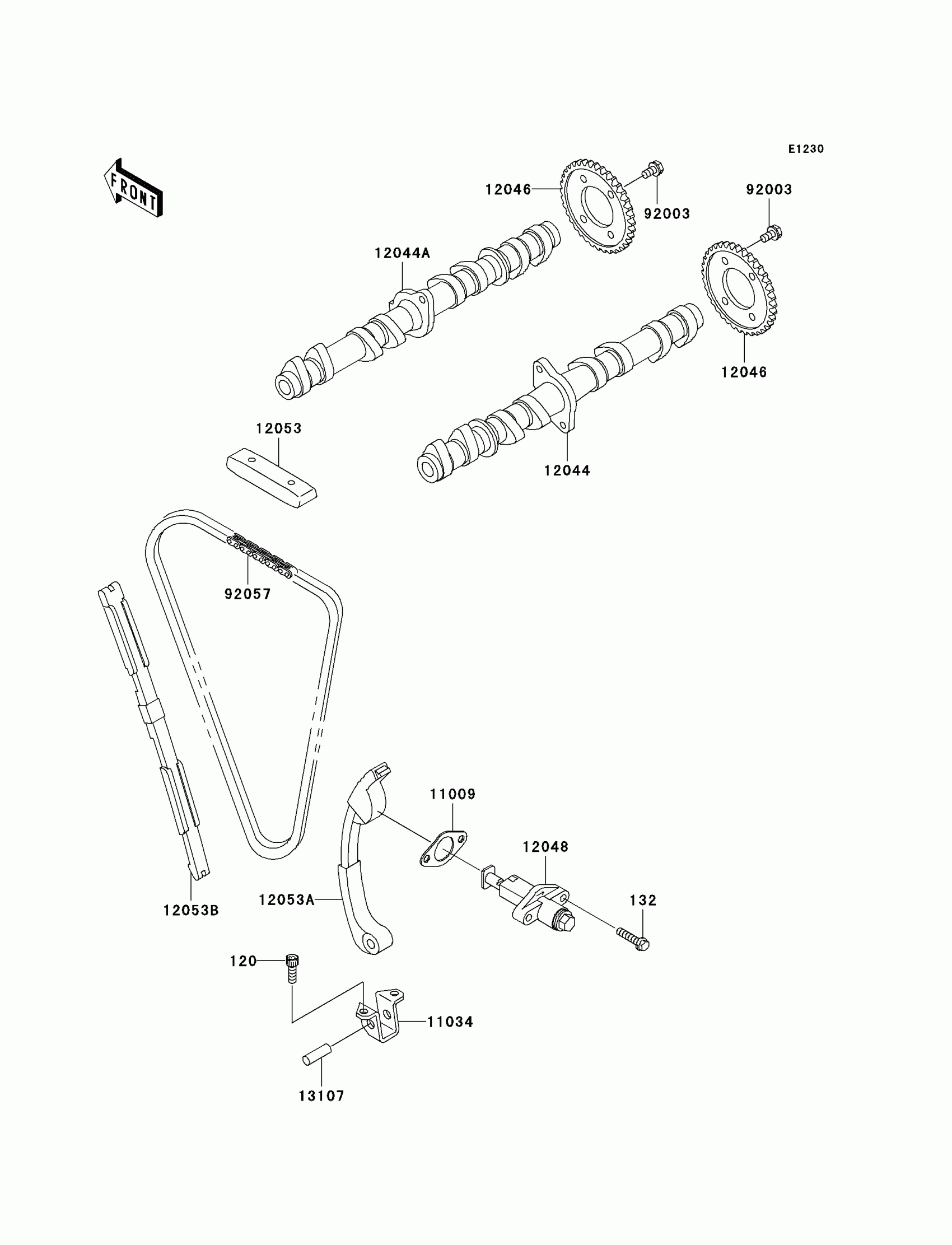

Kawasaki ZZR600 (Canada Only) Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X18

120P0618

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

11009

GASKET,TENSIONER

11009-1858

$3.52

11034

BRACKET,CHAIN GUIDE

11034-1240

$11.03

12044

CAMSHAFT-VALVE,INTAKE

12044-1391

$474.48

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1392

$474.48

12046

SPROCKET,CAMCHAIN,42T

12046-1121

$58.39

12048

TENSIONER-ASSY

12048-1126

$149.89

12053

GUIDE-CHAIN

12053-1274

$30.00

12053A

GUIDE-CHAIN

12053-1275

$73.52

12053B

GUIDE-CHAIN

12053-1279

$49.77

13107

SHAFT,8X25

13107-1142

$5.86

92003

BOLT,FLANGED,6X11

92003-208

$3.29

92057

CHAIN,CAM,82RH2015,132L

92057-1297

$128.45
