2005 Kawasaki ZZR600 (Canada Only) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

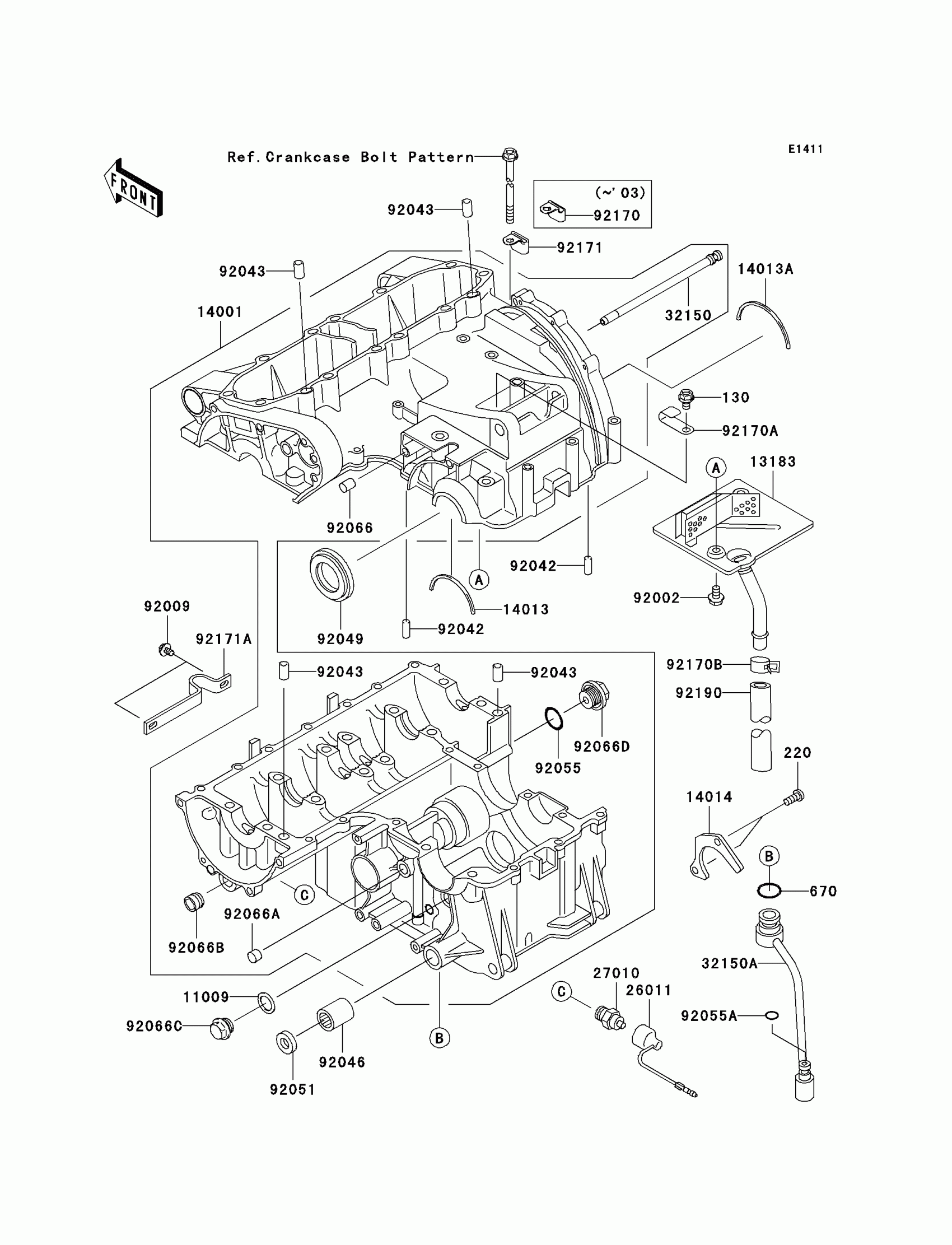

2005 Kawasaki ZZR600 (Canada Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130Z0610

1
Out of stock

220

1

$1.32

In stock

670

O RING,14MM

670B2014

1

$1.08

In stock

11009

GASKET,14.3X20X1

11009-1238

1

$3.51

In stock

13183

PLATE,BREATHER

13183-1531

1

$77.08

In stock

14001

SET-CRANKCASE

14001-5379

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14013A

RING-POSITION,T=1.98

14013-1004

1
Out of stock

14014

PLATE-POSITION

14014-1102

1
Out of stock

26011

WIRE-LEAD

26011-1371

1

$19.97

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

32150

PIPE,OIL

32150-1619

1

$29.55

In stock

32150A

PIPE,OIL

32150-1620

1

$45.70

In stock

92002

BOLT,6X10

92002-1449

1

$3.68

In stock

92009

SCREW,TAPPING,5X8

92009-1603

1
Out of stock

92042

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,TC32528

92049-1307

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92055A

RING-O,5.5X1.5

92055-1343

1

$0.69

In stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

PLUG

92066-1110

1

$5.66

In stock

92066B

PLUG,PT3/8X12

92066-1252

1

$5.15

In stock

92066C

PLUG,14X8

92066-1273

1

$7.88

In stock

92066D

1

$8.69

In stock

92170A

1

$3.97

In stock

92170B

CLAMP

92170-2043

1

$1.08

In stock

92171

CLAMP

92171-0350

1
Out of stock

92171A

CLAMP

92171-1287

1

$8.73

In stock

92190

TUBE,L=127

92190-1107

1

$8.73

In stock
