2005 Kawasaki ZZR600 (Canada Only) Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

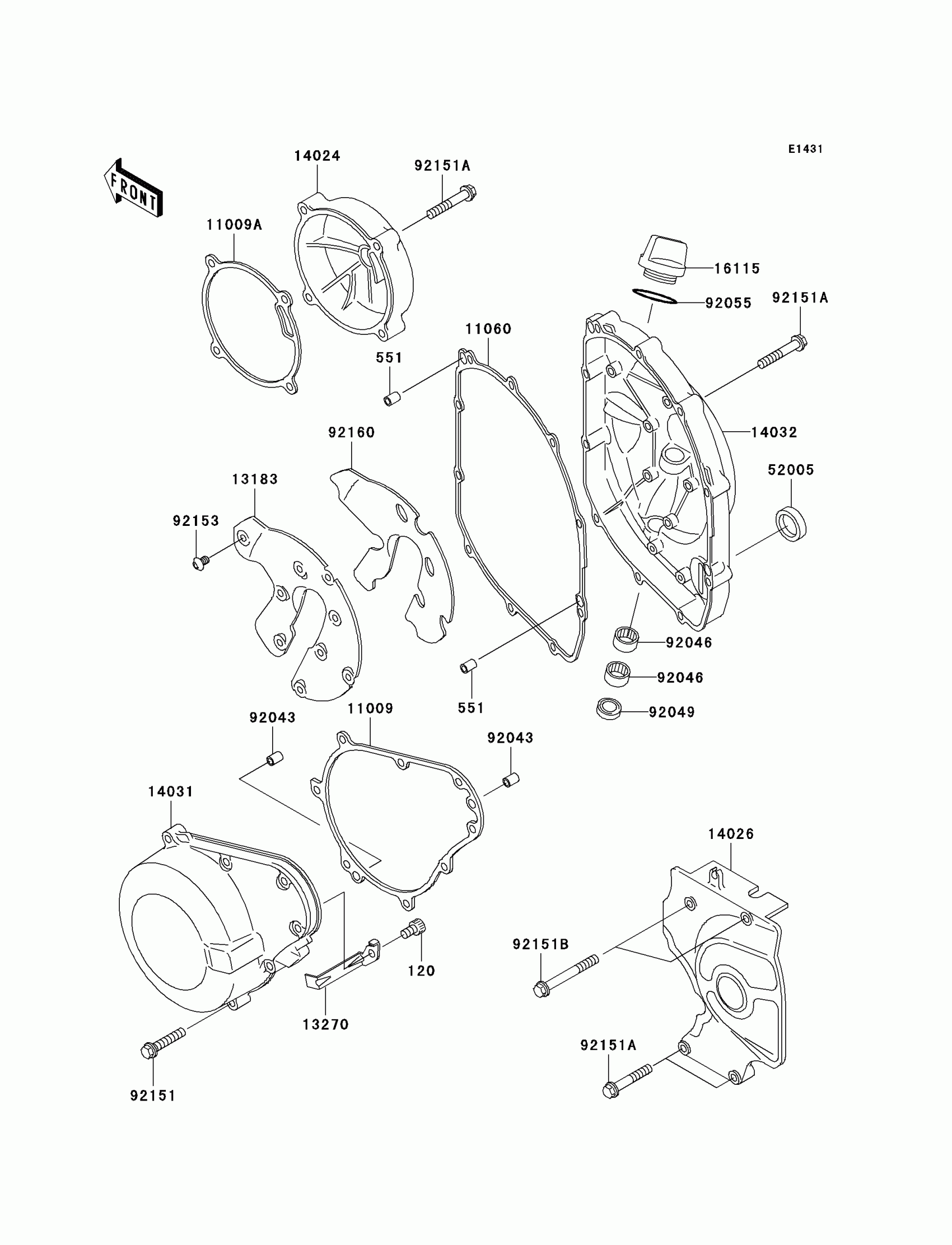

2005 Kawasaki ZZR600 (Canada Only) Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120P0610

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

11009

1

$10.54

In stock

11009A

1

$7.95

In stock

11060

GASKET,CLUTCH COVER

11060-1639

1

$30.00

In stock

13183

PLATE

13183-1532

1

$12.69

In stock

13270

PLATE,LEAD WIRE

13270-1475

1
Out of stock

14024

COVER,PULSING

14024-1881

1
Out of stock

14026

COVER-CHAIN

14026-1216

1

$167.37

In stock

14031

COVER-GENERATOR

14031-1247

1

$151.66

In stock

14032

COVER-CLUTCH

14032-1388

1

$232.53

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92151

BOLT,6X30

92151-1873

1

$3.70

In stock

92151A

BOLT,6X35

92151-1874

1

$2.29

In stock

92151B

BOLT,6X50

92151-1875

1

$5.34

In stock

92153

BOLT,5X8

92153-0636

1
Out of stock

92160

DAMPER

92160-1195

1

$36.93

In stock
