2005 Kawasaki ZZR600 (Canada Only) Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

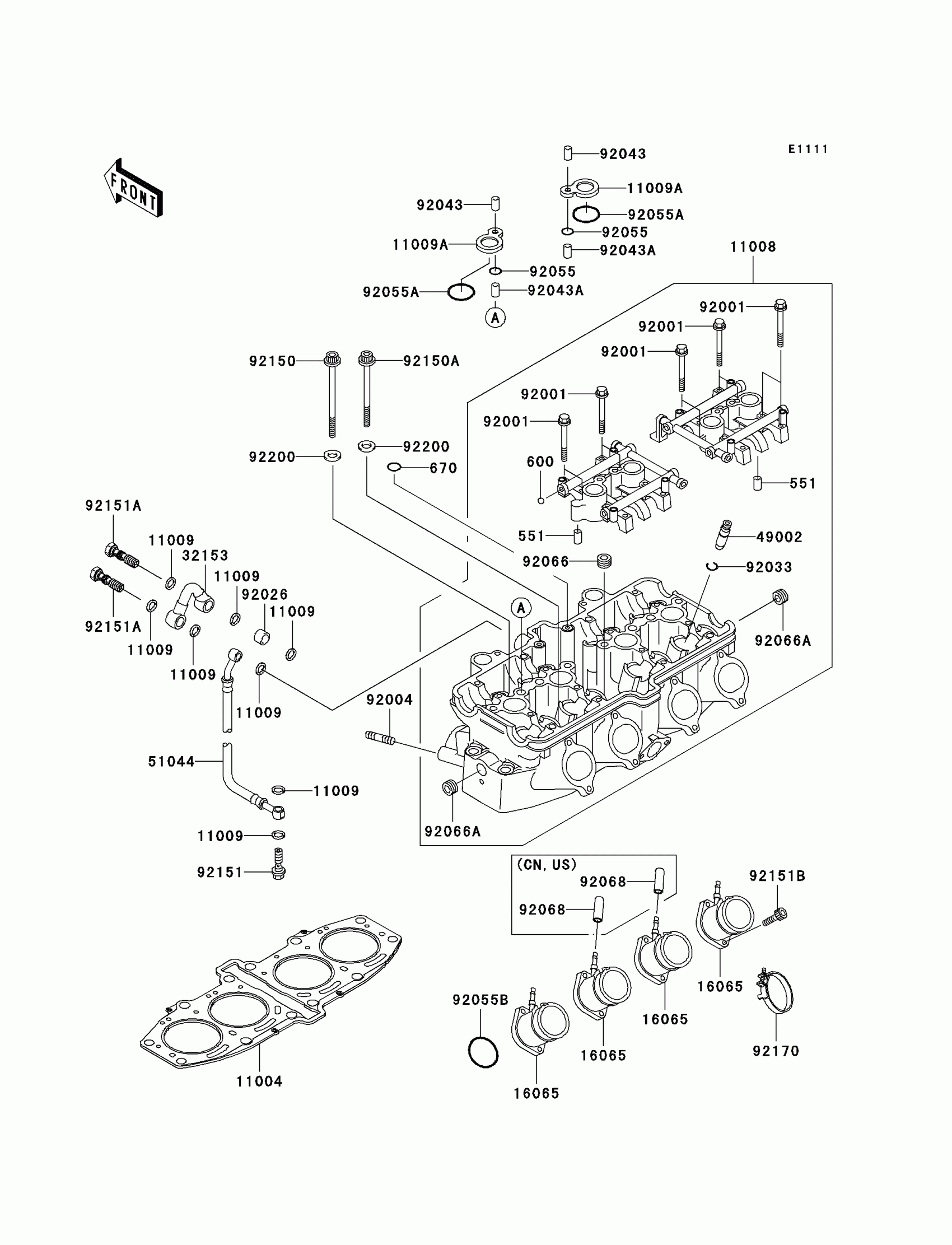

2005 Kawasaki ZZR600 (Canada Only) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,6X12

551A0612

1
Out of stock

600

BALL-STEEL,9/32

600A0900

1
Out of stock

670

O RING,8MM

670D1508

1
Out of stock

11004

GASKET-HEAD

11004-0021

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1273

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

11009A

GASKET,SPARK PLUG

11009-1990

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1276

1
Out of stock

32153

PIPE

32153-1418

1
Out of stock

49002

GUIDE-VALVE

49002-1121

—
Out of stock

51044

TUBE-ASSY

51044-1213

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1
Out of stock

92004

STUD,8X18

92004-1186

1
Out of stock

92026

SPACER,10.5X15.1X10

92026-1393

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,11.5X1.5

92055-1469

1
Out of stock

92055A

RING-O

92055-1470

1
Out of stock

92055B

RING-O,42X1.9

92055-1519

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92066A

PLUG,PT3/8X10

92066-1346

1
Out of stock

92068

PLUG,12X25

92068-006

1
Out of stock

92150

BOLT,10X165

92150-1368

1
Out of stock

92150A

BOLT,10X151

92150-1369

1
Out of stock

92151

BOLT,BANJO,10X23

92151-1349

1
Out of stock

92151A

BOLT,BANJO,10X37

92151-1867

1
Out of stock

92151B

BOLT,SOCKET,6X14

92151-1869

1
Out of stock

92170

CLAMP

92170-1908

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock
