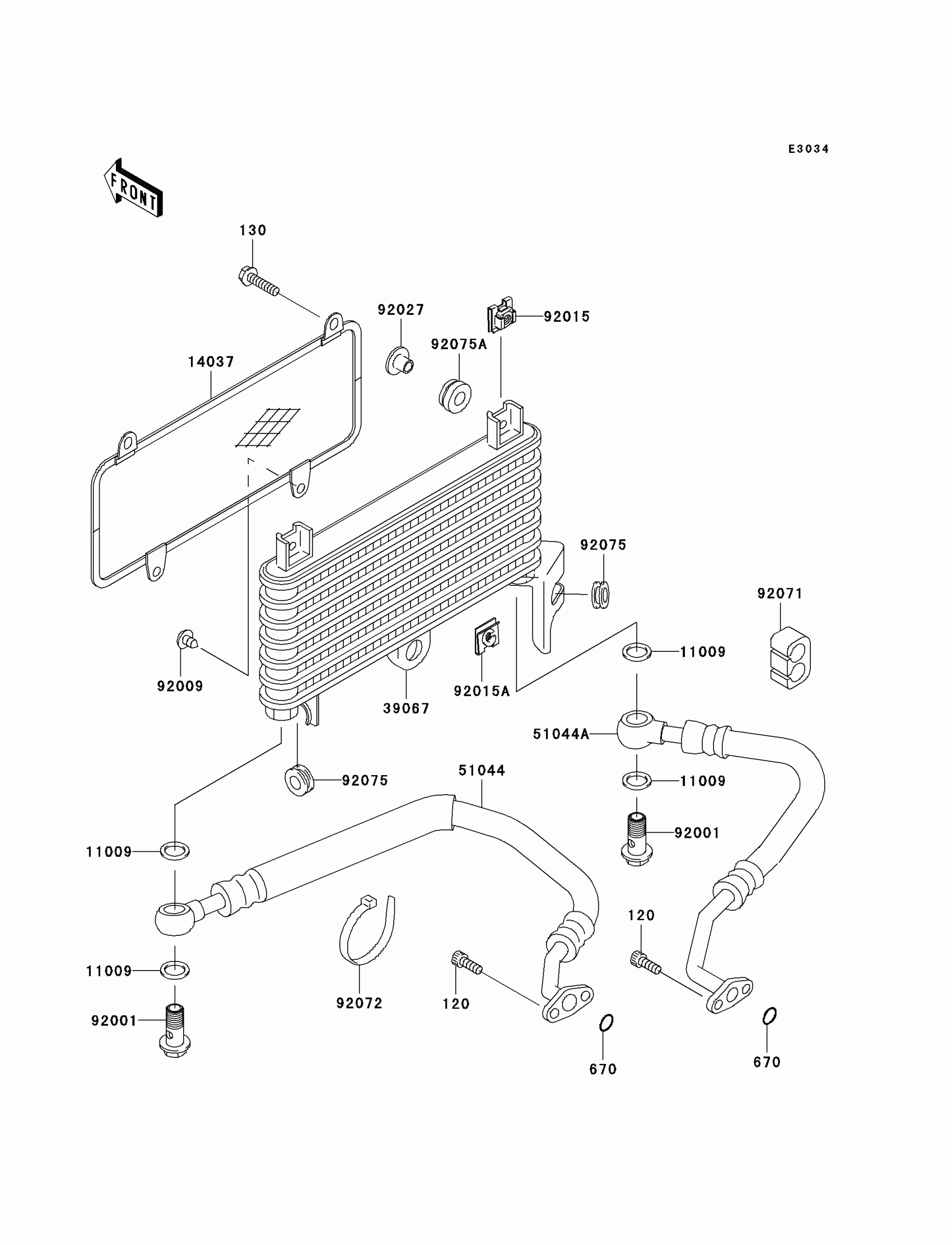

Kawasaki ZZR600 (Canada Only) Oil Cooler Diagram

Description

Price

120

BOLT-SOCKET,6X16

120S0616

Unavailable

130

BOLT-FLANGED,6X25

130J0625

Unavailable

670

O RING,10MM

670B2010

$1.13

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

14037

SCREEN,OIL COOLER

14037-1174

$73.07

39067

COOLER-OIL

39067-1061

$626.87

51044

TUBE-ASSY,LH

51044-1157

Unavailable

51044A

TUBE-ASSY,RH

51044-1158

Unavailable

92001

BOLT,14X28.5

92001-1930

$9.59

92009

SCREW,TAPPING,6MM

92009-1261

$2.29

92015

NUT

92015-1487

$3.64

92015A

NUT,6MM

92015-1758

$5.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92071

GROMMET

92071-1216

$8.71

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,OIL COOLER

92075-1942

Unavailable

92075A

DAMPER

92075-277

$1.90
