2005 Kawasaki ZZR600 (Canada Only) Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

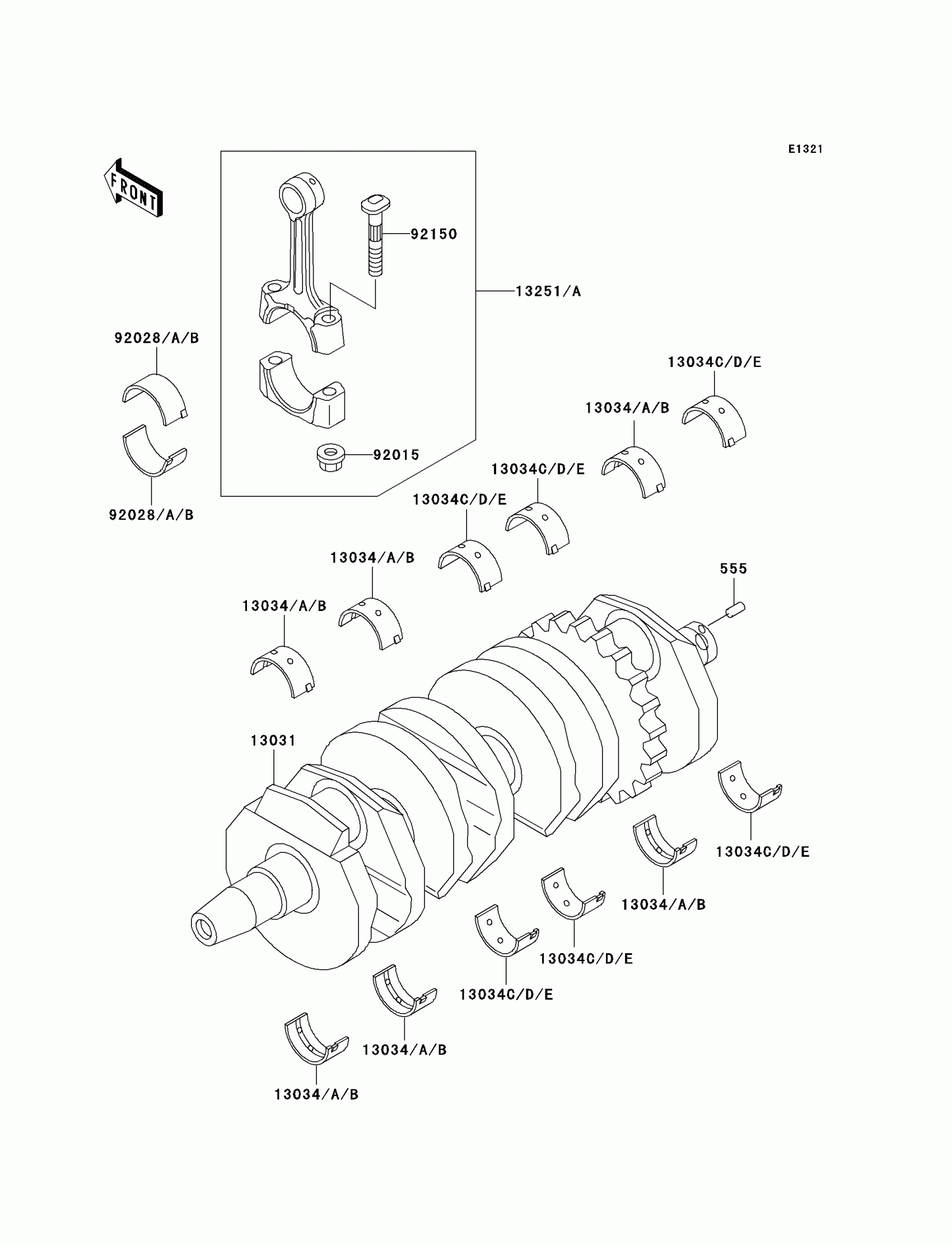

2005 Kawasaki ZZR600 (Canada Only) Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

555

PIN-SPRING,4X8

555A0408

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1397

1
Out of stock

13034

METAL,CRANKSHAFT,BROWN

13034-1016

1
Out of stock

13034A

METAL,CRANKSHAFT,BLACK

13034-1017

—
Out of stock

13034B

METAL,CRANKSHAFT,BLUE

13034-1018

—
Out of stock

13034C

BUSHING,CRANKSHAFT,BLUE

13034-1064

1
Out of stock

13034D

BUSHING,CRANKSHAFT,BLACK

13034-1065

—
Out of stock

13034E

BUSHING,CRANKSHAFT,BROWN

13034-1066

—
Out of stock

13251

ROD-ASSY-CONNECTING,I

13251-1100-II

1
Out of stock

13251A

ROD-ASSY-CONNECTING,J

13251-1100-JJ

1
Out of stock

92015

NUT,CONNECTING ROD,7MM

92015-1527

1
Out of stock

92028

BUSHING,CONNECTING ROD,BLACK

92028-1493

—
Out of stock

92028A

BUSHING,CONNECTING ROD,BROWN

92028-1494

1
Out of stock

92028B

BUSHING,CONNECTING ROD,P

92028-1709

—
Out of stock

92150

BOLT,CONNECTING ROD,7MM

92150-1683

1
Out of stock
