2005 Kawasaki ZZR1200 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

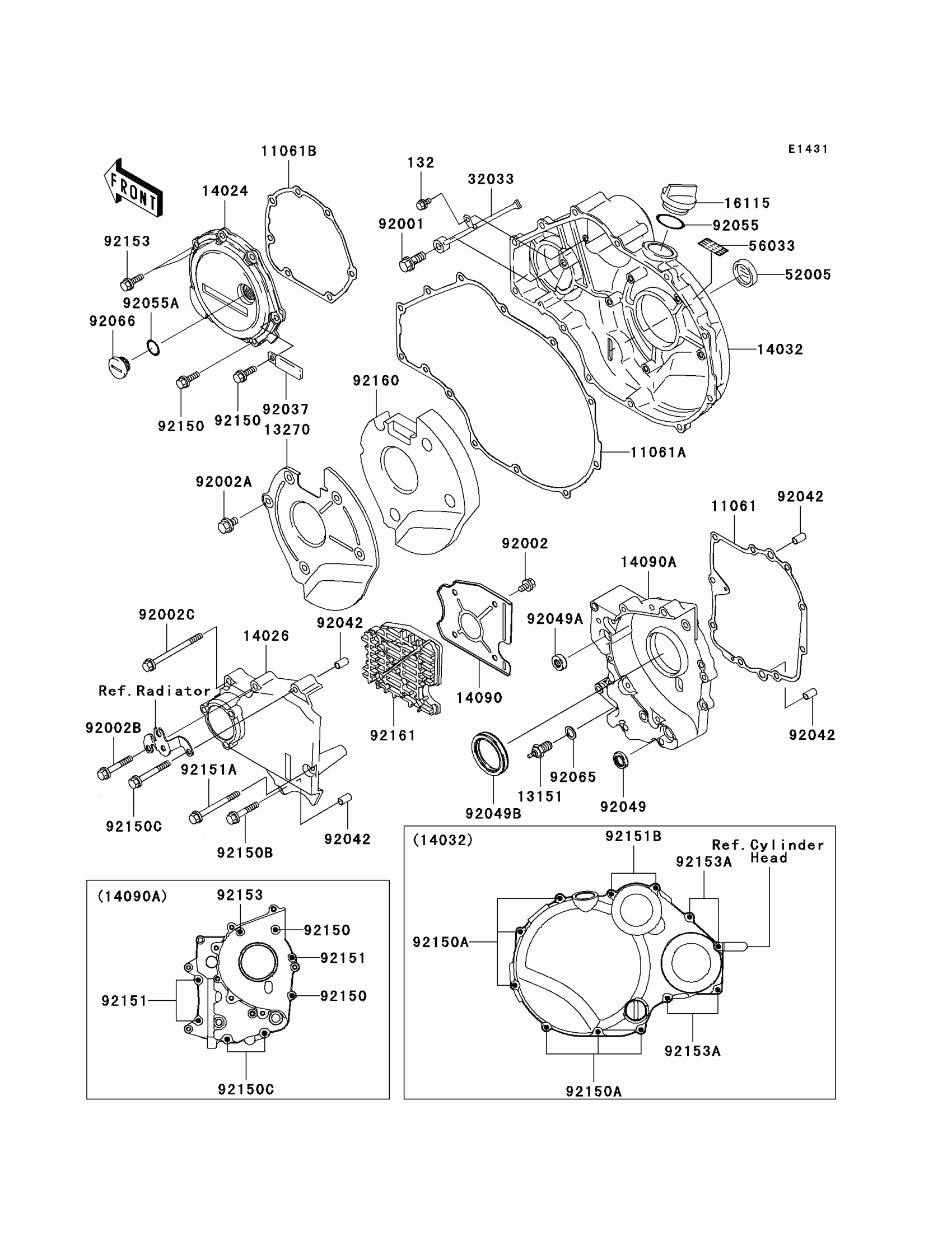

2005 Kawasaki ZZR1200 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132H0510

1
Out of stock

11061

1

$13.53

In stock

11061A

GASKET,CLUTCH COVER

11061-1154

1

$10.84

In stock

11061B

1

$7.45

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1

$8.20

In stock

13270

PLATE

13270-1765

1
Out of stock

14024

COVER,PULSING

14024-1721

1
Out of stock

14026

COVER-CHAIN

14026-1213

1

$167.37

In stock

14032

COVER-CLUTCH

14032-1530

1
Out of stock

14090

1

$34.00

In stock

14090A

COVER,TRANSMISSION

14090-1877

1

$195.48

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

32033

PIPE,CLUTCH COVER

32033-1204

1

$31.22

In stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

56033

1

$5.42

In stock

92001

BOLT,BANJO,8X20

92001-1855

1

$8.44

In stock

92002

BOLT,6X10

92002-1449

1

$3.68

In stock

92002A

BOLT,6X10

92002-1541

1
Out of stock

92002B

BOLT,FLANGED-SMALL,6X40

92002-1566

1
Out of stock

92002C

BOLT,FLANGED,6X80

92002-1568

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92049

SEAL-OIL

92049-1564

1
Out of stock

92049A

SEAL-OIL

92049-1566

1
Out of stock

92049B

SEAL-OIL

92049-1567

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,COVER

92066-1163

1

$11.67

In stock

92150

BOLT,6X20

92150-1010

1
Out of stock

92150A

BOLT,FLANGED-SMALL,6X25

92150-1779

1
Out of stock

92150B

BOLT,6X35

92150-1967

1

$3.85

In stock

92150C

BOLT,6X50

92150-1968

1

$3.87

In stock

92151

BOLT,6X25

92151-1190

1

$3.19

In stock

92151A

BOLT,6X65

92151-1191

1

$3.29

In stock

92151B

BOLT,6X55

92151-1341

1

$2.03

In stock

92153

BOLT,M6X20

92153-1114

1
Out of stock

92153A

BOLT,M6X40

92153-1190

1
Out of stock

92160

DAMPER

92160-1812

1

$74.56

In stock

92161

1

$30.56

In stock
