2005 Kawasaki ZZR1200 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

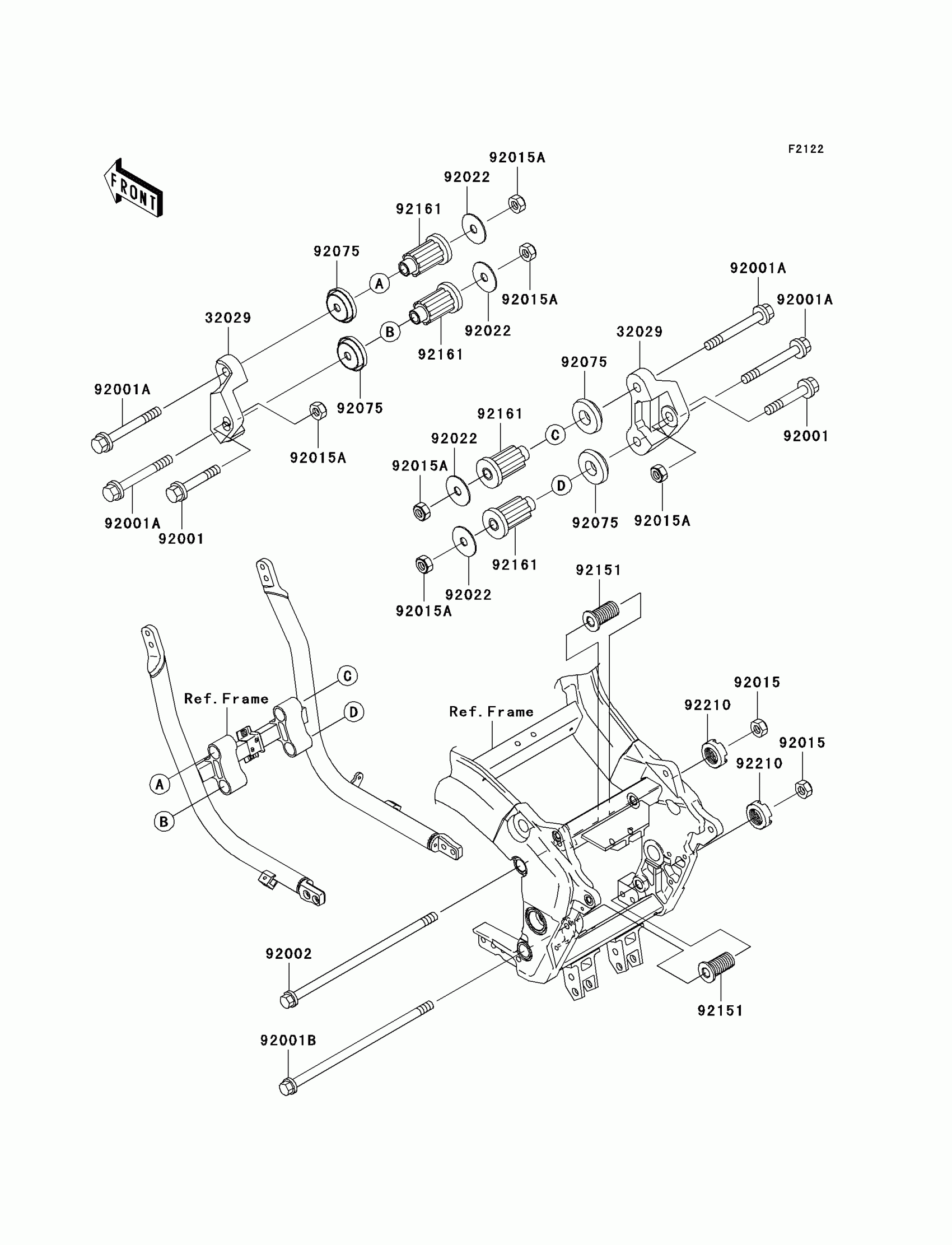

2005 Kawasaki ZZR1200 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE

32029-1615

1

$69.32

In stock

92001

BOLT,FLANGED,10X60

92001-1617

1

$9.95

In stock

92001A

BOLT,FLANGED,10X85

92001-1619

1

$8.25

In stock

92001B

1

$22.63

In stock

92002

BOLT,FLANGED,10X230

92002-1531

1

$19.69

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92015A

NUT,10MM

92015-1429

1

$5.45

In stock

92022

WASHER,10.5X37X1.6

92022-1246

1
Out of stock

92075

1

$16.49

In stock

92151

1

$23.81

In stock

92161

1

$36.85

In stock

92210

NUT,18MM

92210-1203

1
Out of stock
← Engine Cover Muffler →
