2005 Kawasaki ZZR1200 Cylinder/piston Diagram

← All diagrams

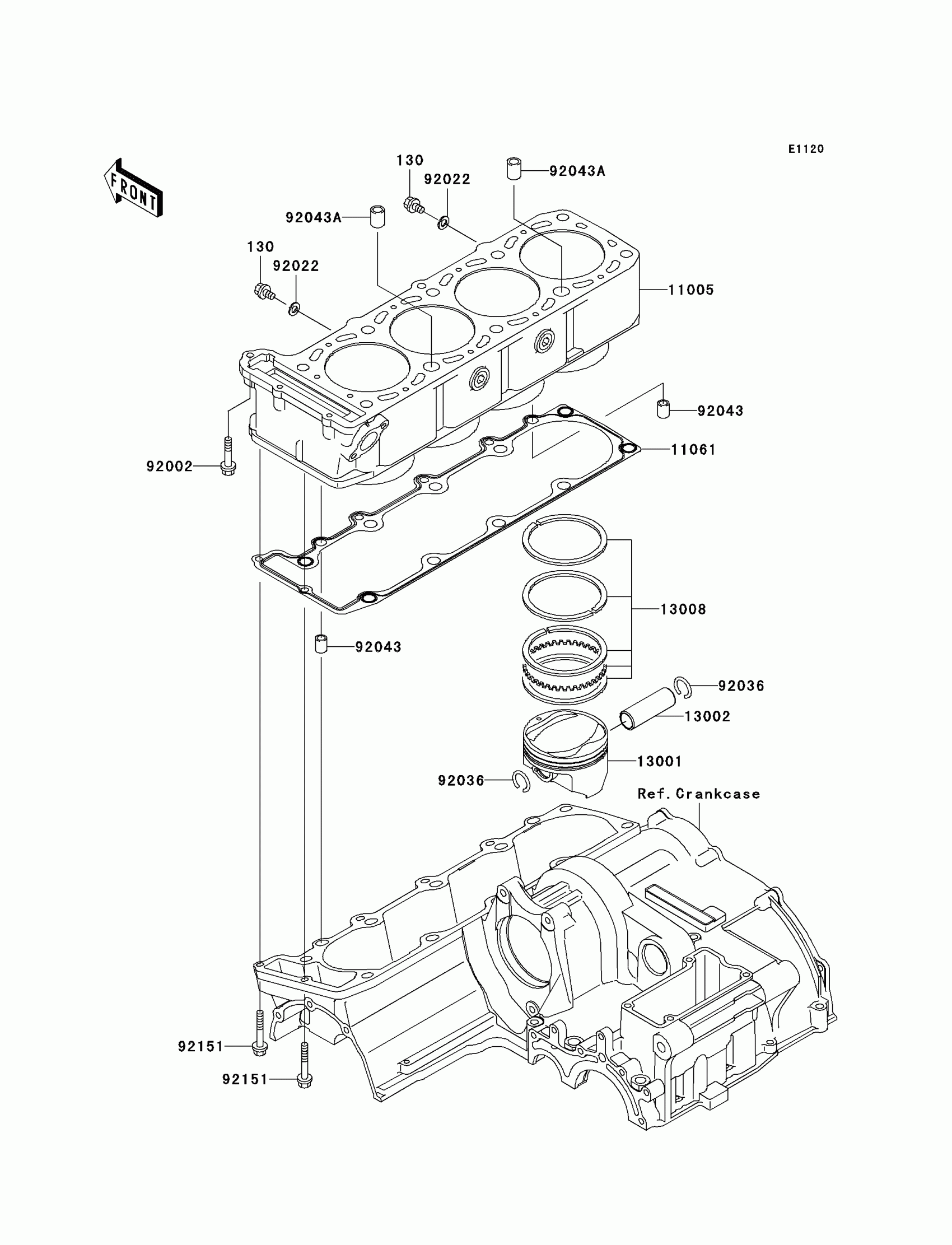

Find the part on the Cylinder/piston diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130Y0610

1
Out of stock

11005

CYLINDER-ENGINE

11005-1945

1
Out of stock

11061

GASKET,CYLINDER

11061-1060

1
Out of stock

13001

PISTON-ENGINE

13001-1627

1
Out of stock

13002

PIN-PISTON

13002-1124

1
Out of stock

13008

RING-SET-PISTON

13008-1211

1
Out of stock

92002

BOLT,FLANGED,M6X30

92002-1138

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-008

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92043A

PIN,11.5X14X14

92043-1279

1
Out of stock

92151

BOLT,6X38

92151-1904

1
Out of stock
