2005 Kawasaki ZZR1200 Crankcase Diagram

← All diagrams

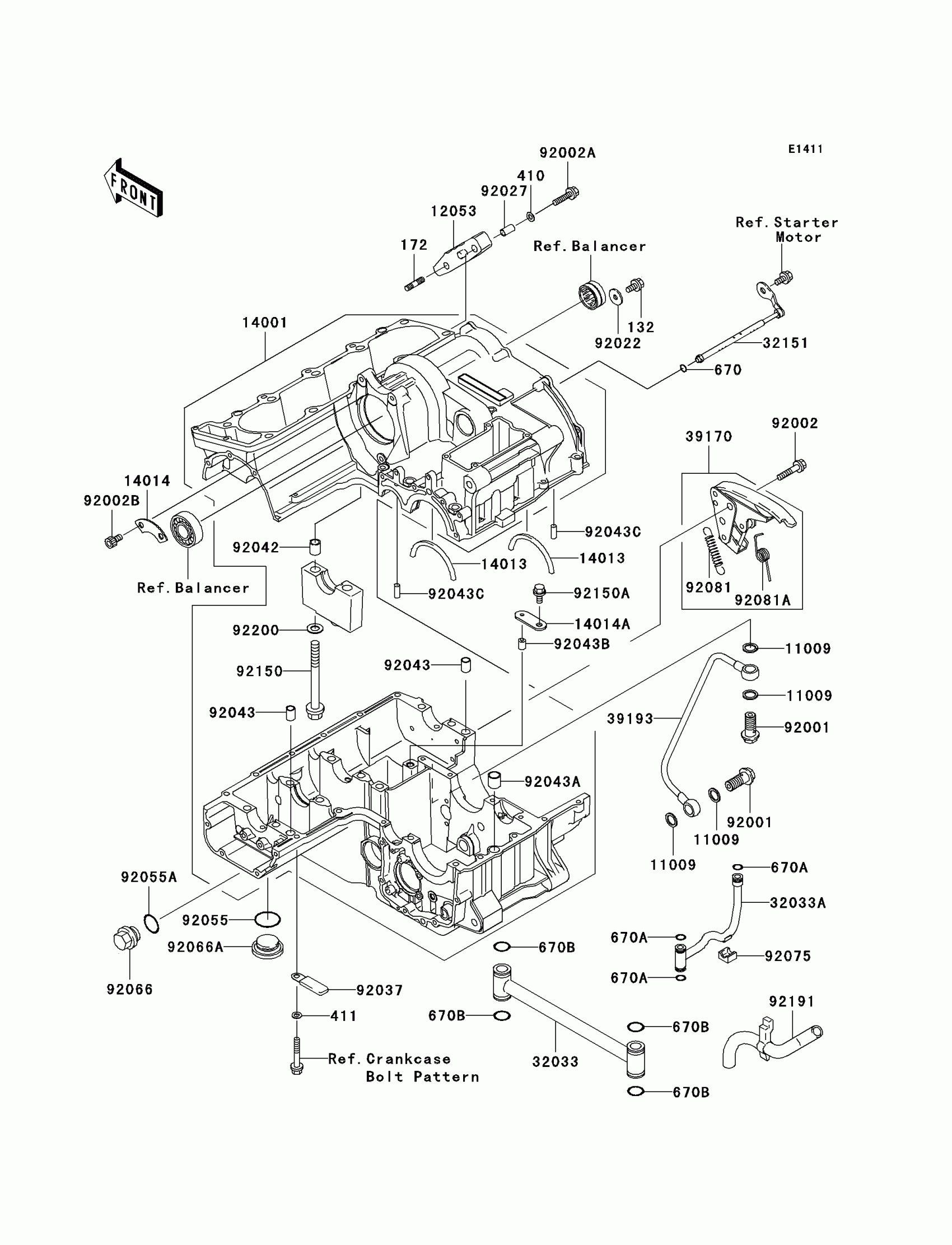

Find the part on the Crankcase diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

172

BOLT-STUD,6X16

172G0616

1
Out of stock

410

1

$1.19

In stock

411

WASHER PLAIN

411F0600

1

$1.08

In stock

670

O RING,6MM

670B1506

1

$1.14

In stock

670A

O RING,9MM

670D1509

1

$3.72

In stock

11009

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

12053

GUIDE-CHAIN

12053-1189

1

$18.31

In stock

14001

SET-CRANKCASE

14001-1301

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1005

1
Out of stock

14014

PLATE-POSITION

14014-1056

1
Out of stock

14014A

PLATE-POSITION

14014-1155

1
Out of stock

32033

PIPE,MAIN GALLARY

32033-1201

1

$52.23

In stock

32033A

PIPE

32033-1202

1

$39.12

In stock

32151

PIPE,OIL

32151-1482

1

$54.07

In stock

39170

TENSIONER-COMP

39170-1059

1

$199.66

In stock

39193

PIPE-OIL

39193-1044

1
Out of stock

92001

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002

BOLT,6X30

92002-1534

1
Out of stock

92002A

BOLT,6X25

92002-1609

1
Out of stock

92002B

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92027

COLLAR,6.2X8.1X15

92027-1079

1

$3.16

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92042

PIN,DOWEL,12X14

92042-031

1

$5.21

In stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92043A

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92043B

PIN,BALANCER

92043-1281

1

$9.29

In stock

92043C

PIN,6X16

92043-1690

1

$3.97

In stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

1

$9.11

In stock

92066A

PLUG,25X8

92066-1161

1

$10.19

In stock

92075

DAMPER,PIPE

92075-1785

1
Out of stock

92081

SPRING

92081-1668

1
Out of stock

92081A

SPRING

92081-1971

1

$7.29

In stock

92150

BOLT,9X90

92150-1364

1

$8.44

In stock

92150A

BOLT,6X12

92150-1868

1

$2.66

In stock

92191

TUBE,BREATHER

92191-1775

1
Out of stock

92200

WASHER,9.5X18X1.2

92200-1037

1
Out of stock

670B

O RING,16MM

670D2016

1

$1.44

In stock
