2005 Kawasaki ZZR1200 Cylinder Head Diagram

← All diagrams

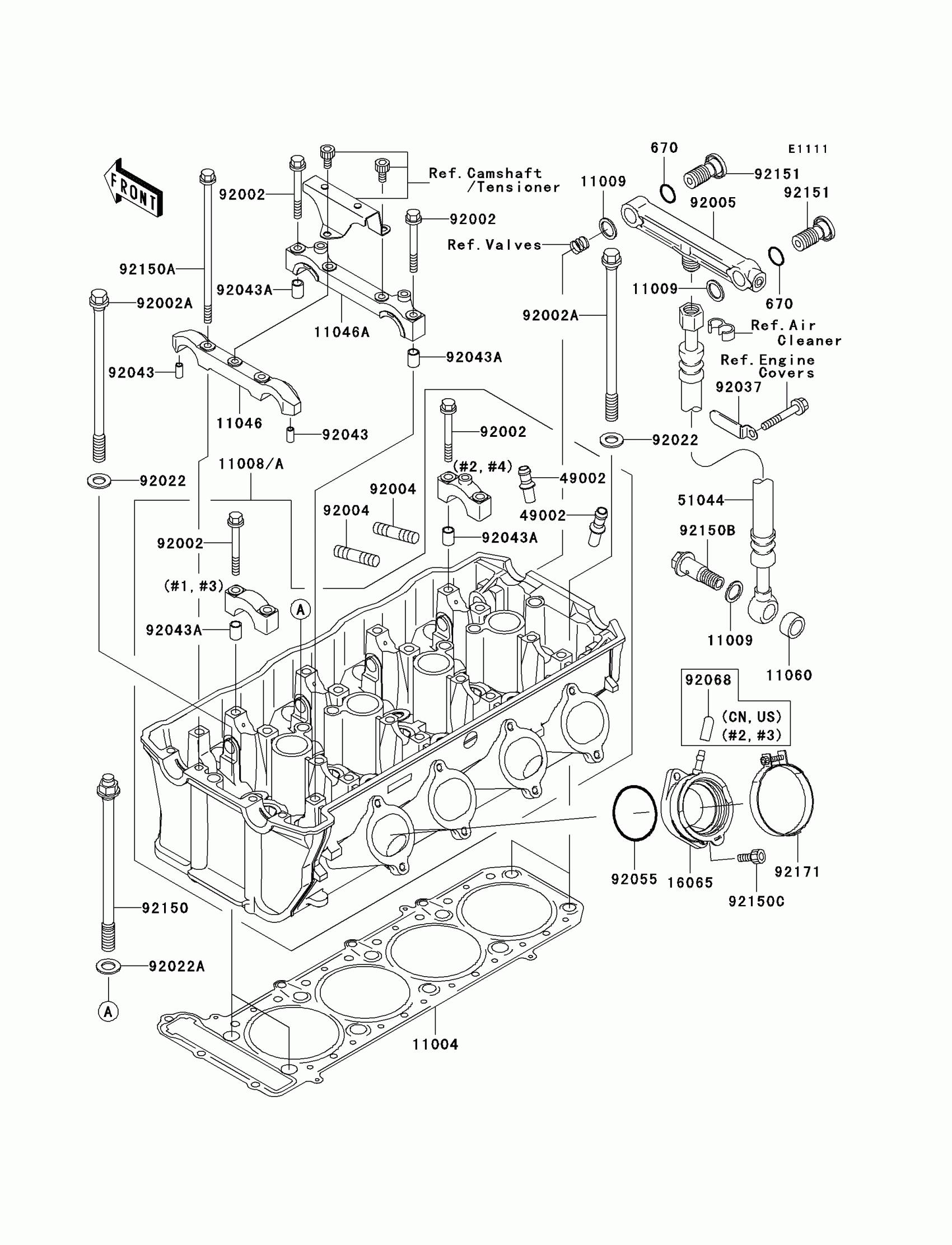

Find the part on the Cylinder Head diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,15MM

670B2015

1

$1.25

In stock

11004

GASKET-HEAD

11004-1377

1

$140.14

In stock

11008A

HEAD-COMP-CYLINDER

11008-1435

1

$3,250.95

In stock

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

11046

BRACKET,CAMSHAFT,#9

11046-1150

1

$47.97

In stock

11046A

1

$47.97

In stock

11060

GASKET

11060-1369

1

$8.92

In stock

16065

HOLDER-CARBURETOR

16065-1210

1

$46.68

In stock

49002

GUIDE-VALVE

49002-1097

—

$24.53

In stock

51044

TUBE-ASSY

51044-1221

1

$160.84

In stock

92002

BOLT,6X40

92002-1756

1
Out of stock

92002A

BOLT,10X164

92002-1943

1
Out of stock

92004

STUD,8X22

92004-1181

1
Out of stock

92005

FITTING,HEAD CYLINDER,SIDE

92005-1394

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92022A

1

$3.43

In stock

92037

CLAMP

92037-1997

1

$4.15

In stock

92043

PIN,4.2X6X12

92043-1262

1

$3.43

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O,43.7X1.9

92055-1401

1

$10.88

In stock

92150

BOLT,11X164

92150-1075

1

$18.51

In stock

92150A

BOLT,6X148

92150-1076

1

$8.44

In stock

92150B

BOLT,BANJO,12X40.5

92150-1077

1

$17.53

In stock

92150C

BOLT,SOCKET,6X16

92150-1655

1

$3.88

In stock

92151

BOLT

92151-1147

1

$22.80

In stock

92171

1

$11.92

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock
