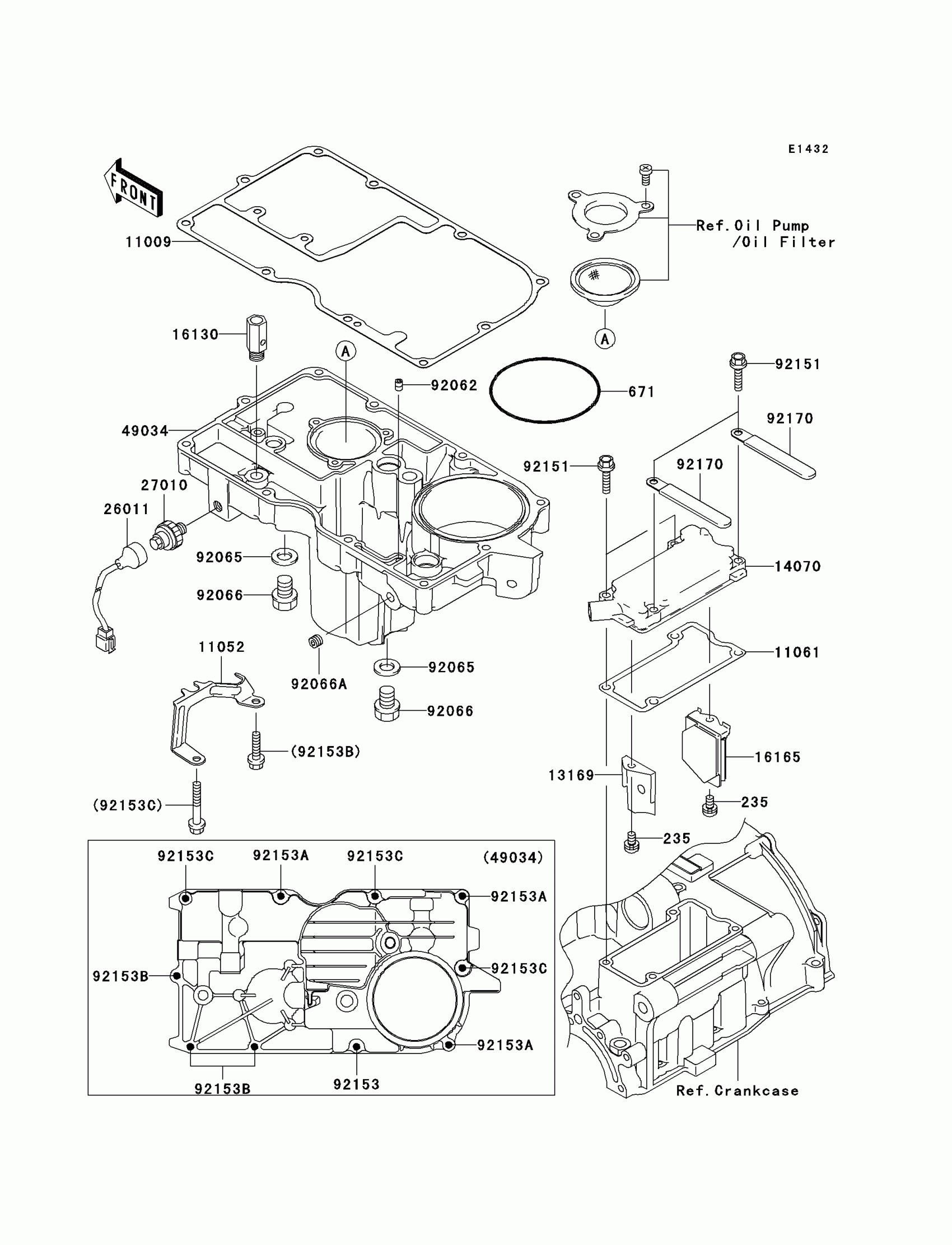

Kawasaki ZZR1200 Breather Cover/Oil Pan Diagram

Description

Price

235

SCREW-PAN-WP-CROS,6X10

235B0610

Unavailable

671

O RING,90MM

671B2590

$7.54

11009

GASKET,OIL PAN

11009-1981

$22.69

11052

BRACKET

11052-1961

$11.71

11061

GASKET,BREATHER BODY

11061-1102

$10.86

13169

PLATE,BREATHER

13169-1967

$7.47

14070

BODY-BREATHER

14070-1086

$89.85

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16165

SEPARATOR,OIL

16165-1053

$49.85

26011

WIRE-LEAD,OIL PRESSURE

26011-1811

$21.95

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

49034

PAN-OIL

49034-1145

$249.76

92062

NOZZLE,6X8,BLACK

92062-1079

$8.37

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066A

PLUG,PT1/8X7

92066-1342

$5.66

92151

BOLT,FLANGED,6X25

92151-1546

$1.70

92153

BOLT,6X25

92153-1054

$2.29

92153A

BOLT,6X40

92153-1055

$2.64

92153B

BOLT,6X25

92153-1071

$2.29

92153C

BOLT,6X40

92153-1072

$2.28

92170

CLAMP

92170-1925

$1.98
