2000 Kawasaki ZR-7 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

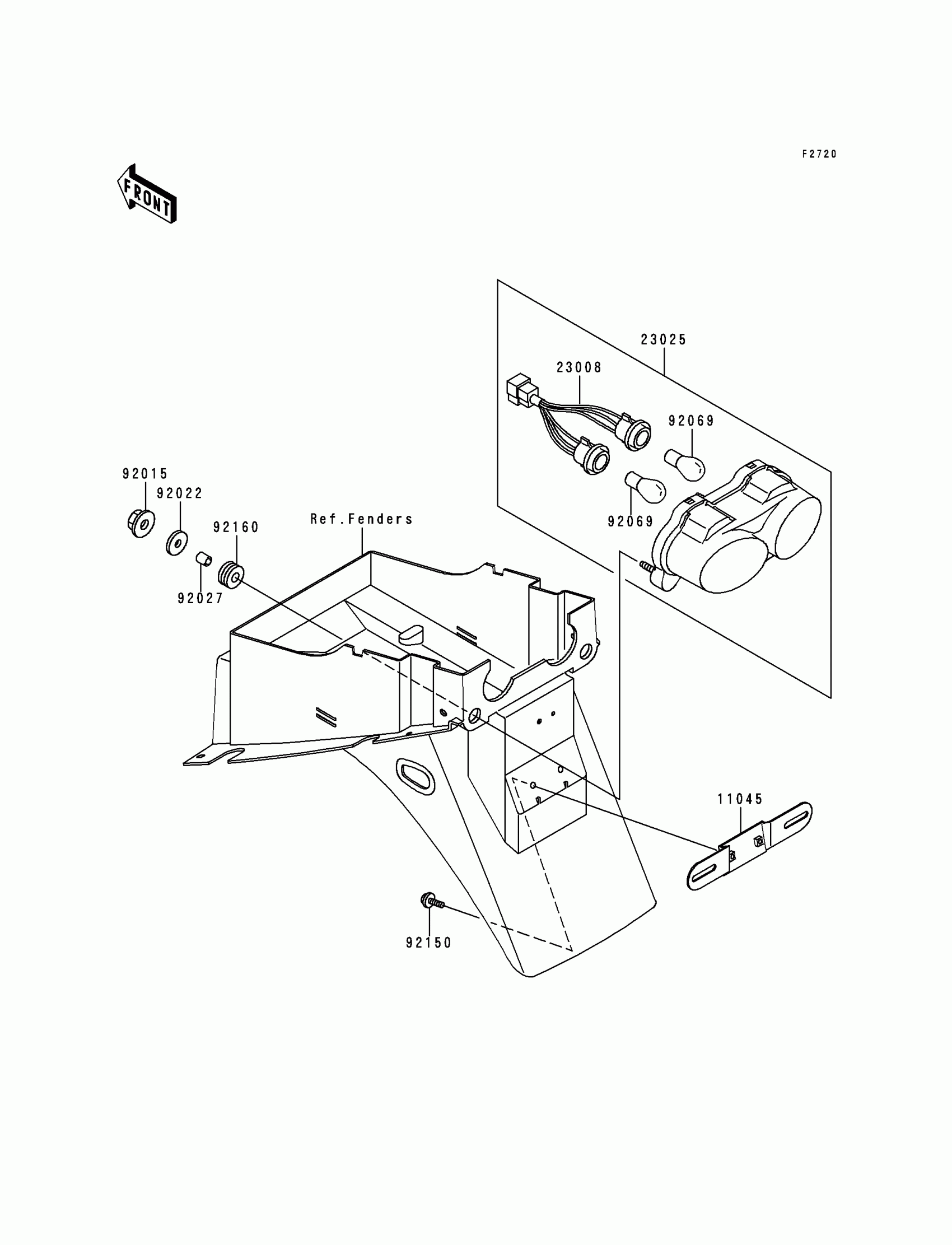

2000 Kawasaki ZR-7 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

23008

1

$47.62

In stock

23025

LAMP-TAIL

23025-1269

1

$229.30

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92150

BOLT,6X16

92150-1909

1

$3.56

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock
