2000 Kawasaki ZR-7 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

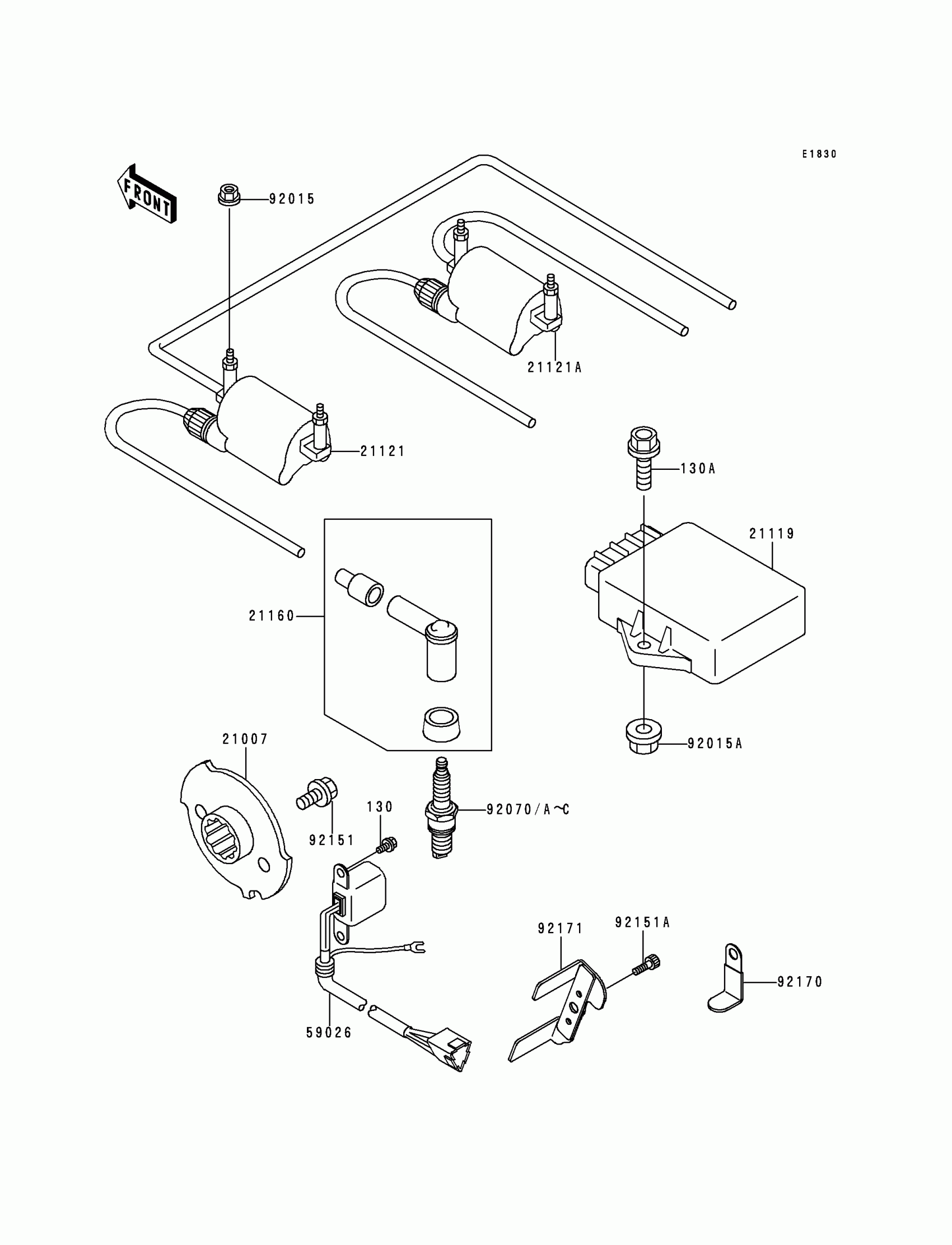

2000 Kawasaki ZR-7 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

21007

ROTOR

21007-1353

1
Out of stock

21119

IGNITER

21119-1541

1

$590.34

In stock

21121

COIL-IGNITION,#1

21121-1177

1

$142.02

In stock

21121A

COIL-IGNITION,#2

21121-1178

1

$142.02

In stock

21160

CAP-ASSY-PLUG

21160-1085

1

$27.25

In stock

59026

COIL-PULSING

59026-1152

1

$119.10

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT

92015-1700

1

$6.82

In stock

92070

Not Available As Spare Part - Friction Washer

—
Out of stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92070B

1

$2.74

In stock

92070C

—

$2.92

In stock

92151

BOLT,8X23

92151-1308

1
Out of stock

92151A

BOLT,SOCKET,5X12

92151-1365

1

$1.63

In stock

92170

CLAMP

92170-1728

1

$4.80

In stock

92171

CLAMP

92171-1150

1

$10.22

In stock
