2000 Kawasaki ZR-7 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

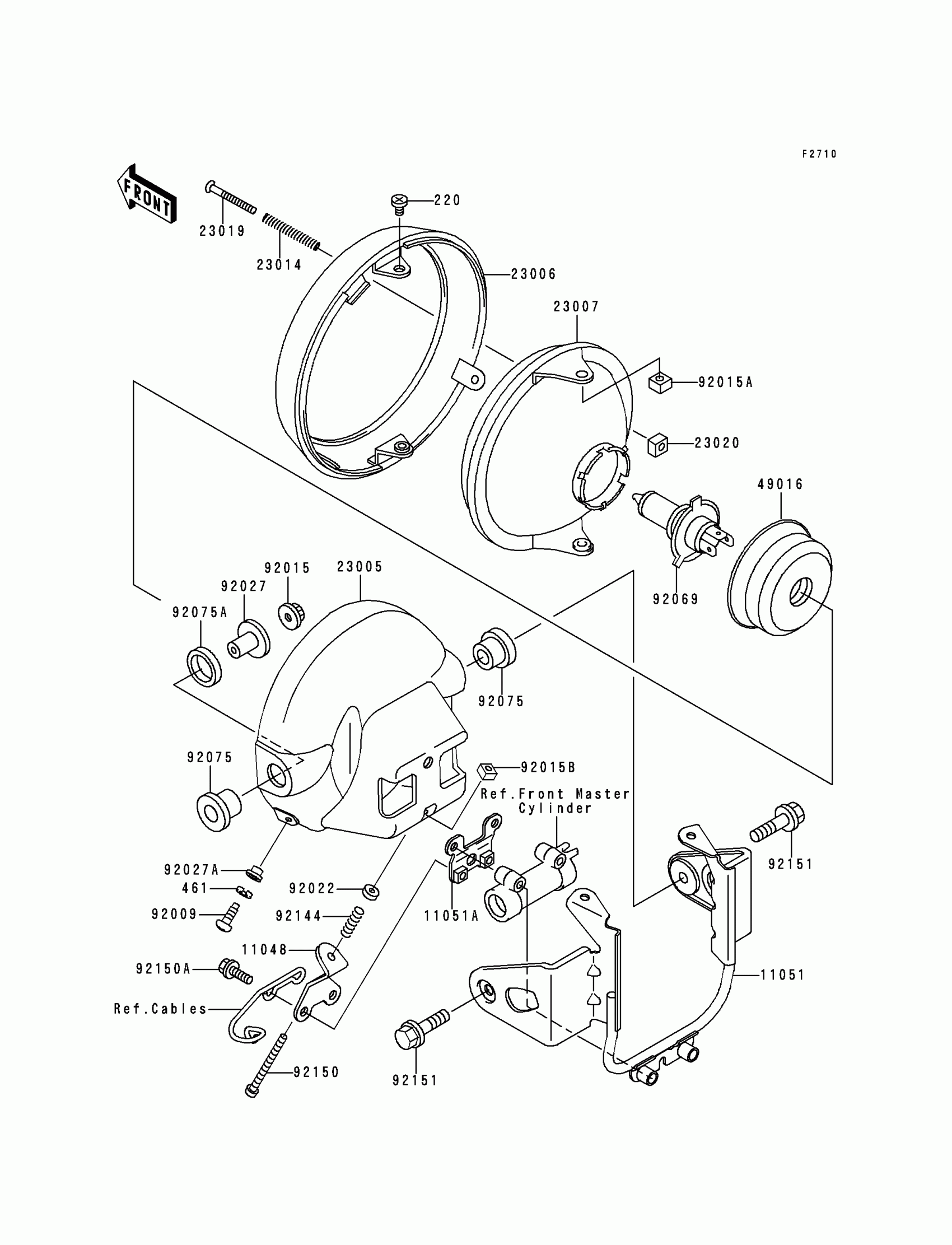

2000 Kawasaki ZR-7 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

11048

1

$7.44

In stock

11051

BRACKET,HEAD LAMP

11051-1255

1

$97.89

In stock

11051A

BRACKET

11051-1485

1

$10.68

In stock

23005

1

$127.52

In stock

23006

RIM-LAMP,CR PLATED

23006-1020

1

$65.92

In stock

23007

LENS-COMP,HEAD LAMP

23007-1371

1

$158.78

In stock

23014

1

$3.19

In stock

23019

1

$4.17

In stock

23020

1

$3.69

In stock

49016

1

$11.85

In stock

92009

SCREW,5X16

92009-1693

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,5MM

92015-1157

1
Out of stock

92015B

1

$3.88

In stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92027A

1

$3.92

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92144

SPRING

92144-1417

1

$4.10

In stock

92150

BOLT,ADJUST,5X45

92150-1590

1

$5.64

In stock

92150A

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock

92151

BOLT,FLANGED,8X40

92151-1532

1

$2.19

In stock
