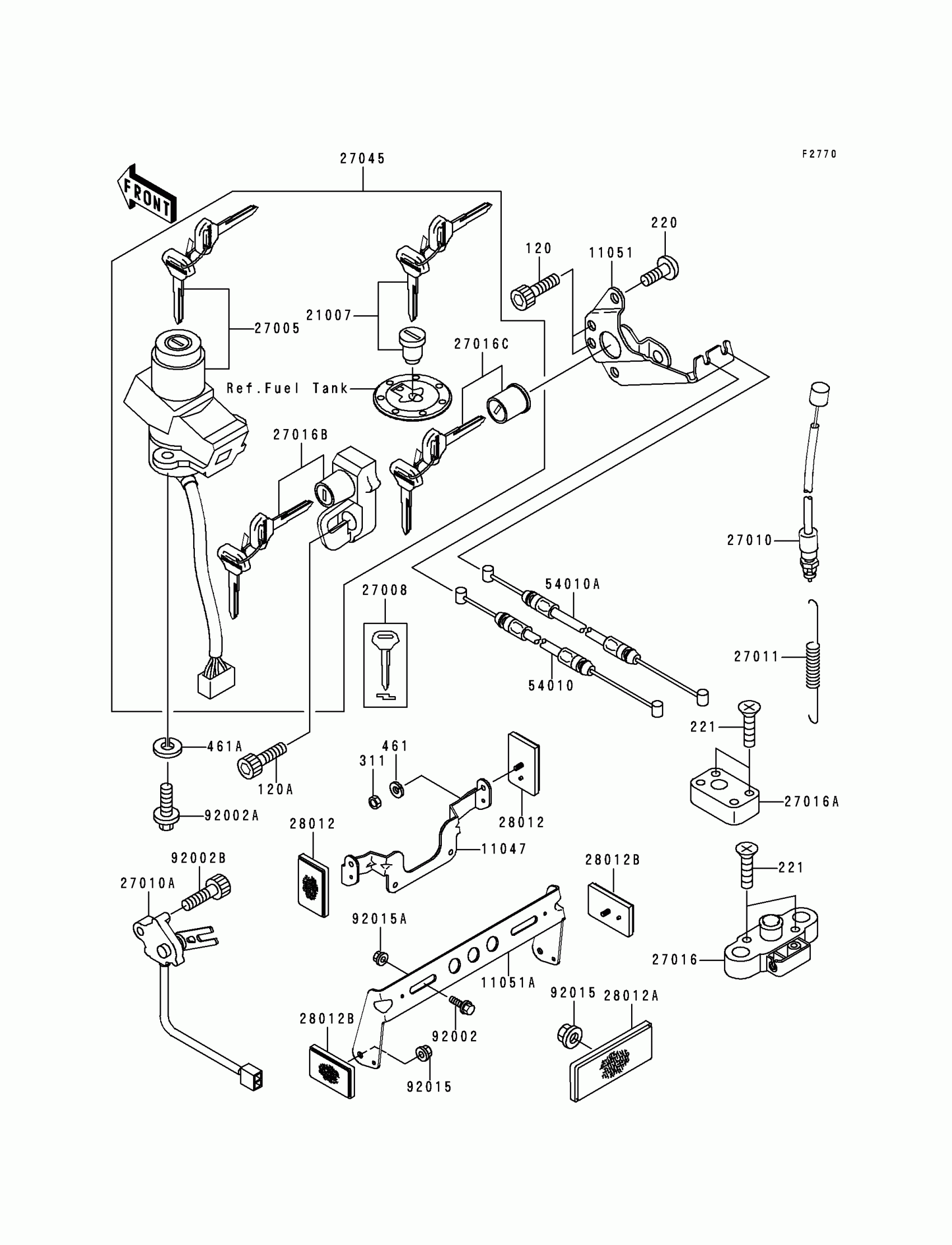

Kawasaki ZR-7 Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

120A

BOLT-SOCKET,6X18

120S0618

Unavailable

220

SCREW-PAN-CROS,6X8

220C0608

$1.33

221

SCREW-CSK-CROSS

221C0630

Unavailable

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER-SPRING

461L0600

$0.66

11047

BRACKET,REFLECTOR

11047-1280

$39.24

11051

BRACKET,SEAT LOCK

11051-1268

$11.25

11051A

BRACKET,SIDE REFLECTOR

11051-1276

$20.90

21007

ROTOR,LOCK,TANK CAP

21007-5042

$94.15

27005

SWITCH-ASSY-IGNITION

27005-5111

Unavailable

27008

KEY-LOCK,BLANK

27008-1189

$13.33

27010

SWITCH,REAR BRAKE

27010-1404

$33.00

27010A

SWITCH,SIDE STAND

27010-1411

$74.76

27011

SPRING,BRAKE LAMP SWITCH

27011-021

$19.94

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$86.38

27016A

LOCK-ASSY,SEAT STRIKER,RR

27016-1113

$74.81

27016B

LOCK-ASSY,HELMET

27016-5249

Unavailable

27016C

LOCK-ASSY,SEAT

27016-5257

$74.81

27045

SWITCH-ASSY

27045-5108

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

54010

CABLE,SEAT LOCK,FR

54010-1115

$17.63

54010A

CABLE,SEAT LOCK,TANDEM

54010-1116

$17.63

92002

BOLT,6X12

92002-1132

$1.14

92002A

BOLT,TORX,6X16

92002-1333

$1.85

92002B

BOLT,FLANGED,6X25

92002-1582

$4.17

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,FLANGED,6MM

92015-1367

$2.53
