2000 Kawasaki ZR-7 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

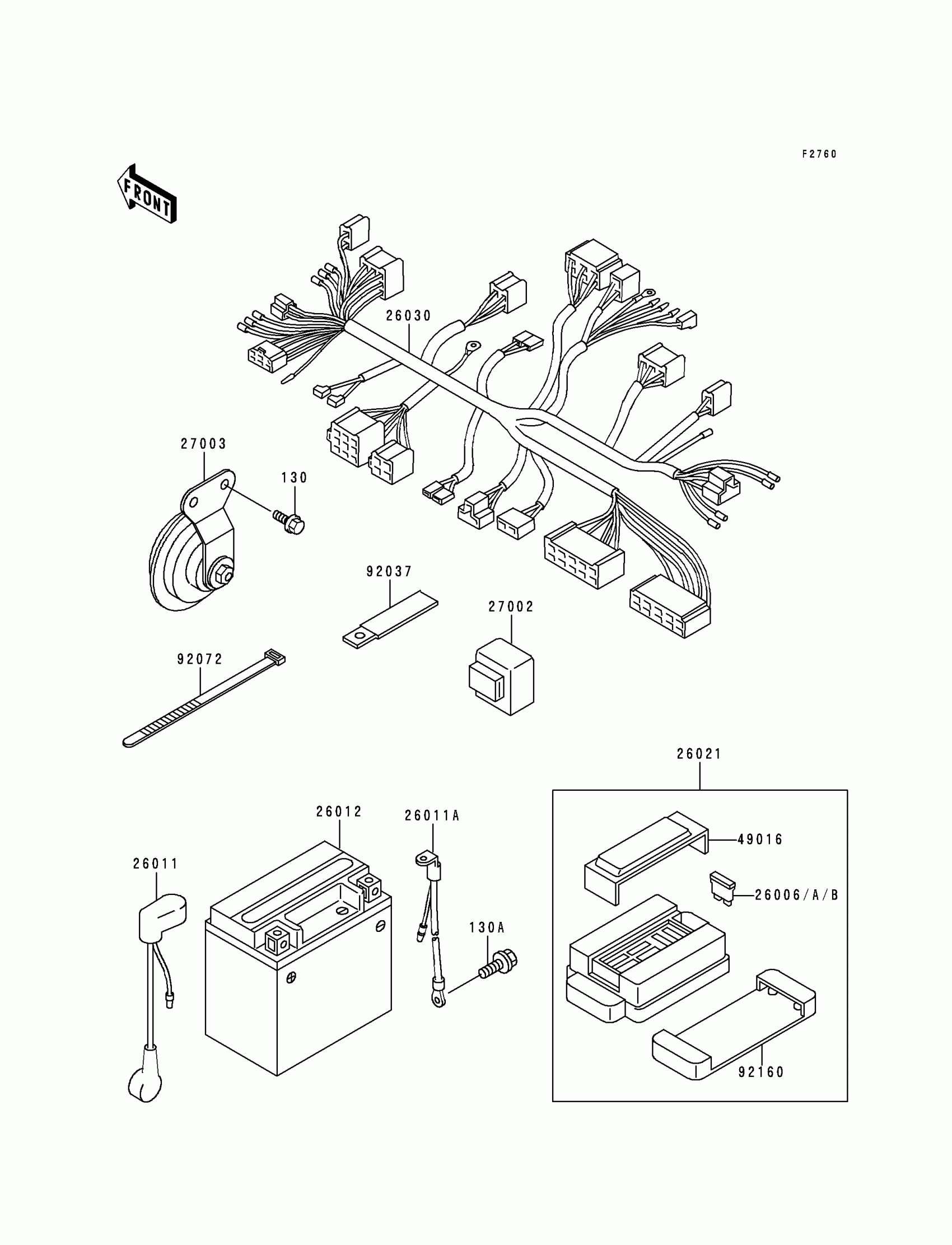

2000 Kawasaki ZR-7 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130A

BOLT-FLANGED,6X10

130V0610

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26006B

FUSE,15A-B

26006-1069

1

$4.80

In stock

26011

WIRE-LEAD,BATTERY(+)

26011-1722

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1723

1
Out of stock

26012

1

$121.05

In stock

26021

JUNCTION BOX

26021-1104

1

$218.24

In stock

26030

HARNESS,MAIN

26030-1659

1
Out of stock

27002

1

$73.74

In stock

27003

HORN

27003-1392

1

$85.47

In stock

49016

COVER-SEAL,FUSE

49016-1180

1

$13.29

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92160

DAMPER,JUNCTION BOX

92160-1650

1

$12.78

In stock
