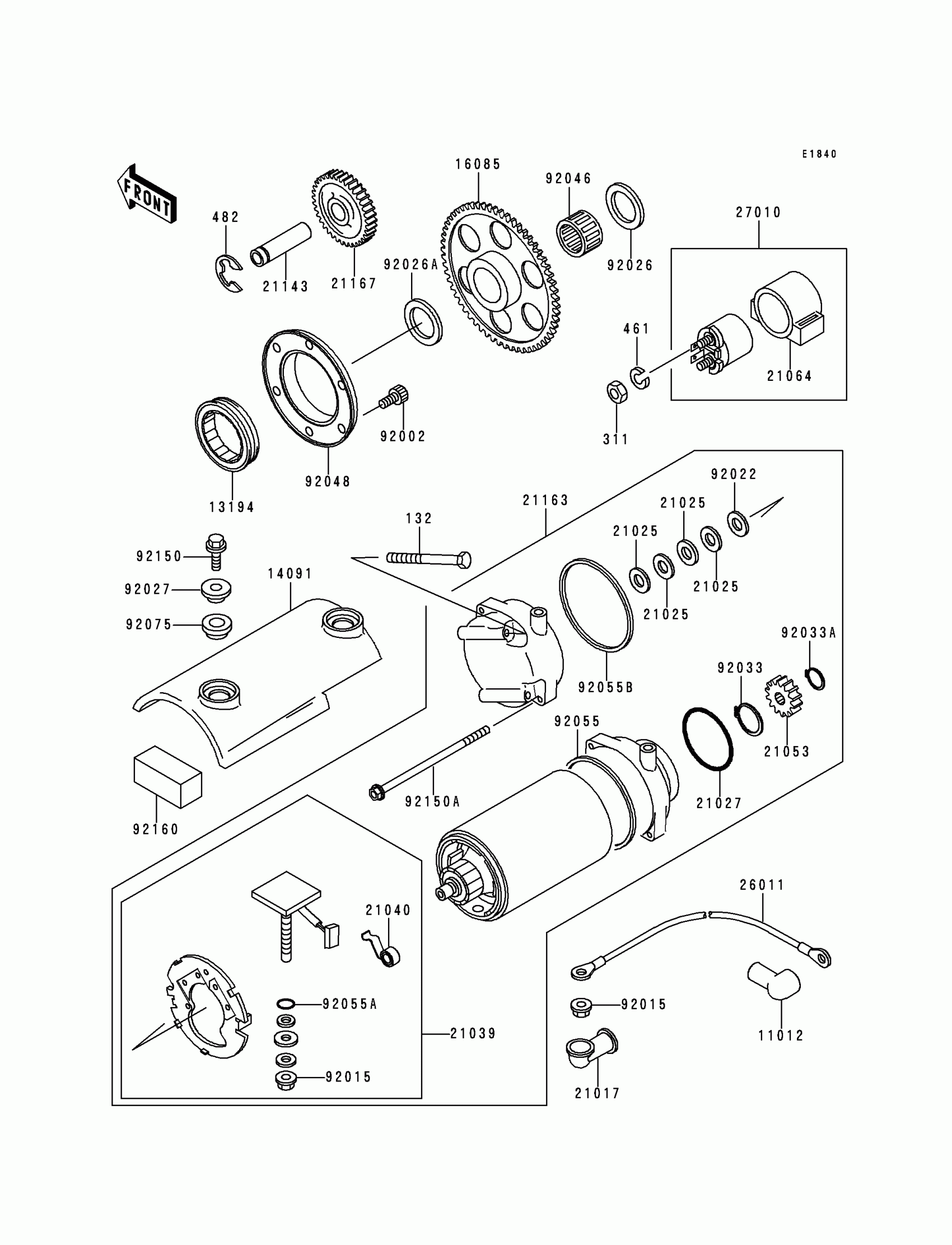

Kawasaki ZR-7 Starter Motor Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X60

132G0660

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

11012

CAP,TERMINAL

11012-1354

$9.85

13194

CLUTCH-ONEWAY

13194-1086

$108.18

14091

COVER,STERTERMOTOR

14091-1104

$79.16

16085

GEAR,STARTER,58T

16085-1300

$133.21

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21027

RING-O,40MM

21027-008

Unavailable

21039

BRUSH,CARBON

21039-1062

$88.27

21040

SPRING-BRUSH

21040-1057

$8.24

21053

SPROCKET-ASSY,STARTER

21053-004

$99.37

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21143

SHAFT,IDLE GEAR

21143-003

$14.81

21163

STARTER-ELECTRIC

21163-1222

$626.97

21167

GEAR-SPUR,IDLE,29T

21167-004

$102.83

26011

WIRE-LEAD,STARTER MOTOR

26011-1135

$75.70

27010

SWITCH,MAGNETIC

27010-1410

Unavailable

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,25X36X3.2

92026-1025

$5.37

92026A

SPACER,25.3X36X2.0

92026-1533

$13.31

92027

COLLAR,L=7.4

92027-1848

$3.57

92033

RING-SNAP,17MM

92033-034

$10.31

92033A

RING-SNAP,13MM

92033-037

$9.71

92046

BEARING-NEEDLE,K253017

92046-056

$22.46

92048

RACE,ONEWAY CLUTCH

92048-1068

$65.27

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92075

DAMPER

92075-1244

$4.41

92150

BOLT,FLANGED,6X16

92150-1506

$3.81

92150A

BOLT,FLANGED,6X120

92150-1729

$9.08

92160

DAMPER

92160-1272

$4.02
