2000 Kawasaki ZR-7 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

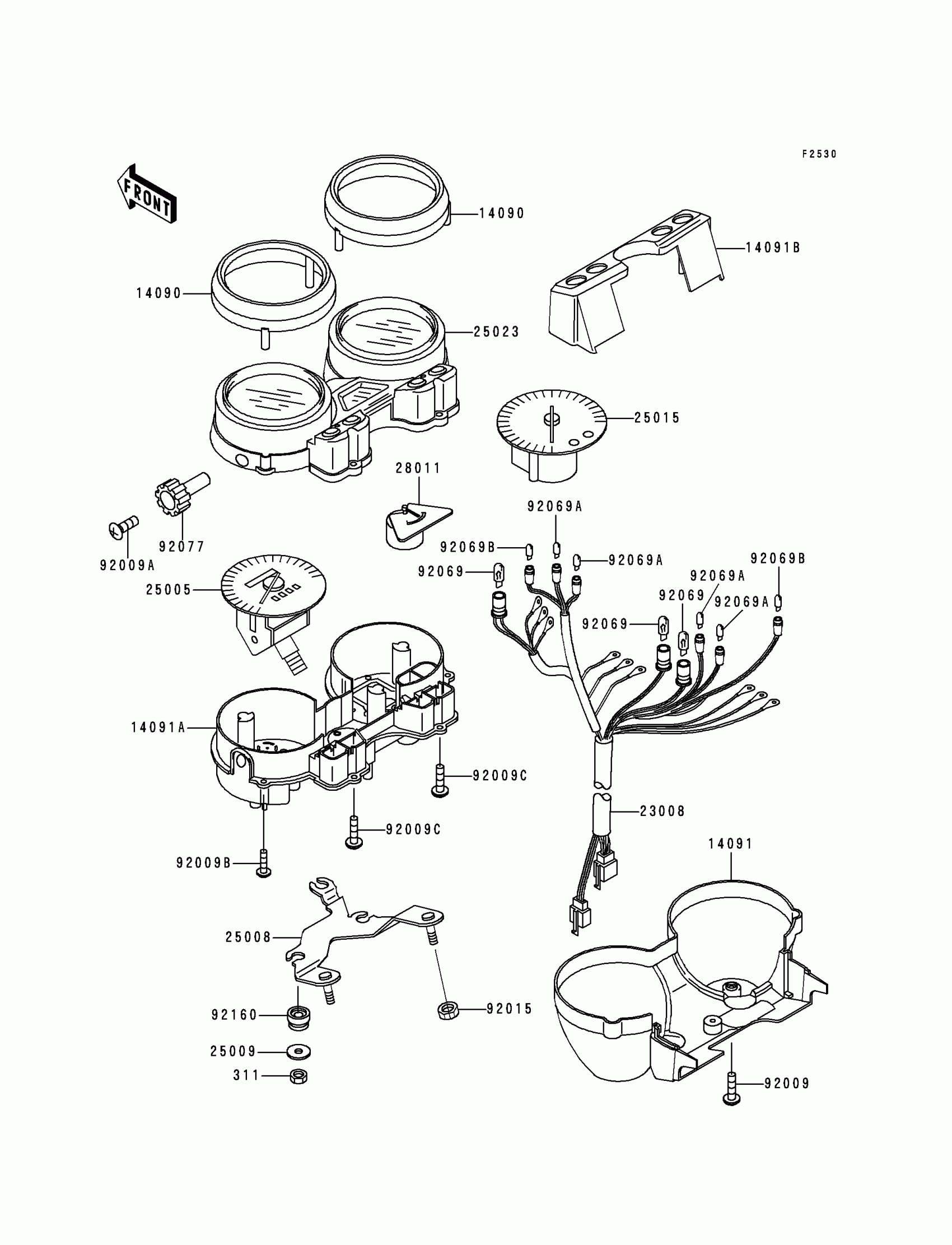

2000 Kawasaki ZR-7 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311C0500

1
Out of stock

14090

1

$34.68

In stock

14091

COVER,METER,LWR

14091-1105

1

$172.56

In stock

14091A

COVER,METER HOUSING

14091-1106

1

$151.67

In stock

14091B

COVER,PILOT BOX,UPP

14091-1154

1

$133.04

In stock

23008

SOCKET-ASSY,METER

23008-1610

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1659

1
Out of stock

25008

BRACKET-METER

25008-1213

1

$71.44

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

25015

1

$449.07

In stock

25023

1

$152.26

In stock

28011

METER,FUEL

28011-1198

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009B

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92009C

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92069

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92069A

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92069B

BULB,12V 1.7W,T6.5

92069-1070

1

$5.16

In stock

92077

KNOB,METER

92077-1073

1

$17.15

In stock

92160

DAMPER

92160-1178

1

$4.95

In stock
