1993 Kawasaki Zephyr 750 Tail Lamp Diagram

← All diagrams

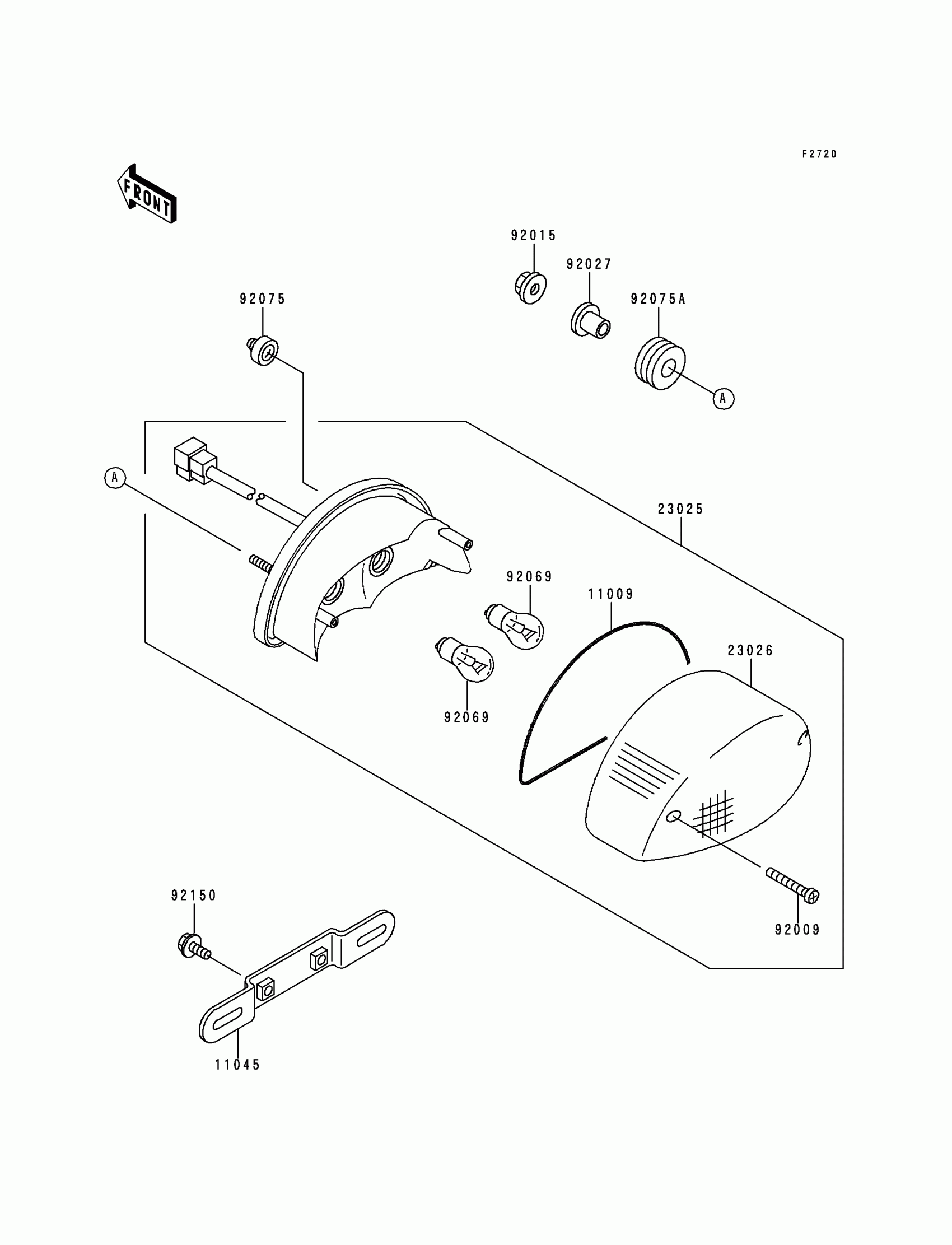

Find the part on the Tail Lamp diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP LENS

11009-1979

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

23025

LAMP-TAIL

23025-1217

1
Out of stock

23026

LENS,TAIL LAMP

23026-1123

1
Out of stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92075

DAMPER

92075-035

1

$3.65

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92150

BOLT,6X14

92150-1133

1

$3.57

In stock
