1993 Kawasaki Zephyr 750 Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

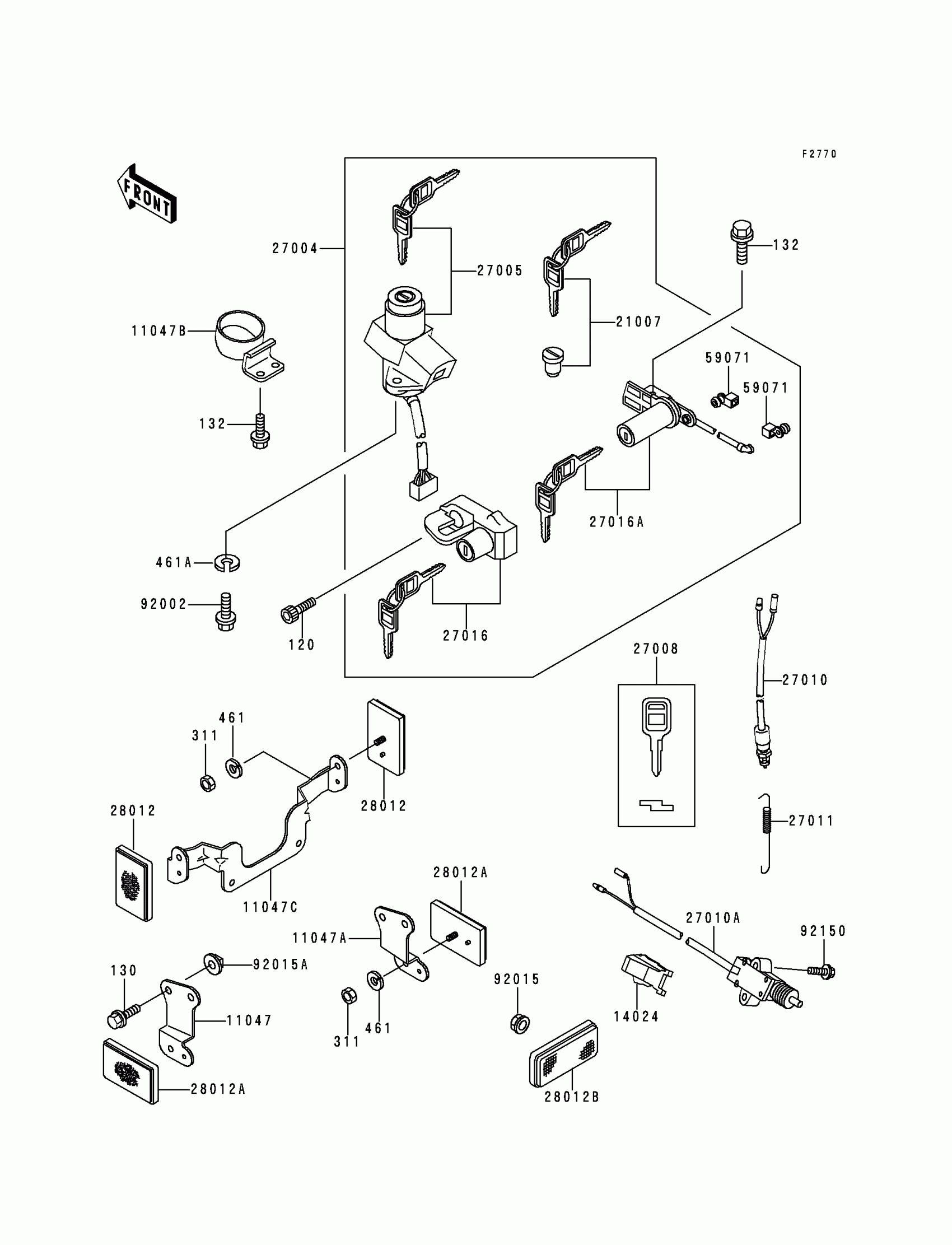

1993 Kawasaki Zephyr 750 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER-SPRING

461L0600

1
Out of stock

11047

BRACKET,REFLECTOR,RR,LH

11047-1086

1
Out of stock

11047A

BRACKET,REFLECTOR,RR,RH

11047-1087

1
Out of stock

11047B

BRACKET,IGNITION SWITCH GUARD

11047-1277

1
Out of stock

11047C

BRACKET,REFLECTOR

11047-1280

1
Out of stock

14024

1

$8.88

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5027

1
Out of stock

27004

SWITCH-ASSY

27004-5405

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5093

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1226

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-021

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5175

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5176

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

59071

JOINT

59071-1103

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,6MM

92015-1321

1
Out of stock

92150

BOLT,SOCKET,5X22

92150-1491

1
Out of stock
