1993 Kawasaki Zephyr 750 Ignition Coil Diagram

← All diagrams

Find the part on the Ignition Coil diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

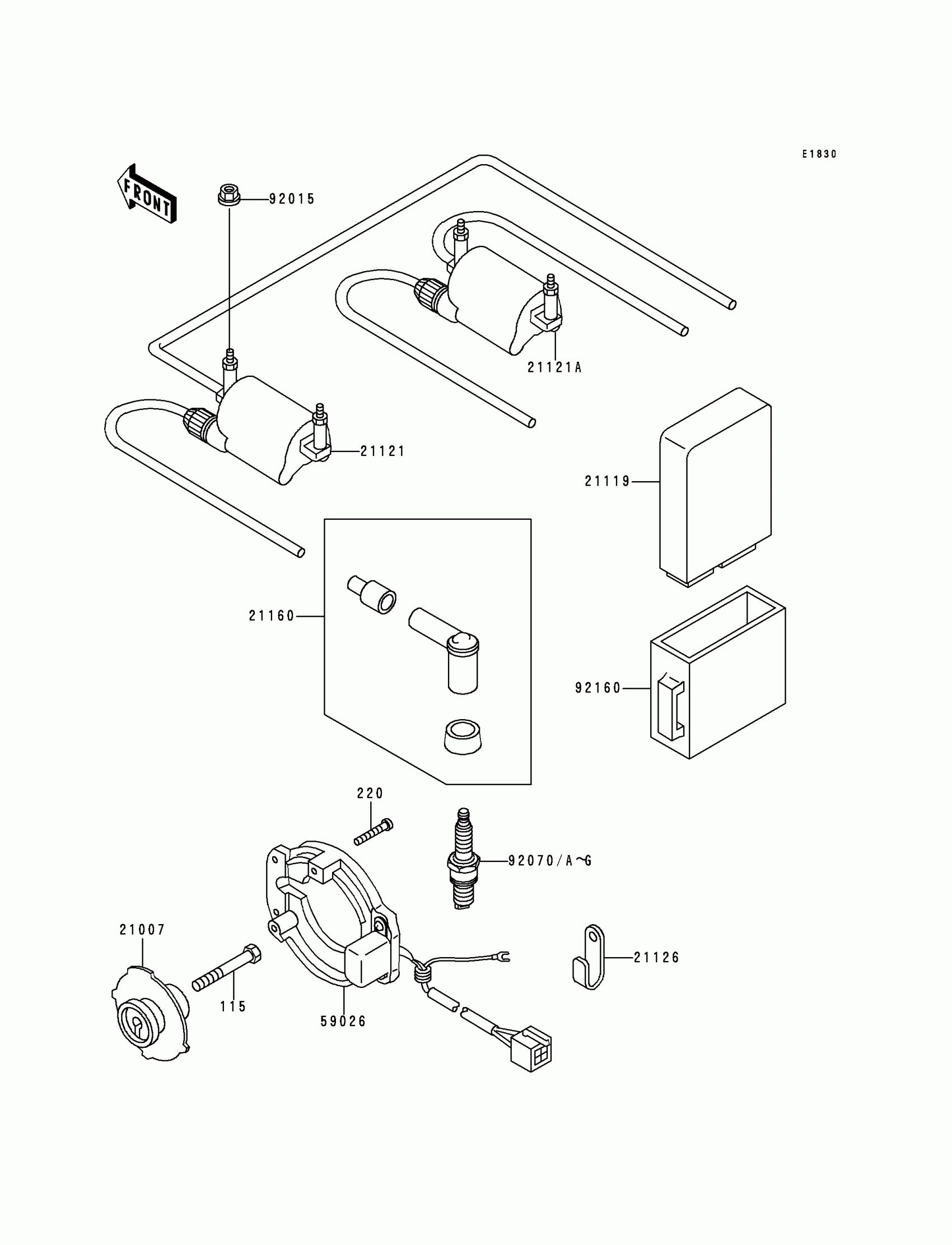

1993 Kawasaki Zephyr 750 Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

115

BOLT-SMALL-UPSET

115G0845

1
Out of stock

220

1

$3.24

In stock

21007

ROTOR,PULSING

21007-1218

1
Out of stock

21119

IGNITER

21119-1310

1

$515.66

In stock

21121

COIL-IGNITION,#1

21121-1177

1

$142.02

In stock

21121A

COIL-IGNITION,#2

21121-1178

1

$142.02

In stock

21126

1

$3.75

In stock

21160

CAP-ASSY-PLUG

21160-1085

1

$27.25

In stock

59026

COIL-PULSING

59026-1103

1

$154.60

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92070

Not Available As Spare Part - Friction Washer

—
Out of stock

92070B

1

$9.24

In stock

92070F

Not Available As Spare Part - Friction Washer

1
Out of stock

92070G

—

$2.92

In stock

92160

DAMPER,IGNITER

92160-1259

1

$20.88

In stock
