1993 Kawasaki Zephyr 750 Electrical Equipment Diagram

← All diagrams

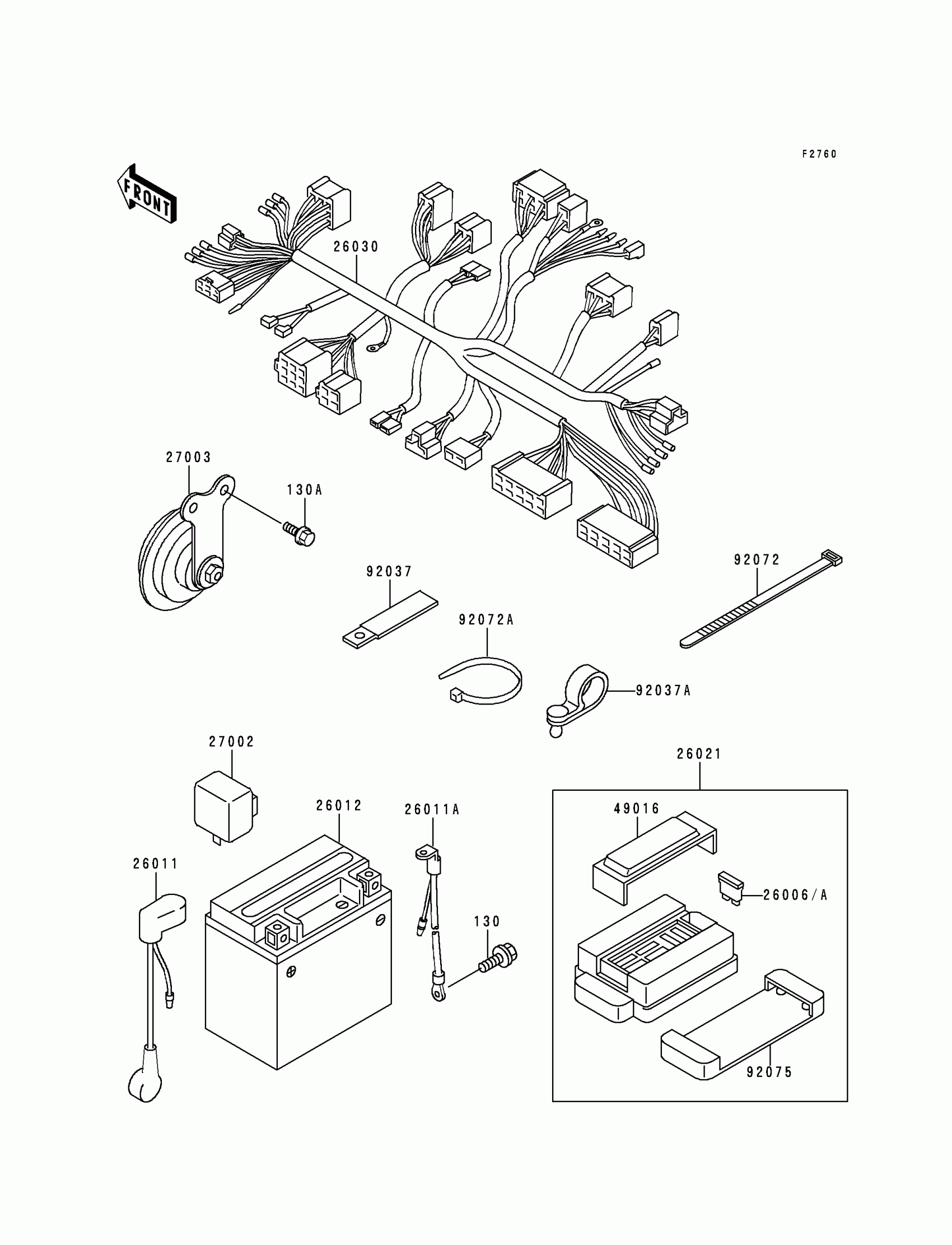

Find the part on the Electrical Equipment diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130C0612

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1188

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1402

1
Out of stock

26012

BATTERY,YTX12-BS,12V 10AH

26012-1253

1
Out of stock

26021

JUNCTION BOX

26021-1079

1
Out of stock

26030

HARNESS,MAIN

26030-1066

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

1
Out of stock

27003

HORN

27003-1348

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1106

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=43

92037-1290

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock
