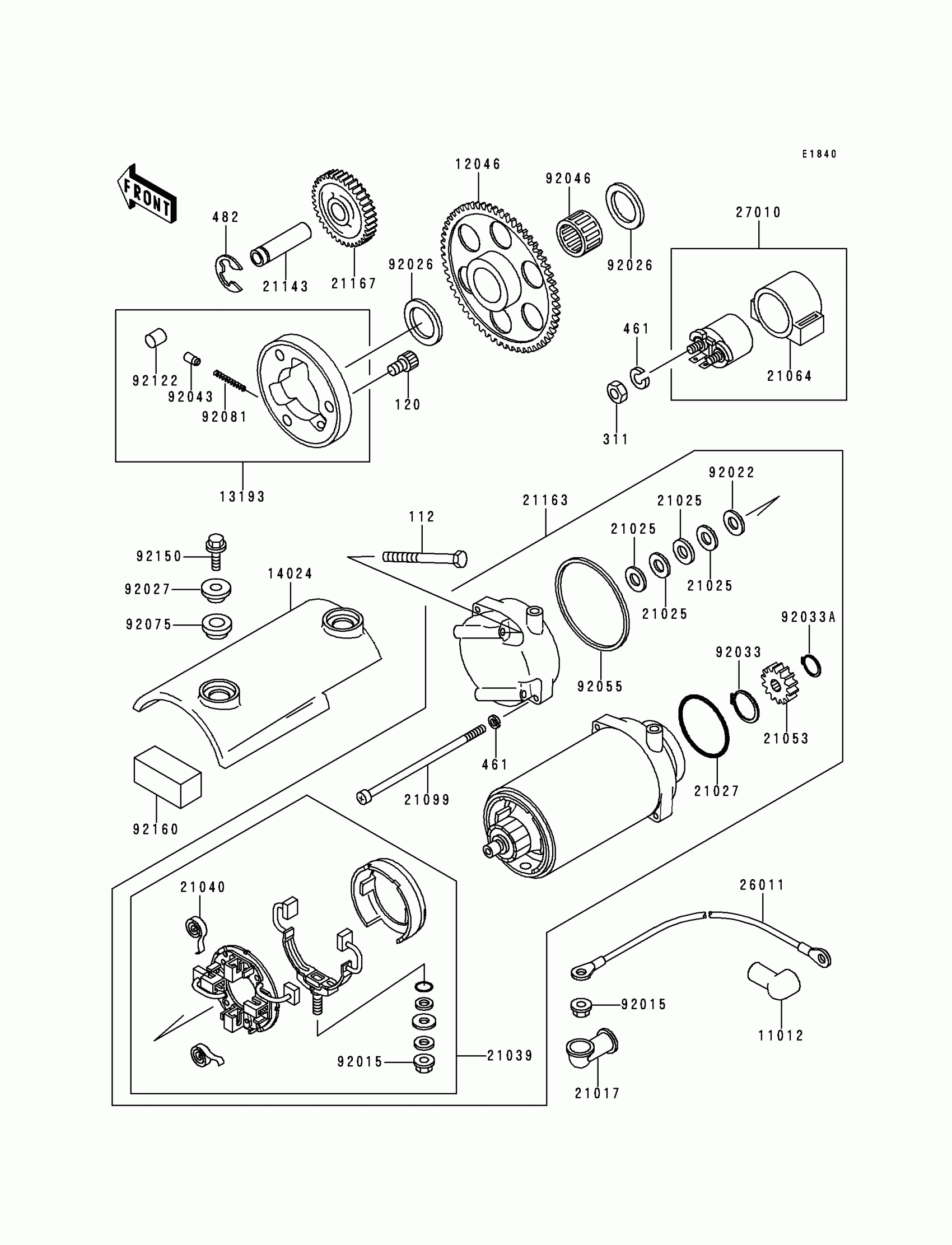

Find the part on the Starter Motor diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET

112G0660

1
Out of stock

120

BOLT-SOCKET,8X12

120P0812

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

482

CIRCLIP-TYPE-E,12MM

482J0200

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1
Out of stock

12046

SPROCKET,STARTER,58T

12046-1032

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1012

1
Out of stock

14024

COVER,STARTER MOTOR

14024-1972

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

1
Out of stock

21027

RING-O,40MM

21027-008

1
Out of stock

21039

BRUSH,CARBON

21039-1053

1
Out of stock

21040

SPRING-BRUSH

21040-1003

1
Out of stock

21053

SPROCKET-ASSY,STARTER

21053-004

1
Out of stock

21064

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

21099

SCREW,PAN HEAD,6X130

21099-006

1
Out of stock

21143

SHAFT,IDLE GEAR

21143-003

1
Out of stock

21163

STARTER-ELECTRIC

21163-1053

1
Out of stock

21167

GEAR-SPUR,IDLE,29T

21167-004

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1135

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1209

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92026

SPACER,25X36X3.2

92026-1025

1
Out of stock

92027

COLLAR,L=7.4

92027-1848

1
Out of stock

92033

RING-SNAP,17MM

92033-034

1
Out of stock

92033A

RING-SNAP,13MM

92033-037

1
Out of stock

92043

PIN

92043-087

1
Out of stock

92046

BEARING-NEEDLE,K253017

92046-056

1
Out of stock

92055

RING-O,64MM

92055-1086

1
Out of stock

92075

DAMPER

92075-1244

1
Out of stock

92081

SPRING

92081-110

1
Out of stock

92122

ROLLER,15X13

92122-004

1
Out of stock

92150

BOLT,FLANGED,6X12

92150-1235

1
Out of stock

92160

DAMPER

92160-1272

1
Out of stock
