1993 Kawasaki Zephyr 750 Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

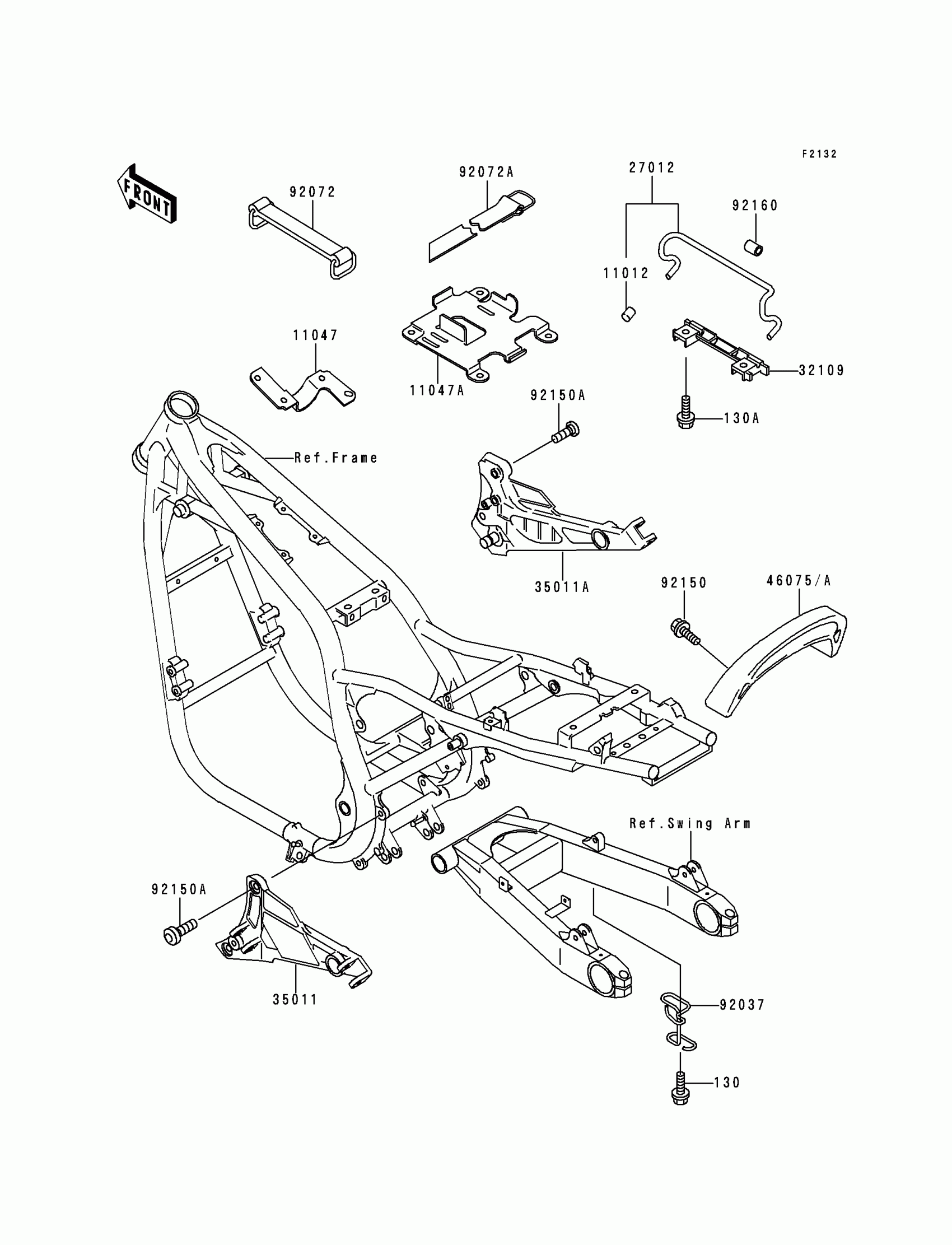

1993 Kawasaki Zephyr 750 Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,8X14

130J0814

1
Out of stock

11012

1

$7.63

In stock

11047

BRACKET,REGULATOR

11047-1178

1
Out of stock

27012

HOOK,BUNGEE CORD

27012-1398

1
Out of stock

32109

GRIP-FRAME

32109-1219

1

$66.57

In stock

35011

STAY,STEP HOLDER,LH,C.GRAY

35011-1544-EZ

1
Out of stock

35011A

STAY,STEP HOLDER,RH,C.GRAY

35011-1545-EZ

1
Out of stock

46075A

GRIP,TAIL,L.V.RED

46075-1093-P5

1

$324.93

In stock

92037

CLAMP,TUBE

92037-1942

1

$13.80

In stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92150

BOLT,SOCKET,8X20

92150-1155

1

$4.85

In stock

92150A

BOLT,SOCKET,10X25

92150-1401

1

$6.24

In stock

92160

DAMPER,4.5X11X20

92160-1074

1

$7.36

In stock
