1993 Kawasaki Zephyr 750 Generator Diagram

← All diagrams

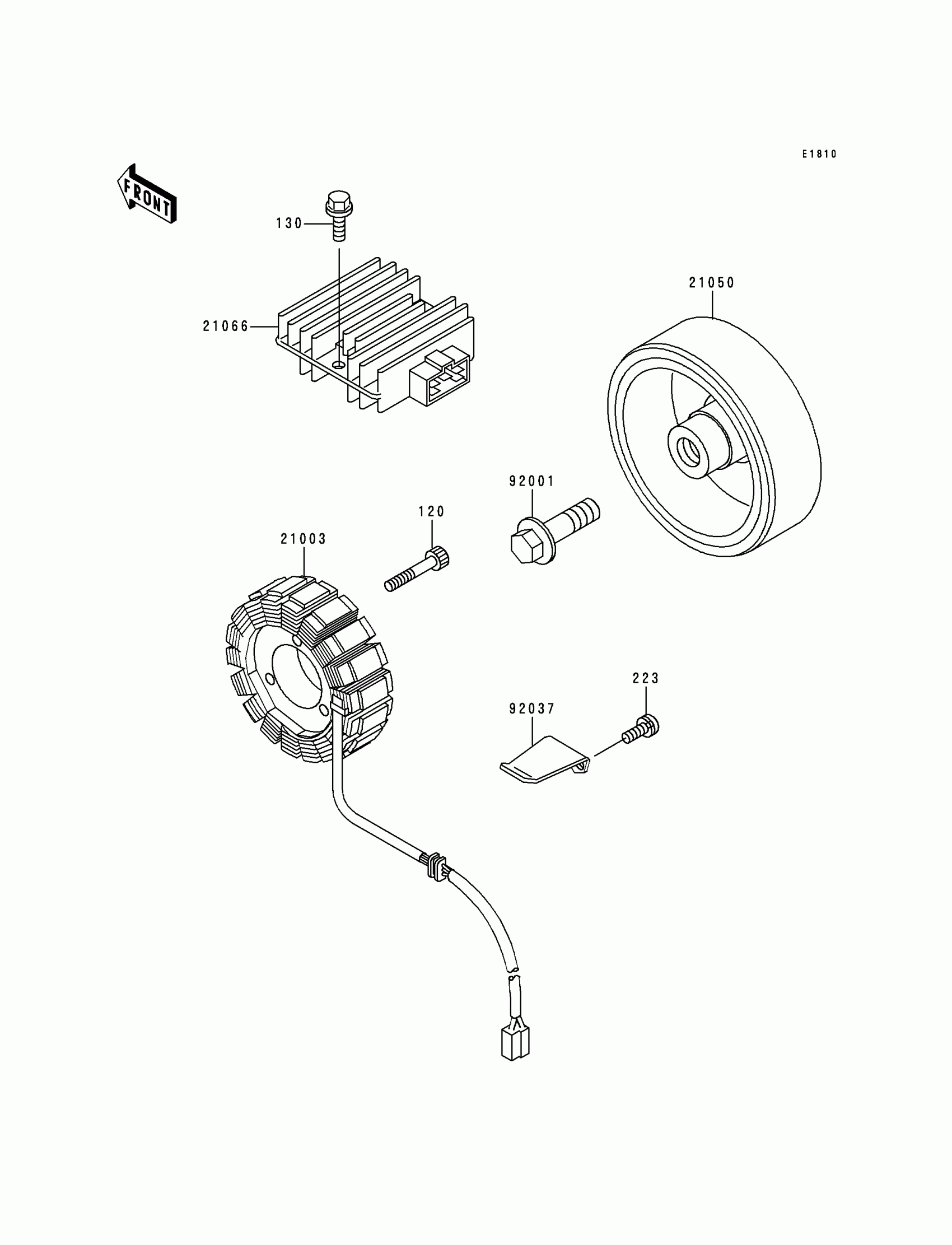

Find the part on the Generator diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X30

120P0530

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock

21003

STATOR

21003-1228

1
Out of stock

21050

FLYWHEEL

21050-1149

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-1055

1
Out of stock

92001

BOLT,FLANGED,12X40

92001-1146

1
Out of stock

92037

CLAMP,GENERATOR LEAD

92037-1122

1
Out of stock
