1993 Kawasaki Zephyr 750 Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

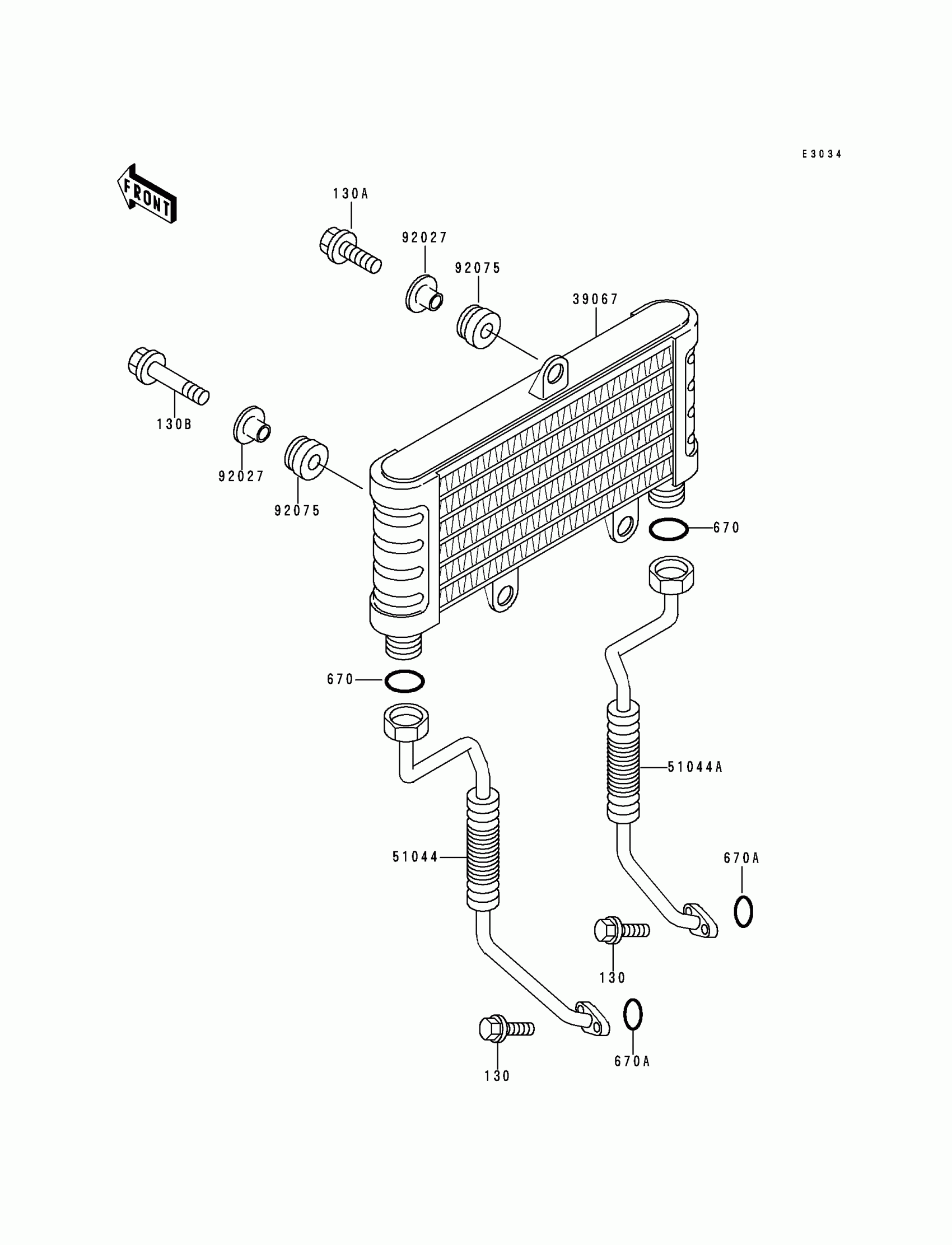

1993 Kawasaki Zephyr 750 Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130G0616

1
Out of stock

130A

BOLT-FLANGED,6X25

130J0625

1
Out of stock

130B

BOLT-FLANGED,6X45,BLACK

130J0645

1
Out of stock

670

O RING,8MM

670B1508

1
Out of stock

670A

O RING,12MM

670B2012

1
Out of stock

39067

COOLER-OIL

39067-1055

1
Out of stock

51044

TUBE-ASSY,LH

51044-1139

1
Out of stock

51044A

TUBE-ASSY,RH

51044-1140

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock
