1993 Kawasaki Zephyr 750 Oil Pump Diagram

← All diagrams

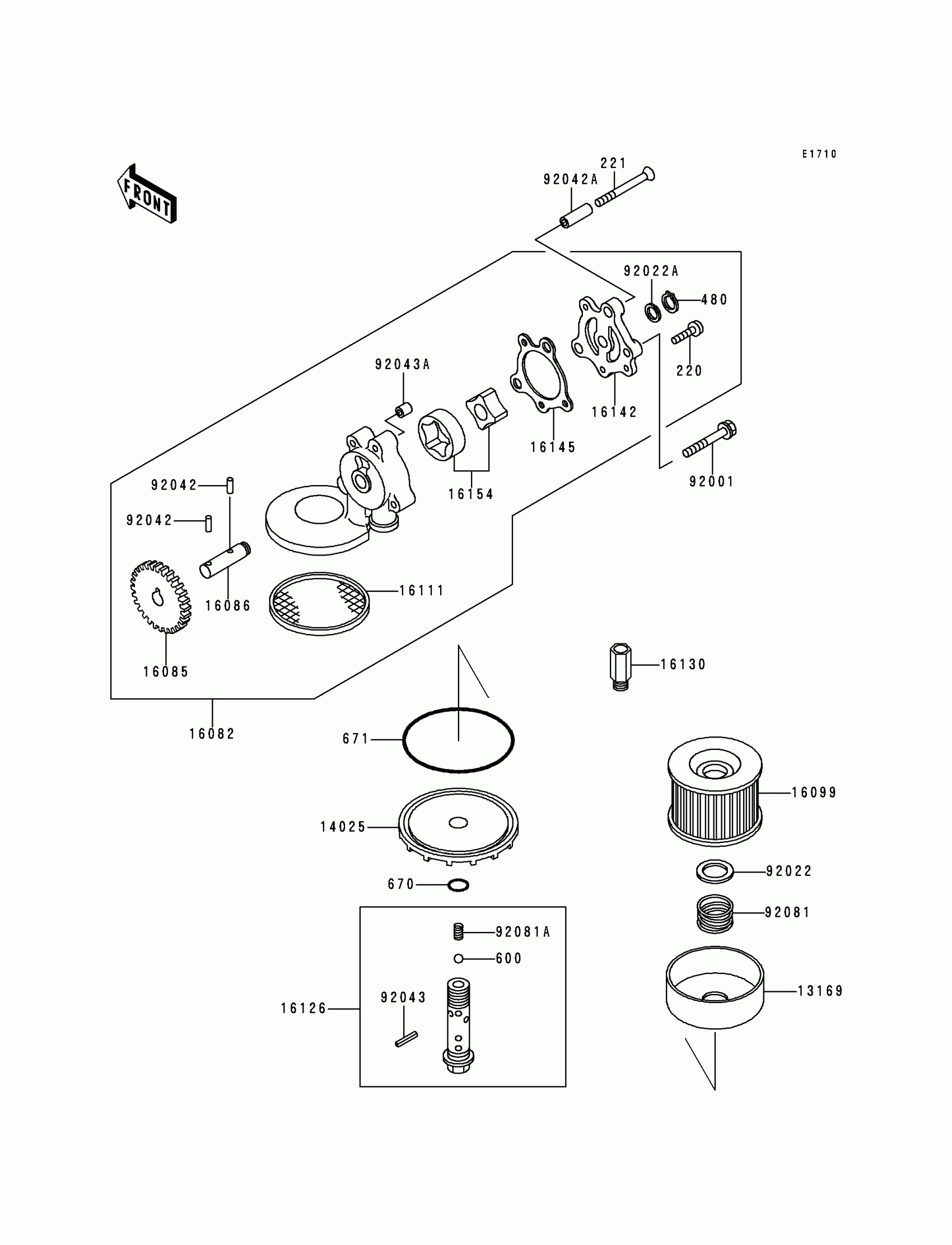

Find the part on the Oil Pump diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$2.92

In stock

221

SCREW-CSK-CROS,6X55

221B0655

1
Out of stock

480

1

$0.99

In stock

600

BALL-STEEL,3/8"

600A1200

1

$1.32

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

671

O RING,90MM

671B2590

1

$7.86

In stock

13169

PLATE,OIL FILTER

13169-1110

1

$7.49

In stock

14025

COVER,OIL FILTER,F.BLACK

14025-1422

1
Out of stock

16082

PUMP-ASSY-OIL

16082-064

1
Out of stock

16085

GEAR,OIL PUMP,57T

16085-025

1
Out of stock

16086

SHAFT,OIL PUMP

16086-004

1
Out of stock

16099

ELEMENT-OIL FILTER

16099-003

1

$9.67

In stock

16111

FILTER,OIL PUMP

16111-004

1

$45.22

In stock

16126

VALVE,OIL FILTER

16126-1108

1

$38.20

In stock

16130

VALVE-ASSY-RELIEF

16130-1001

1

$41.95

In stock

16142

COVER-PUMP

16142-005

1

$39.24

In stock

16145

1

$2.66

In stock

16154

ROTOR-PUMP

16154-003

1

$89.99

In stock

92001

BOLT,FLANGED,6X45

92001-165

1

$4.16

In stock

92022

WASHER,20.5X30X1

92022-1012

1

$3.46

In stock

92022A

WASHER,11.2X15X1

92022-311

1
Out of stock

92042

PIN,DOWEL,4X12.8

92042-041

1

$5.71

In stock

92042A

PIN,DOWEL,8X28

92042-050

1

$3.85

In stock

92043

PIN,SPRING,2X20

92043-111

1

$5.46

In stock

92043A

PIN,DOWEL,8X10

92043-1302

1

$0.97

In stock

92081

SPRING,OIL FILTER

92081-1018

1

$3.69

In stock

92081A

SPRING

92081-109

1

$10.85

In stock
