1993 Kawasaki Zephyr 750 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

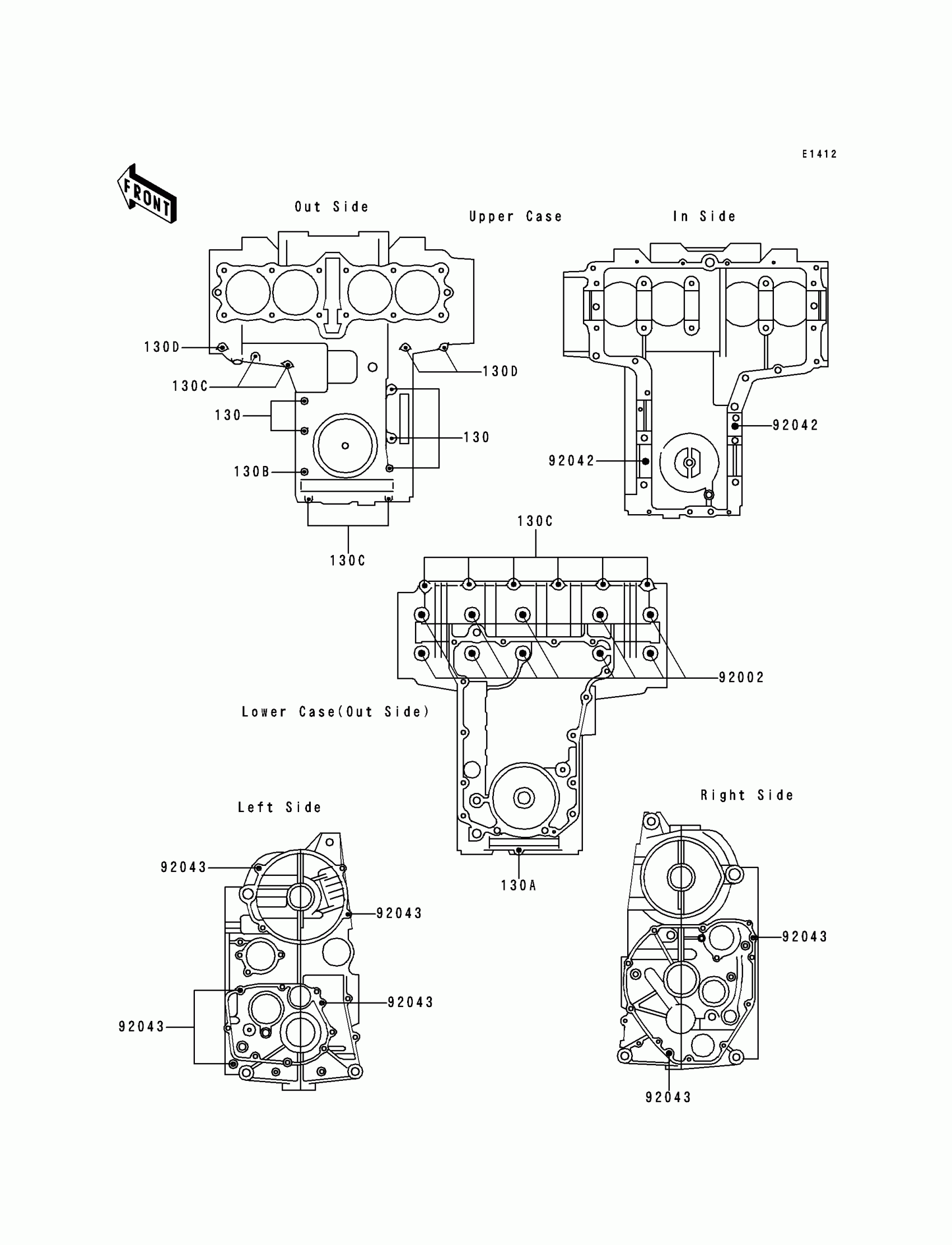

1993 Kawasaki Zephyr 750 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130Y06100

1
Out of stock

130A

BOLT-FLANGED

130Y06105

1
Out of stock

130B

BOLT-FLANGED

130Y06115

1
Out of stock

130C

BOLT-FLANGED

130Y0640

1
Out of stock

130D

BOLT-FLANGED

130Y0650

1
Out of stock

92002

BOLT,8X95

92002-1077

1

$10.63

In stock

92042

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock
