1993 Kawasaki Zephyr 750 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

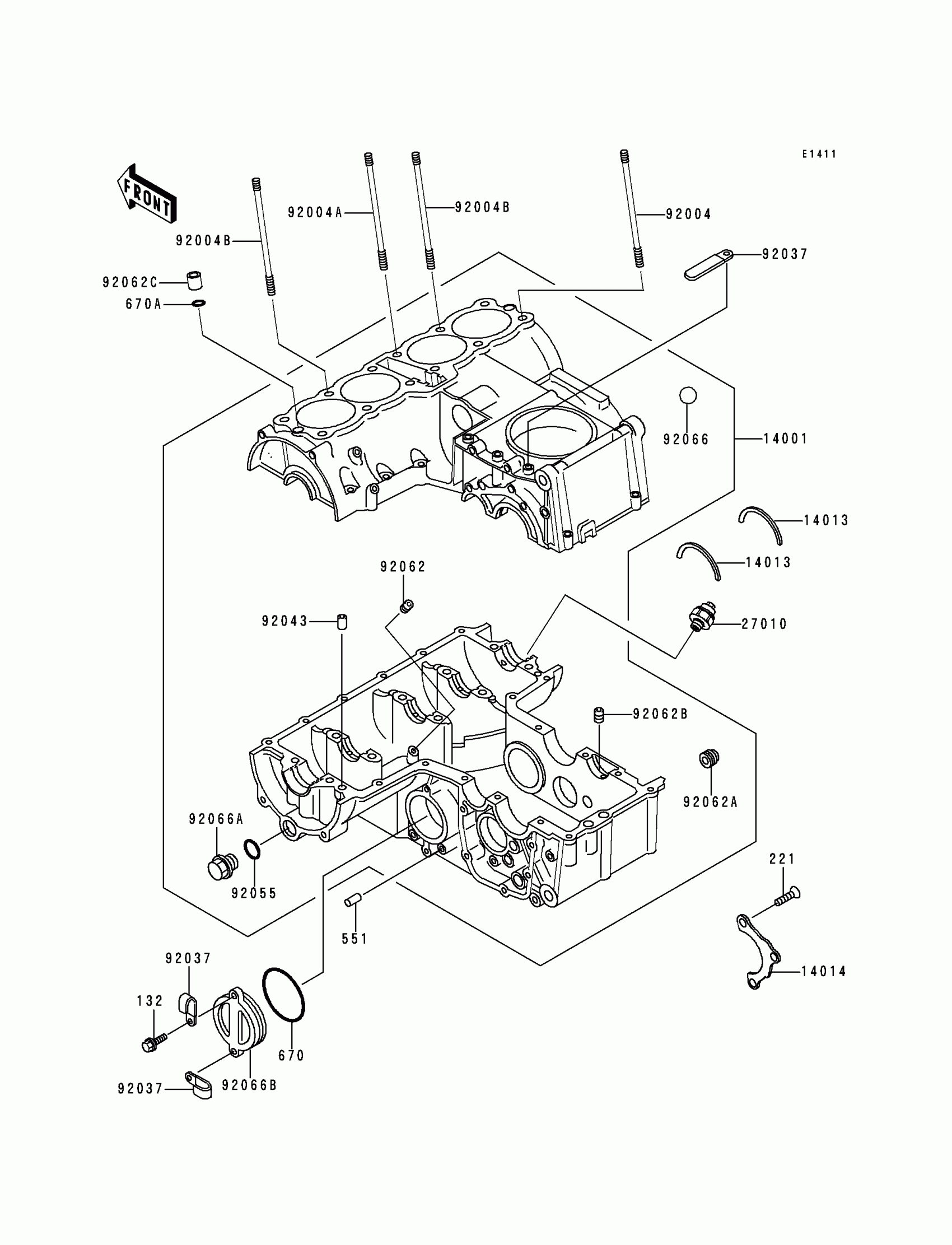

1993 Kawasaki Zephyr 750 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

221

1

$1.98

In stock

551

PIN-DOWEL,6X14

551A0614

1

$3.53

In stock

670

O RING,46MM

670B3046

1

$4.94

In stock

670A

O RING,10MM

670D2010

1

$1.63

In stock

14001

SET-CRANKCASE

14001-5288

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION,SECONDARY SHAFT

14014-1007

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1155

1

$36.57

In stock

92004

STUD

92004-1114

1
Out of stock

92004A

STUD,10X130

92004-1205

1
Out of stock

92004B

STUD,10X93

92004-1206

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92062

NOZZLE,BLACK

92062-011

1

$8.37

In stock

92062A

NOZZLE

92062-014

1

$9.56

In stock

92062B

NOZZLE,SILVER

92062-015

1

$3.22

In stock

92062C

NOZZLE

92062-016

1
Out of stock

92066

1

$4.58

In stock

92066A

PLUG,18X9

92066-066

1

$8.69

In stock

92066B

1

$18.53

In stock
