1993 Kawasaki Zephyr 750 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

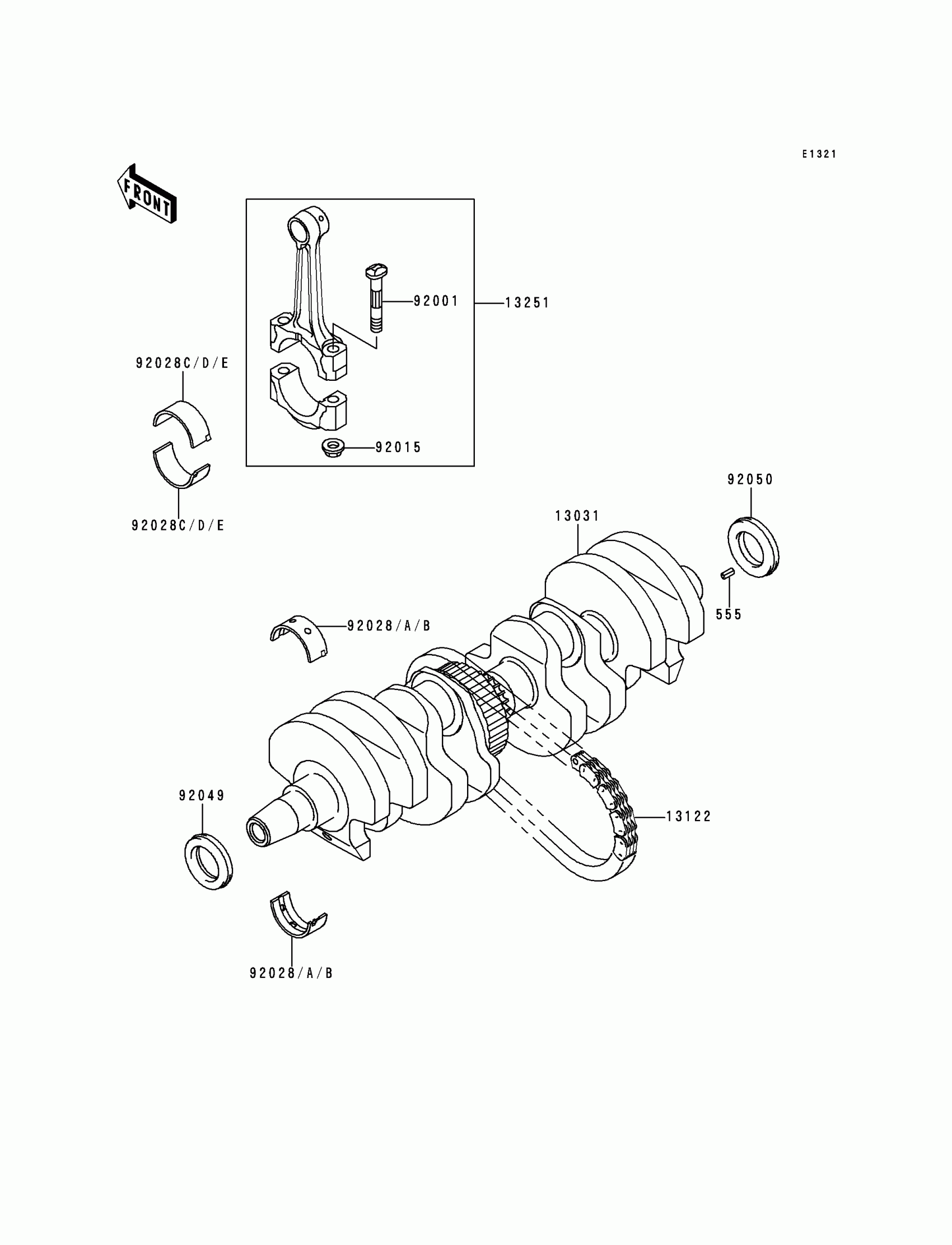

1993 Kawasaki Zephyr 750 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

555

PIN-SPRING,4X8

555A0408

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1314

1
Out of stock

13122

CHAIN,63-139X52L(TUBAKIMOTO)

13122-007

1
Out of stock

13251

ROD-ASSY-CONNECTING,J

13251-1065-JJ

1
Out of stock

92001

BOLT,CONNECTING ROD,8MM

92001-1887

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

BUSHING,CRANKSHAFT,BLUE

92028-1100

1
Out of stock

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1101

—
Out of stock

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1102

—
Out of stock

92028C

BUSHING,CONNECTING ROD,BLUE

92028-1203

1
Out of stock

92028D

BUSHING,CONNECTING ROD,BLACK

92028-1204

—
Out of stock

92028E

BUSHING,CONNECTING ROD,BROWN

92028-1205

—
Out of stock

92049

SEAL-OIL,HSCY25X39X7

92049-1090

1
Out of stock

92050

SEAL-OIL,HSCY25397

92050-081

1
Out of stock
