1993 Kawasaki Zephyr 750 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

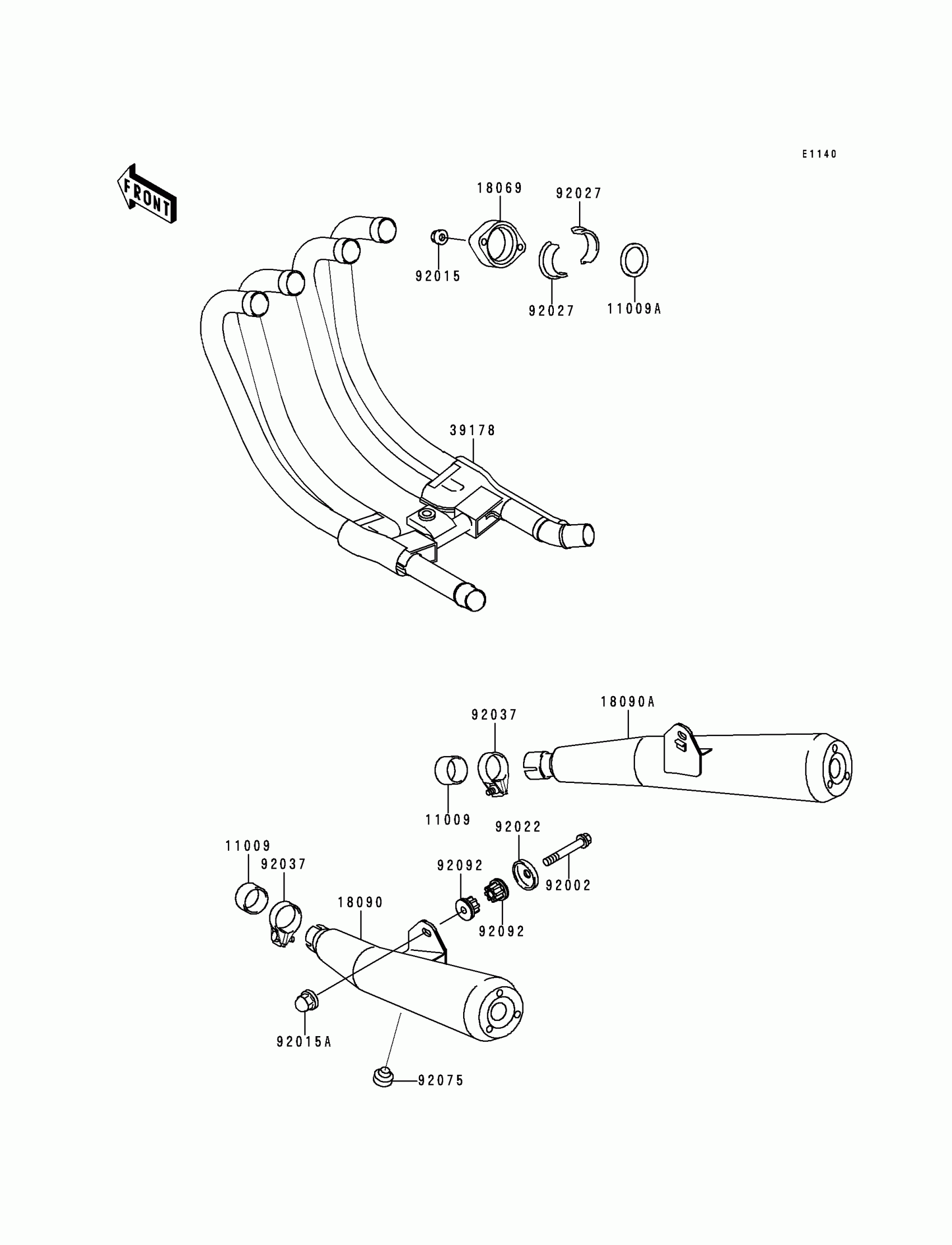

1993 Kawasaki Zephyr 750 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$21.24

In stock

11009A

1

$6.55

In stock

18069

HOLDER-EXHAUST PIPE

18069-1030

1

$28.75

In stock

18090

1

$598.56

In stock

18090A

1

$609.34

In stock

39178

MANIFOLD-COMP-EXHAUST

39178-1191

1
Out of stock

92002

BOLT,10X55

92002-1939

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1

$3.97

In stock

92015A

NUT,10MM

92015-1649

1

$3.95

In stock

92022

WASHER

92022-289

1
Out of stock

92027

COLLAR,L=14.5

92027-1142

1

$3.97

In stock

92037

CLAMP,42MM

92037-1349

1

$10.26

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92092

1

$13.70

In stock
