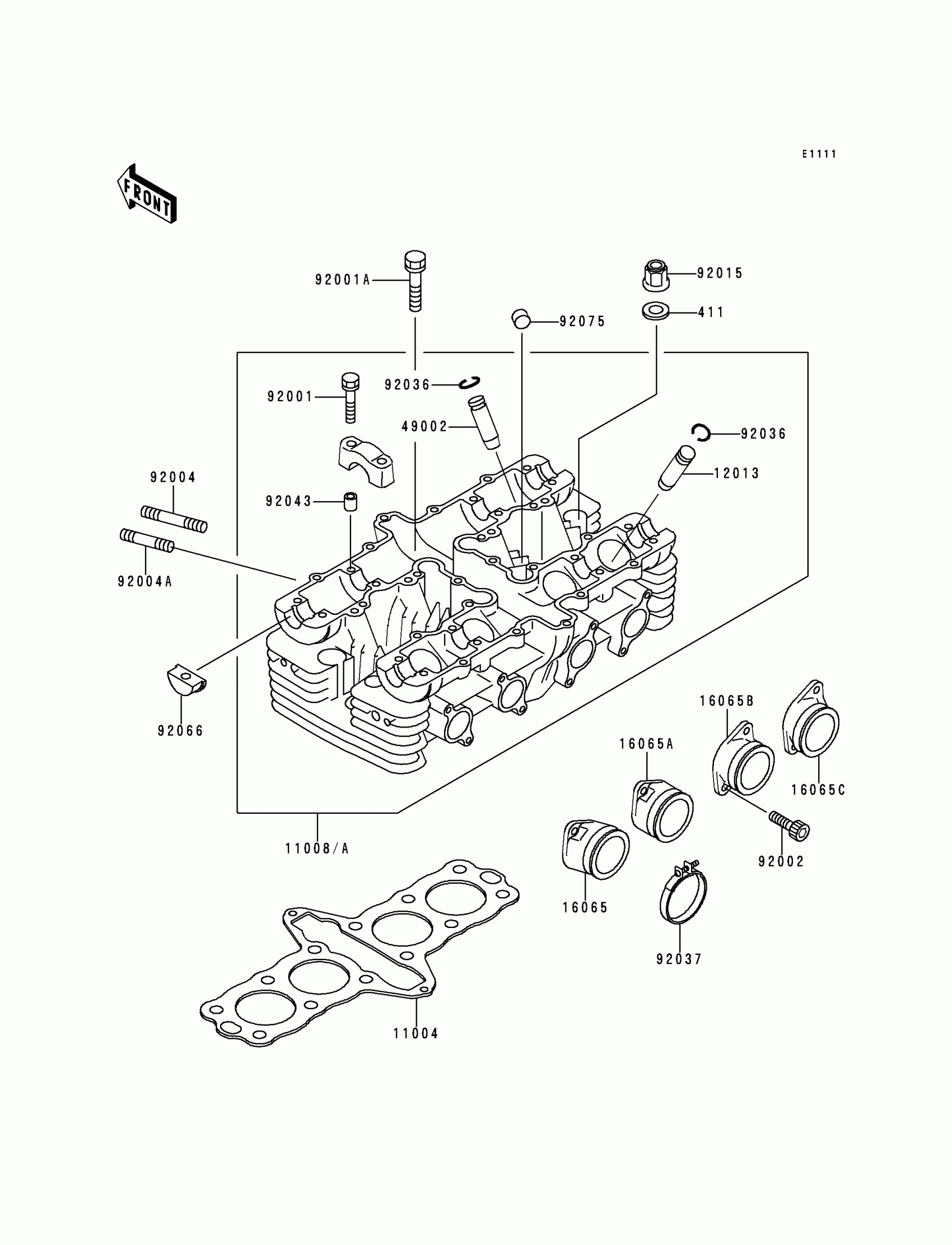

Find the part on the Cylinder Head diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock

11004

1

$117.07

In stock

11008A

HEAD-COMP-CYLINDER

11008-1246

1
Out of stock

12013

GUIDE-VALVE,INTAKE

12013-009

—

$24.29

In stock

16065

HOLDER-CARBURETOR,#1

16065-1226

1
Out of stock

16065A

HOLDER-CARBURETOR,#2

16065-1227

1
Out of stock

16065B

HOLDER-CARBURETOR,#3

16065-1228

1
Out of stock

16065C

HOLDER-CARBURETOR,#4

16065-1229

1
Out of stock

49002

GUIDE-VALVE,EXHAUST

49002-1002

—
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92001A

BOLT,FLANGED,8X43

92001-1445

1
Out of stock

92002

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92004

STUD,8X35

92004-1208

1
Out of stock

92004A

STUD,8X28.5

92004-1209

1
Out of stock

92015

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

92036

1

$0.53

In stock

92037

CLAMP

92037-1326

1

$7.14

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92066

1

$10.12

In stock

92075

DAMPER

92075-182

1

$4.00

In stock
