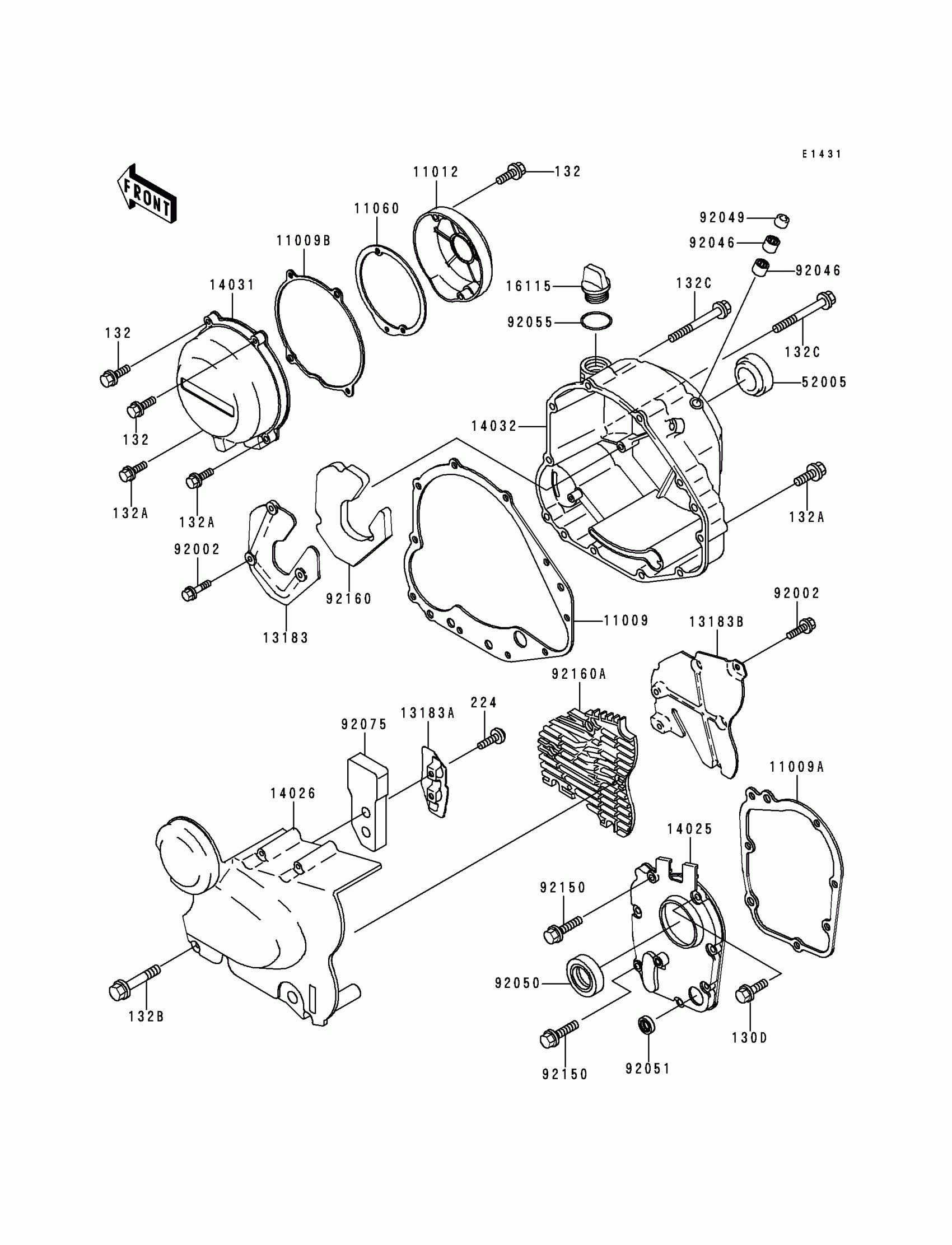

Kawasaki Zephyr 750 Engine Cover Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132A

BOLT-FLANGED-SMALL,6X40

132E0640

Unavailable

132B

BOLT-FLANGED-SMALL

132E0670

Unavailable

132C

BOLT-FLANGED-SMALL

132E0680

$5.10

132D

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

224

SCREW-PAN-WP-CROS

224B0612

Unavailable

11009

GASKET,CLUTCH COVER

11009-1984

$29.18

11009A

GASKET,TRANSMISSION COVER

11009-1985

Unavailable

11009B

GASKET,GENERATOR COVER

11009-1987

$9.61

11012

CAP,PULSING

11012-1759

Unavailable

11060

GASKET,PULSING COIL CAP

11060-1053

$6.19

13183

PLATE,SOUND ARRESTER

13183-1620

$15.54

13183A

PLATE,CHAIN COVER

13183-1621

Unavailable

13183B

PLATE,SOUND ARRESTER

13183-1676

Unavailable

14025

COVER,TRANSMISSION

14025-1605

$112.13

14026

COVER-CHAIN

14026-1165

Unavailable

14031

COVER-GENERATOR

14031-1252

Unavailable

14032

COVER-CLUTCH

14032-1292

$228.26

16115

CAP-OIL FILLER

16115-013

$18.64

52005

GAUGE,OIL LEVEL

52005-1017

Unavailable

92002

BOLT,6X10

92002-1449

$3.68

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$7.08

92050

SEAL-OIL,SC325210

92050-024

$6.23

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,31.5X2.6

92055-049

$3.29

92075

DAMPER,OUTPUT SPROCKET,FR

92075-1178

$28.24

92150

BOLT,6X35

92150-1137

$4.89

92160

DAMPER,SOUND ARRESTER

92160-1246

$37.97

92160A

DAMPER,SOUND ARRESTER

92160-1275

$50.61
