2016 Kawasaki Z800 ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

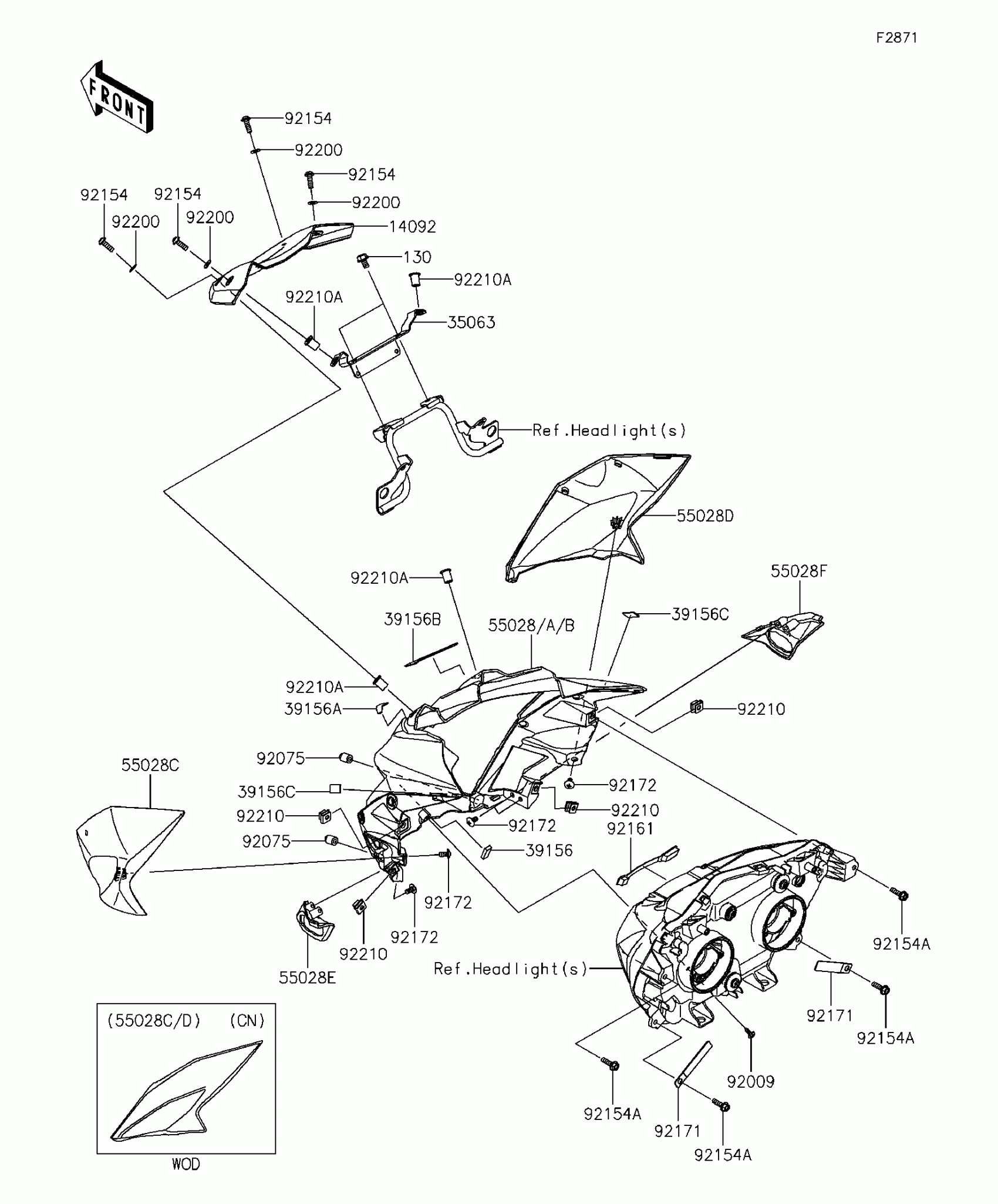

2016 Kawasaki Z800 ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

14092

COVER,METER

14092-0964

1
Out of stock

35063

STAY

35063-0867

1
Out of stock

39156

PAD

39156-0284

1

$1.20

In stock

39156A

PAD

39156-0964

1

$3.92

In stock

39156B

PAD

39156-0965

1

$3.92

In stock

39156C

PAD

39156-0966

1

$1.10

In stock

55028

COWLING,UPP,CNT,F.EBONY

55028-0428-45L

1

$238.21

In stock

55028A

COWLING,UPP,CNT,C.P.BLUE

55028-0428-723

1
Out of stock

55028B

1

$238.21

In stock

55028C

COWLING,UPP,SIDE,LH,M.S.BLACK

55028-0431-660

1
Out of stock

55028D

1

$80.46

In stock

55028E

COWLING,UPP,CNT,LH

55028-0567

1

$11.59

In stock

55028F

COWLING,UPP,CNT,RH

55028-0568

1

$11.59

In stock

92009

SCREW,TAPPING,5X12,BL

92009-1138

1
Out of stock

92075

DAMPER

92075-1964

1

$3.97

In stock

92154

BOLT,SOCKET,5X16

92154-0026

1

$2.10

In stock

92154A

BOLT,FLANGED,5X18

92154-0785

1

$0.85

In stock

92161

1

$4.92

In stock

92171

CLAMP,L=60

92171-0652

1

$2.15

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,5MM

92210-0351

1
Out of stock

92210A

NUT,WELL,5MM

92210-0498

1
Out of stock
