2016 Kawasaki Z800 ABS Frame Fittings Diagram

← All diagrams

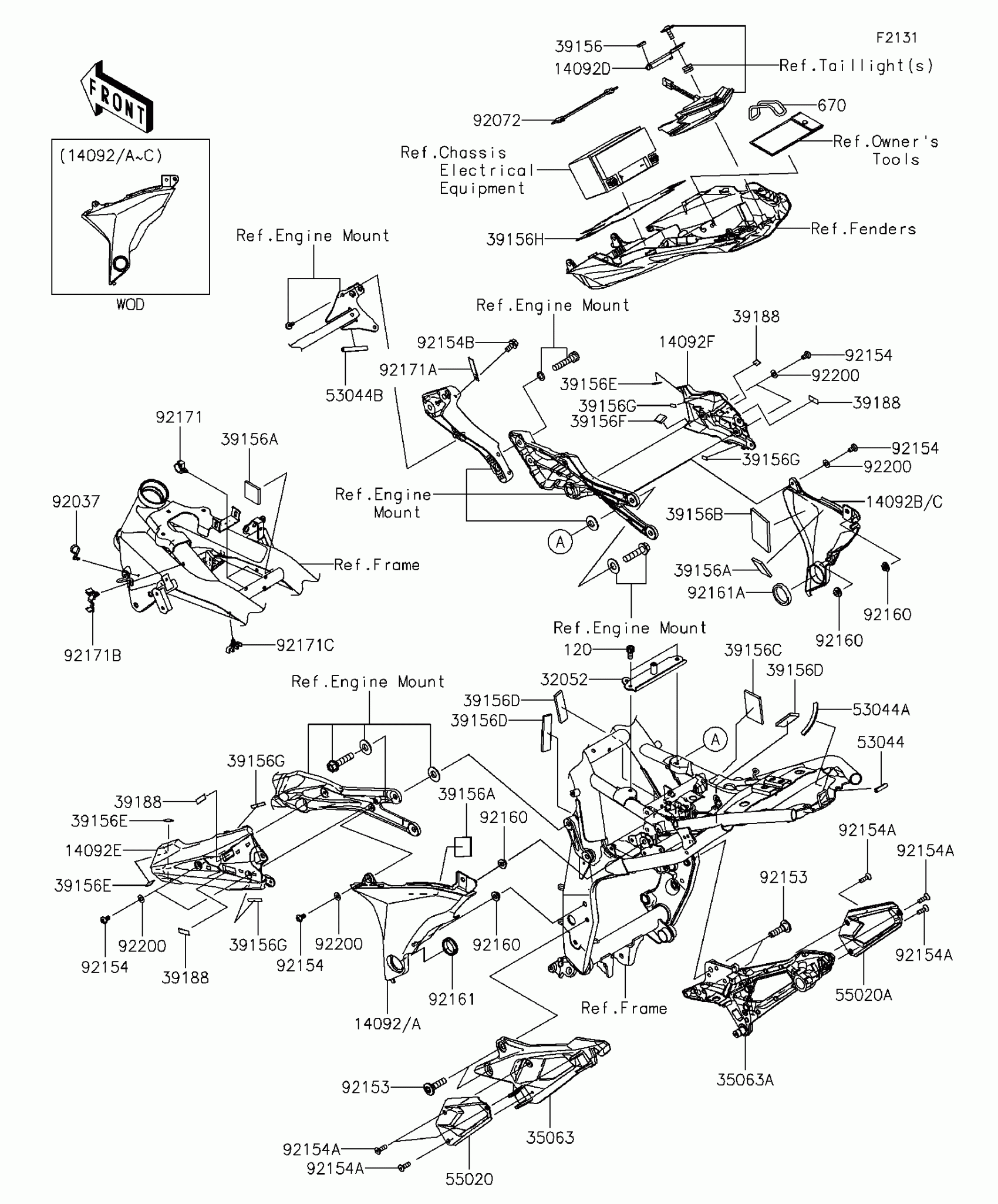

Find the part on the Frame Fittings diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

14092

COVER,PIVOT,LH,F.EBONY

14092-0962-45L

1
Out of stock

14092A

COVER,PIVOT,LH,M.S.BLACK

14092-0962-660

1
Out of stock

14092B

COVER,PIVOT,RH,F.EBONY

14092-0963-45L

1
Out of stock

14092C

COVER,PIVOT,RH,M.S.BLACK

14092-0963-660

1
Out of stock

14092D

COVER,CORD

14092-1055

1
Out of stock

14092E

COVER,SUB FRAME,LH,F.S.BLACK

14092-1093-18T

1
Out of stock

14092F

COVER,SUB FRAME,RH,F.S.BLACK

14092-1094-18T

1
Out of stock

32052

BRACKET-TANK

32052-0723

1
Out of stock

35063

STAY,RR,LH,F.S.BLACK

35063-0863-18R

1
Out of stock

35063A

STAY,RR,RH,F.S.BLACK

35063-0864-18R

1
Out of stock

39156

PAD

39156-0284

1
Out of stock

39156A

PAD

39156-0292

1
Out of stock

39156B

PAD,60X80X5

39156-0951

1
Out of stock

39156C

PAD,40X80X5

39156-0952

1
Out of stock

39156D

PAD,20X80X5

39156-0953

1
Out of stock

39156E

PAD,15X15X1

39156-0960

1
Out of stock

39156F

PAD,18X18X5

39156-0961

1
Out of stock

39156G

PAD,6X35

39156-0967

1
Out of stock

39156H

PAD,CORD COVER

39156-1949

1
Out of stock

39188

TAPE,10X30X0.5

39188-0558

1
Out of stock

53044

TRIM,L=30

53044-0001

1
Out of stock

53044A

TRIM

53044-0018

1
Out of stock

53044B

TRIM,L=60

53044-1249

1
Out of stock

55020

GUARD,HEEL,LH

55020-0842

1
Out of stock

55020A

GUARD,HEEL,RH

55020-0843

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,BATTERY

92072-0741

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1630

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-0215

1
Out of stock

92154A

BOLT,SOCKET,5X16

92154-1014

1
Out of stock

92154B

BOLT,FLANGED,6X12

92154-1050

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0147

1
Out of stock

92161A

DAMPER

92161-0148

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1
Out of stock

92171A

CLAMP,L=60

92171-0652

1
Out of stock

92171B

CLAMP,BRAKE HOSE

92171-0789

1
Out of stock

92171C

CLAMP

92171-1213

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

670

O RING,75MM

670B5075

1
Out of stock
