2016 Kawasaki Z800 ABS Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

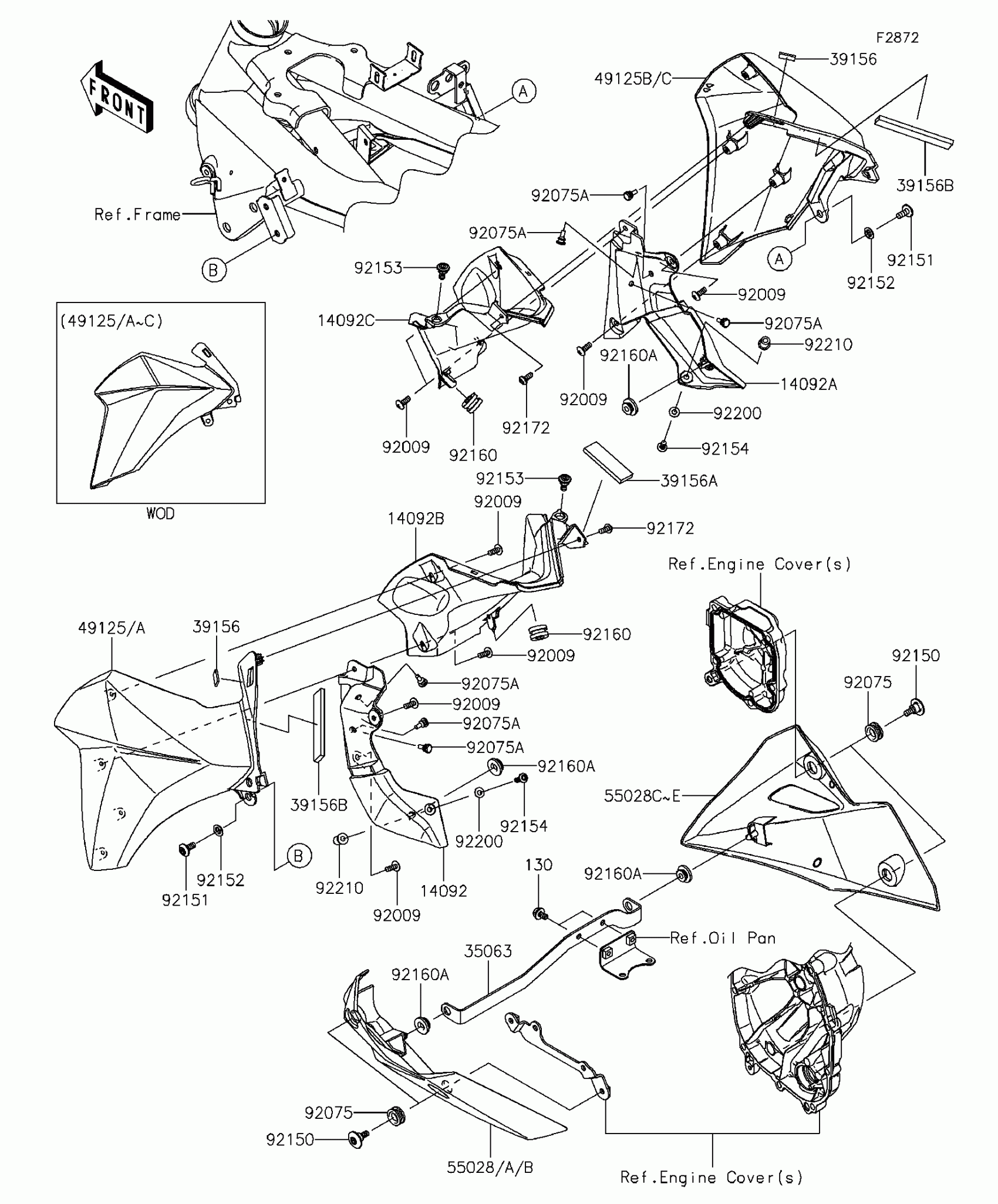

2016 Kawasaki Z800 ABS Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

14092

COVER,RADIATOR,LH

14092-0965

1
Out of stock

14092A

COVER,RADIATOR,RH

14092-0966

1
Out of stock

14092B

COVER,SHROUD,INNER,LH

14092-0967

1
Out of stock

14092C

COVER,SHROUD,INNER,RH

14092-0968

1
Out of stock

35063

STAY,COWLING

35063-0868

1
Out of stock

39156

PAD,HEAT GUARD

39156-0389

1
Out of stock

39156A

PAD,20X60X5

39156-0950

1
Out of stock

39156B

PAD,15X90X5

39156-0975

1
Out of stock

49125

SHROUD,LH,F.EBONY

49125-0584-45L

1
Out of stock

49125A

SHROUD,LH,M.S.BLACK

49125-0584-660

1
Out of stock

49125B

SHROUD,RH,F.EBONY

49125-0585-45L

1
Out of stock

49125C

SHROUD,RH,M.S.BLACK

49125-0585-660

1
Out of stock

55028

COWLING,LWR,LH,F.EBONY

55028-0433-45L

1
Out of stock

55028A

COWLING,LWR,LH,M.G.GRAY

55028-0433-45W

1
Out of stock

55028B

COWLING,LWR,LH,M.S.BLACK

55028-0433-660

1
Out of stock

55028C

COWLING,LWR,RH,F.EBONY

55028-0434-45L

1
Out of stock

55028D

COWLING,LWR,RH,M.G.GRAY

55028-0434-45W

1
Out of stock

55028E

COWLING,LWR,RH,M.S.BLACK

55028-0434-660

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92075A

DAMPER,6X10X15

92075-1808

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1154

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6.4X8X3.3

92152-1702

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-1956

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0026

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92160A

DAMPER

92160-1613

1
Out of stock

92172

SCREW,SOCKET,5X14

92172-0823

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock
