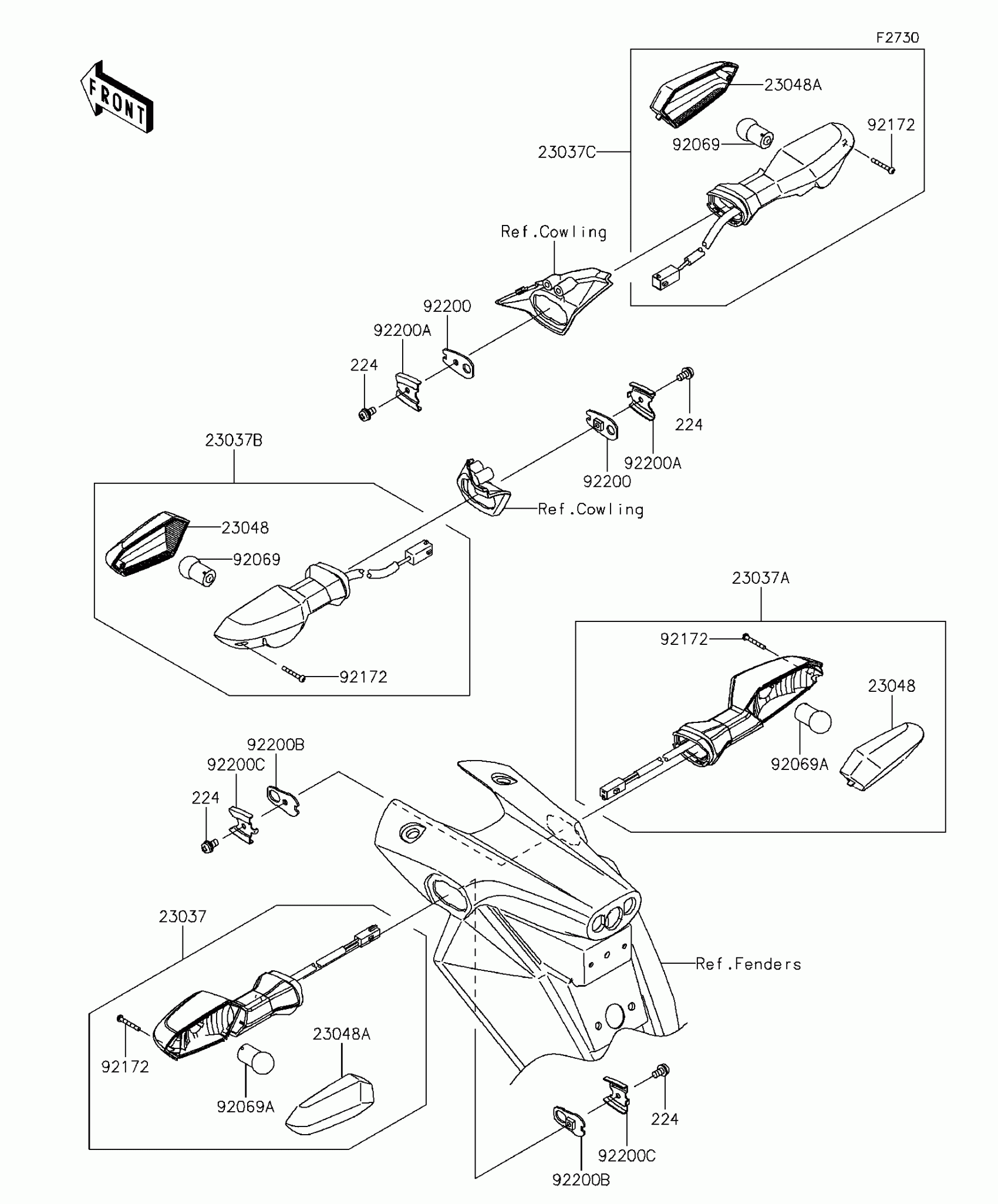

Kawasaki Z800 ABS Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$2.79

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0304

$56.16

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0305

$56.16

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0310

$58.24

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0311

$58.24

23048

LENS-SIGNAL LAMP

23048-0025

$11.98

23048A

LENS-SIGNAL LAMP

23048-0026

$11.98

92069

BULB,12V 10W

92069-0058

$5.90

92069A

BULB,12V 10W

92069-0076

$3.16

92172

SCREW,2.9X22

92172-0395

$3.27

92200

WASHER,SIGNAL LAMP

92200-0164

$3.01

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.01

92200B

WASHER,NUT 4MM

92200-0854

$2.31

92200C

WASHER

92200-0855

$1.44
