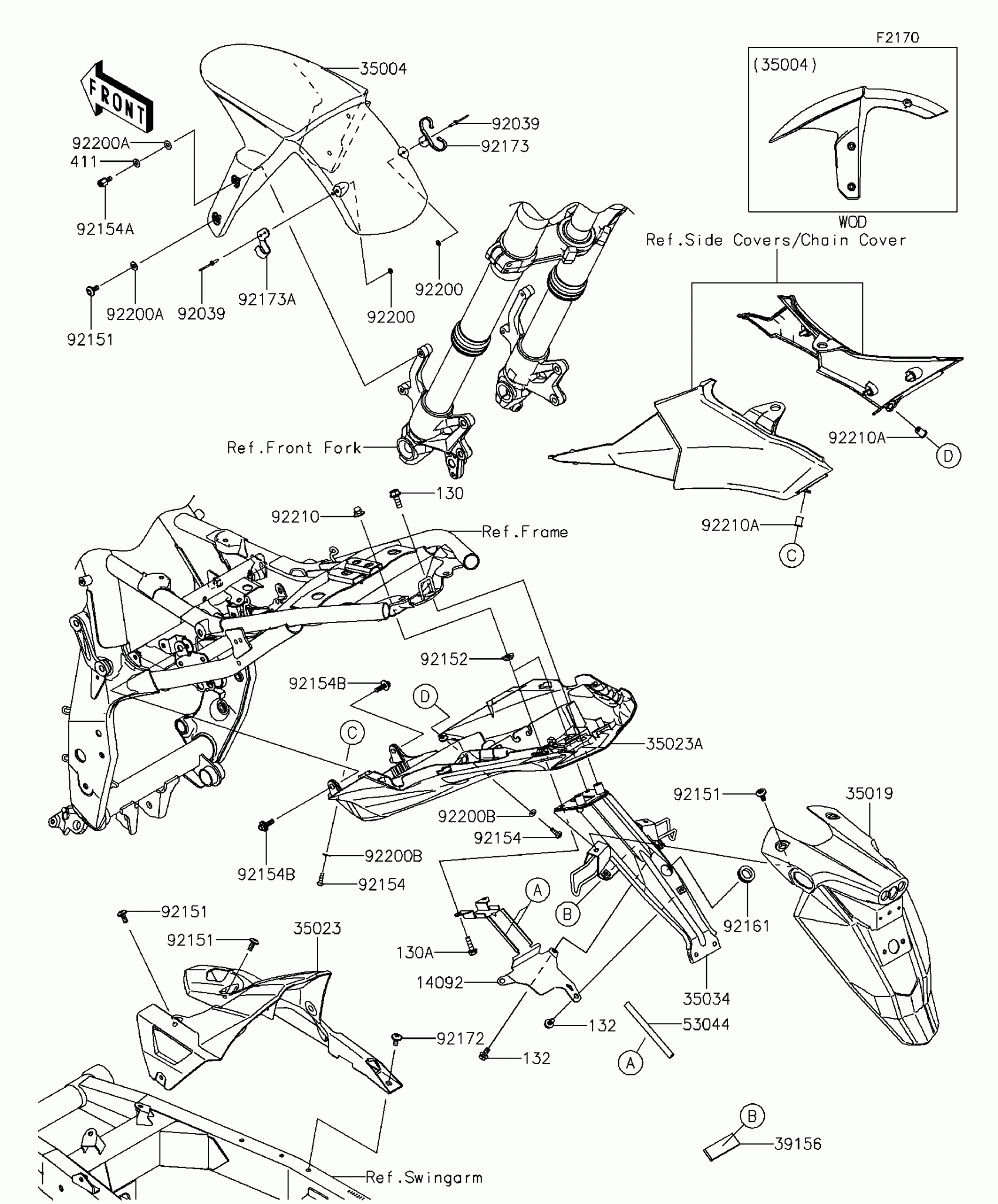

2016 Kawasaki Z800 ABS Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X18

130BA0618

1
Out of stock

130A

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

14092

COVER,HARNESS

14092-0996

1
Out of stock

35004

FENDER-FRONT,M.S.BLACK

35004-0322-660

1
Out of stock

35019

FLAP,RR

35019-0556

1
Out of stock

35023

FENDER-REAR,INNER

35023-0343

1
Out of stock

35023A

FENDER-REAR

35023-0375

1
Out of stock

35034

REINFORCE

35034-0580

1
Out of stock

39156

PAD,20X60X5

39156-0950

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock

53044

TRIM

53044-0564

1
Out of stock

92039

RIVET

92039-1231

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6MM

92152-1705

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0026

1
Out of stock

92154A

BOLT,6MM

92154-0746

1
Out of stock

92154B

BOLT,FLANGED,6X20

92154-1268

1
Out of stock

92161

DAMPER

92161-0765

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92173

CLAMP,FR FENDER,RH

92173-0937

1
Out of stock

92173A

CLAMP,FR FENDER,LH

92173-0972

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock

92200A

WASHER,6.5X14X1

92200-1388

1
Out of stock

92200B

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,CAP,6MM

92210-0170

1
Out of stock

92210A

NUT,WELL,5MM

92210-0498

1
Out of stock
