2016 Kawasaki Z800 ABS Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

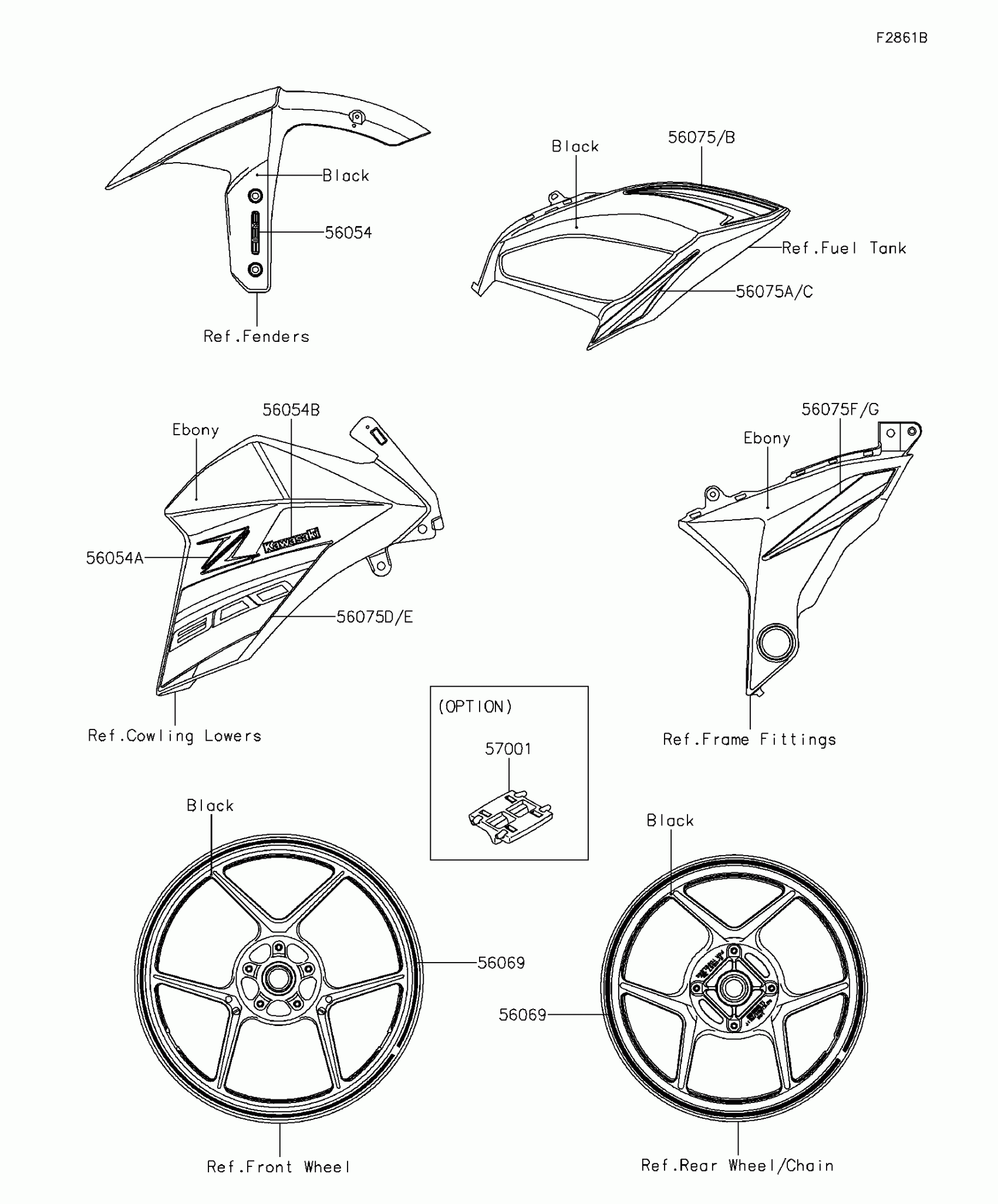

2016 Kawasaki Z800 ABS Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56054

MARK,ABS

56054-1413

1

$30.97

In stock

56054A

MARK,SHROUD,Z

56054-1914

1

$51.33

In stock

56054B

1

$2.53

In stock

56069

1

$30.43

In stock

56075

1

$67.39

In stock

56075A

1

$39.20

In stock

56075B

1

$67.39

In stock

56075C

1

$39.20

In stock

56075D

PATTERN,SHROUD,LH

56075-1201

1

$67.39

In stock

56075E

PATTERN,SHROUD,RH

56075-1202

1

$67.39

In stock

56075F

1

$39.20

In stock

56075G

1

$39.20

In stock

57001

—

$17.95

In stock
